Configuring a custom look of the login screen - Xerox

Some devices (i.e. Versalink series) may not support this configuration option.

It is possible to configure what a Xerox MFD displays on the login screen. For example, an administrator might use this to display the company logo and environment-specific user authentication instructions including contact to an internal help desk. This is a feature of the Xerox devices themselves.

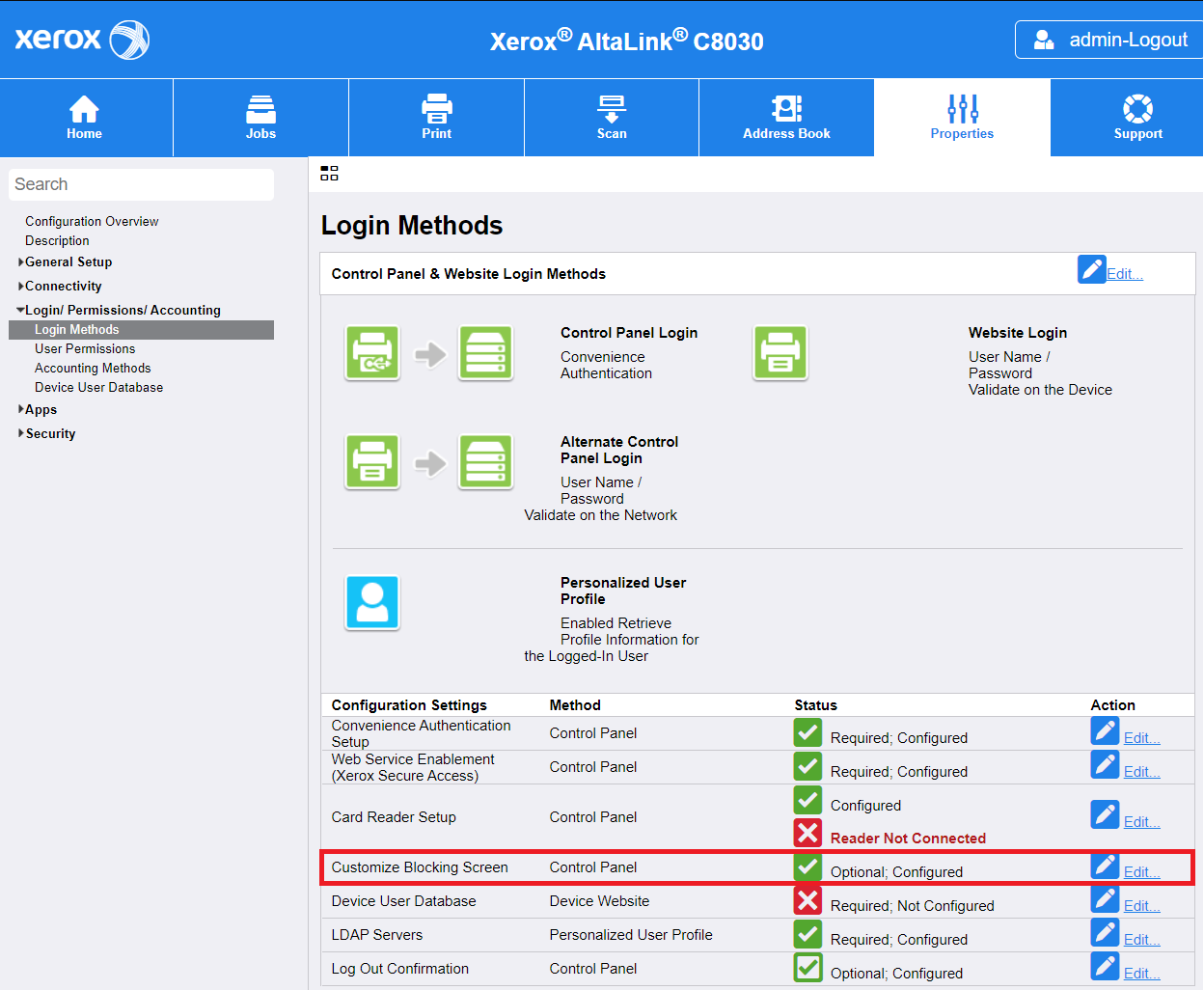

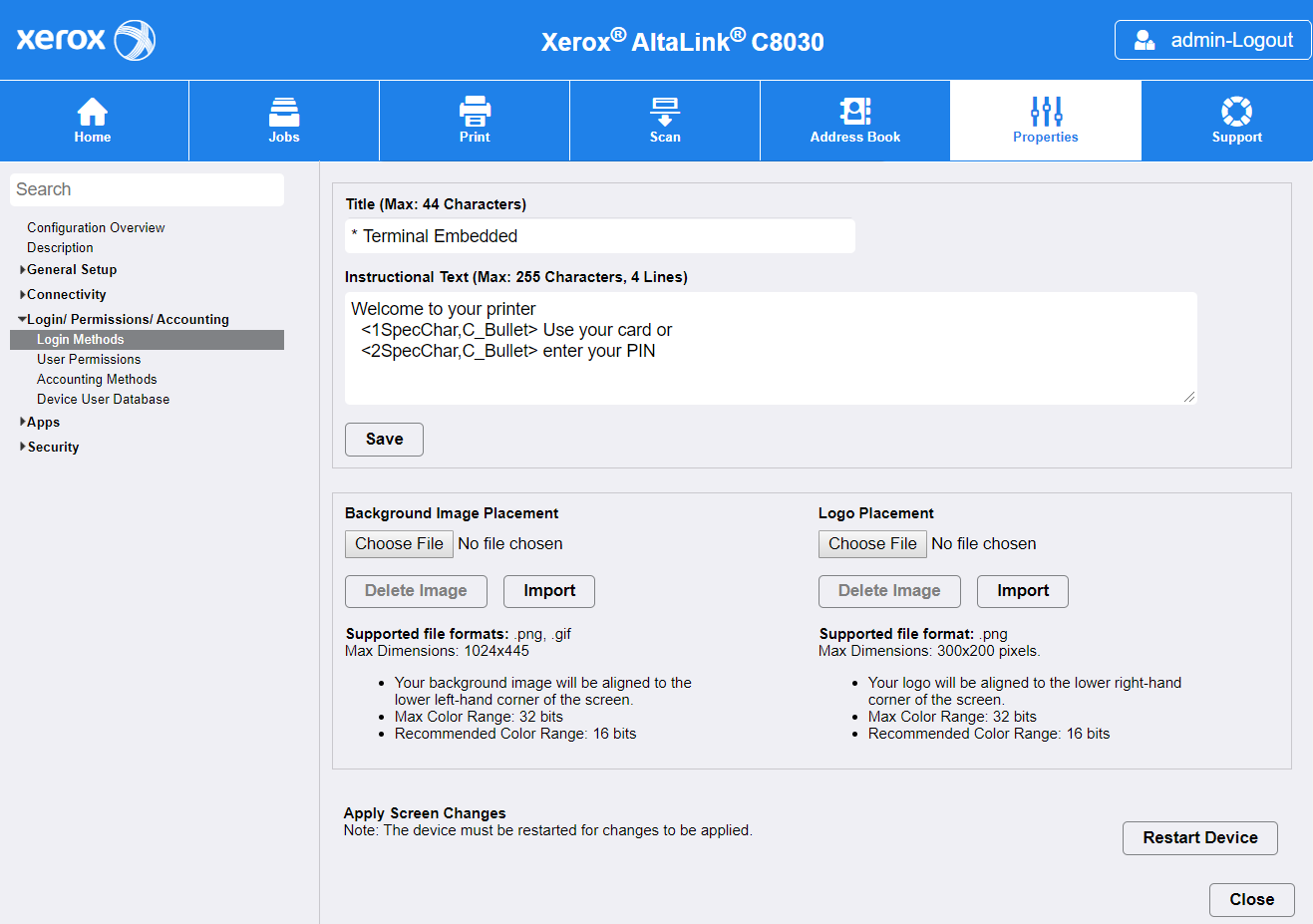

Configuration pages can be found on Properties → Login / Permissions / Accounting → Login Methods page in Customize blocking screen section.

customize-blocking-screen.png customize-blocking-screen-detail.png

Scroll conditional content Dispatcher Paragon  configures its own Title and Instructional Text on the login screen when you install a Xerox embedded terminal. ipm Scroll conditional content YSoft SafeQ  configures its own Title and Instructional Text on the login screen when you install a Xerox embedded terminal. ysoft_safeq

However, in the default configuration, any manual changes made to these fields are overwritten any time a user selects a different language on the device, or the first time a user logs in after a server restart. This is done so that users can see login instructions in their own language. To customize the look, the administrator has two options:

  • Take advantage of a configuration option in YSoft SafeQ that allows defining custom Title and Instructional Text, or

  • Configure the custom look after terminal installation using Xerox tools, and disable the screen overwriting in YSoft SafeQ.

How to configure a custom Title and Instructional Text on the login screen

[data-colorid=yqahvlxsnu]{color:#373a3c} html[data-color-mode=dark] [data-colorid=yqahvlxsnu]{color:#c3c6c8}[data-colorid=messbz3h6e]{color:#373a3c} html[data-color-mode=dark] [data-colorid=messbz3h6e]{color:#c3c6c8}[data-colorid=b4z6zns0aa]{color:#373a3c} html[data-color-mode=dark] [data-colorid=b4z6zns0aa]{color:#c3c6c8} Scroll conditional content Use the configuration property authenticationScreenTitle, welcome-to-safeq-text and authenticationScreenInformation in Dispatcher Paragon System Configuration, in the Terminal UI category. ipm [data-colorid=x6ci3s0ma9]{color:#373a3c} html[data-color-mode=dark] [data-colorid=x6ci3s0ma9]{color:#c3c6c8}[data-colorid=nbgm03bwvl]{color:#373a3c} html[data-color-mode=dark] [data-colorid=nbgm03bwvl]{color:#c3c6c8}[data-colorid=s5y1rbmqvj]{color:#373a3c} html[data-color-mode=dark] [data-colorid=s5y1rbmqvj]{color:#c3c6c8} Scroll conditional content Use the configuration property authenticationScreenTitle, welcome-to-safeq-text and authenticationScreenInformation in YSoft SafeQ System Configuration, in the Terminal UI category. ysoft_safeq

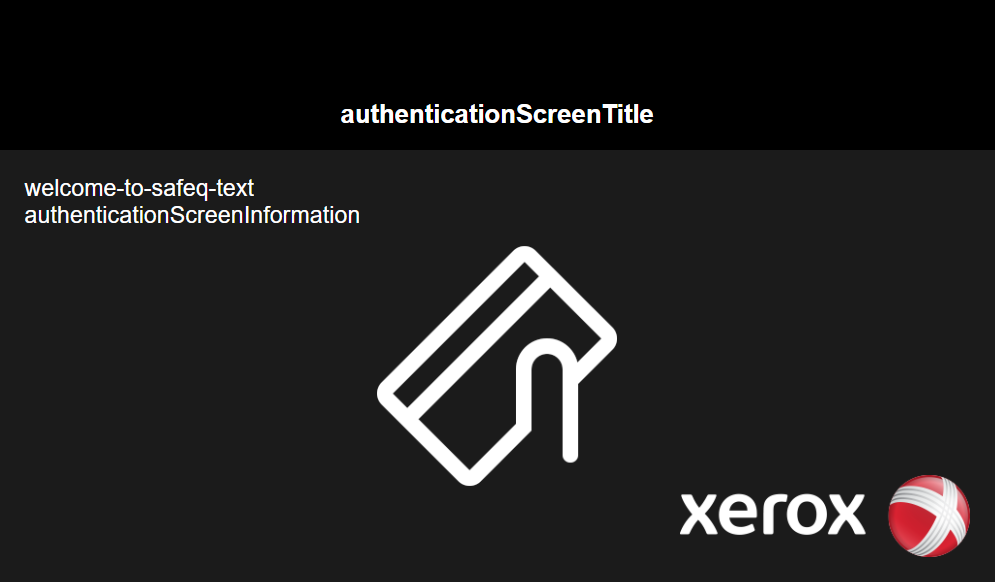

  • authenticationScreenTitle is placed on the top of authentication screen and is limited by device to 44 characters.

  • welcome-to-safeq-text is placed as the first line, authenticationScreenInformation as the next lines of Instructional text. Most Xerox devices allow usage of some basic HTML formatting like <b>, <br>, <font color=""> etc. Please keep in mind, that total length of text from both properties is limited by device to 255 characters.

For compatibility reasons welcome-to-safeq-text configuration property has to be filled to allow usage of authenticationScreenInformation.

How to disable login screen overwriting

Add the configuration property keepCustomXeroxLoginScreen with the value "true" to the <spoc_folder>\terminalserver\TerminalServer.exe.config configuration file (usually C:\<installation directory>\SPOC\terminalserver\TerminalServer.exe.config).
