Scroll conditional content This document describes Dispatcher Paragon Embedded Terminal for Konica Minolta - 2nd Gen. for scan application. It is an alternative to Dispatcher Paragon Embedded Terminal for Konica Minolta - Native. ipm Scroll conditional content This document describes YSoft SafeQ Embedded Terminal for Konica Minolta - 2nd Gen. for scan application. It is an alternative to YSoft SafeQ Embedded Terminal for Konica Minolta - Native. ysoft_safeq
Workflow scanning
Log in to the embedded terminal.
Scroll conditional content On the Main Menu screen, tap Scan ipm Scroll conditional content On the Main Menu screen, tap Scan ysoft_safeq
You may be redirected directly to the Scan application. In that case, skip this step.

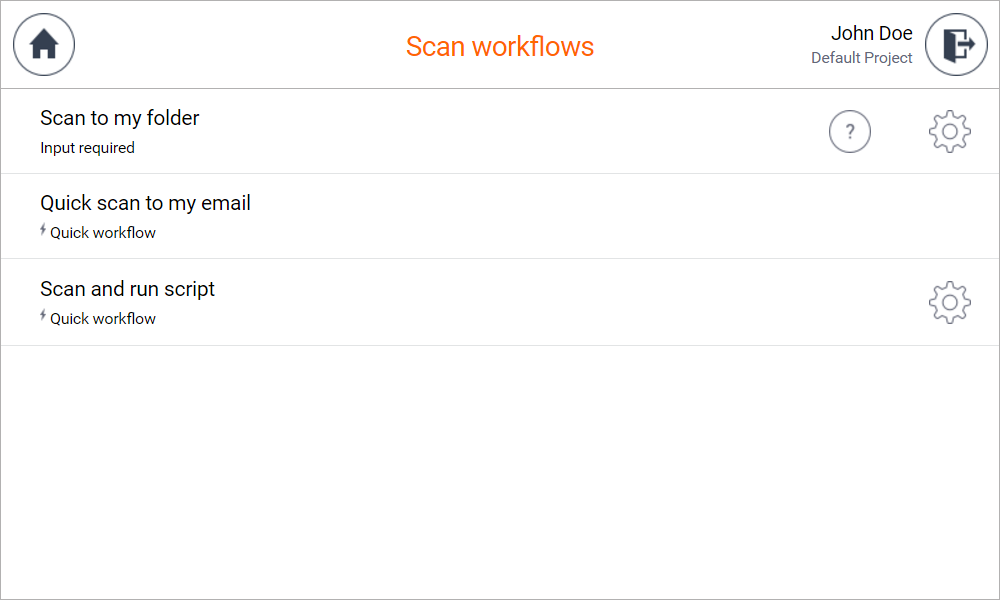

There were errors rendering macro: An unknown error occurred. Scroll conditional content Select a scan workflow you want to execute. Some of the workflows are marked as Quick and are executed directly from the workflows screen by tapping on the workflow. The other workflows need additional parameters to be entered and tapping on the workflow redirects you to a workflow detail screen. ysoft_safeq

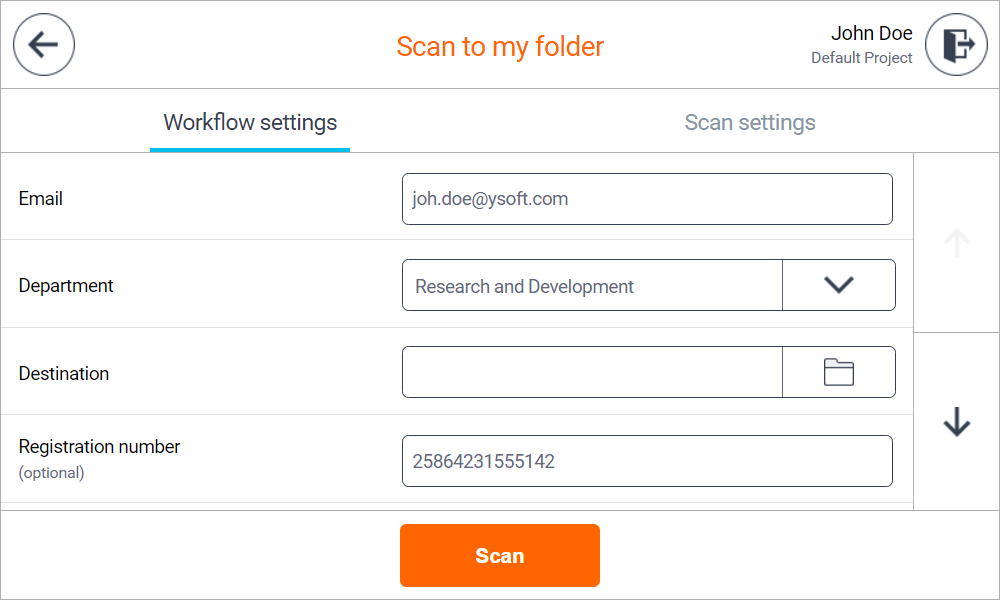

In workflow detail screen, you can enter additional workflow parameters.
There were errors rendering macro: An unknown error occurred. There were errors rendering macro: An unknown error occurred.

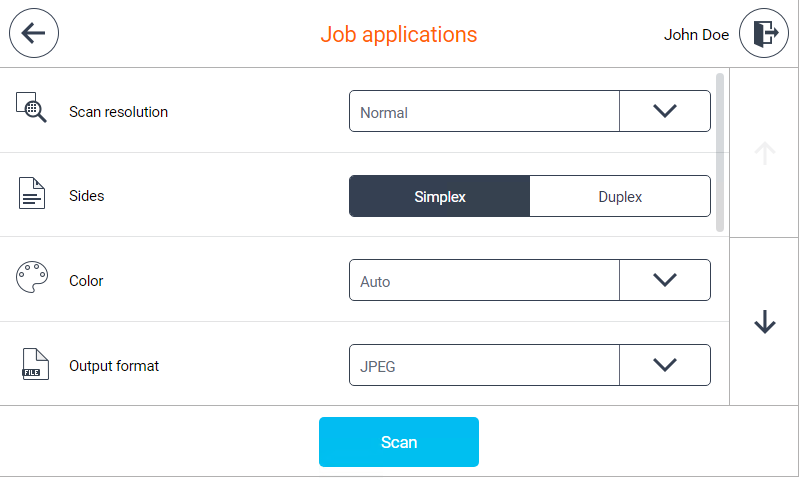

The workflow configuration might not allow to configure scan or workflow settings. In that case, the tab is not shown.

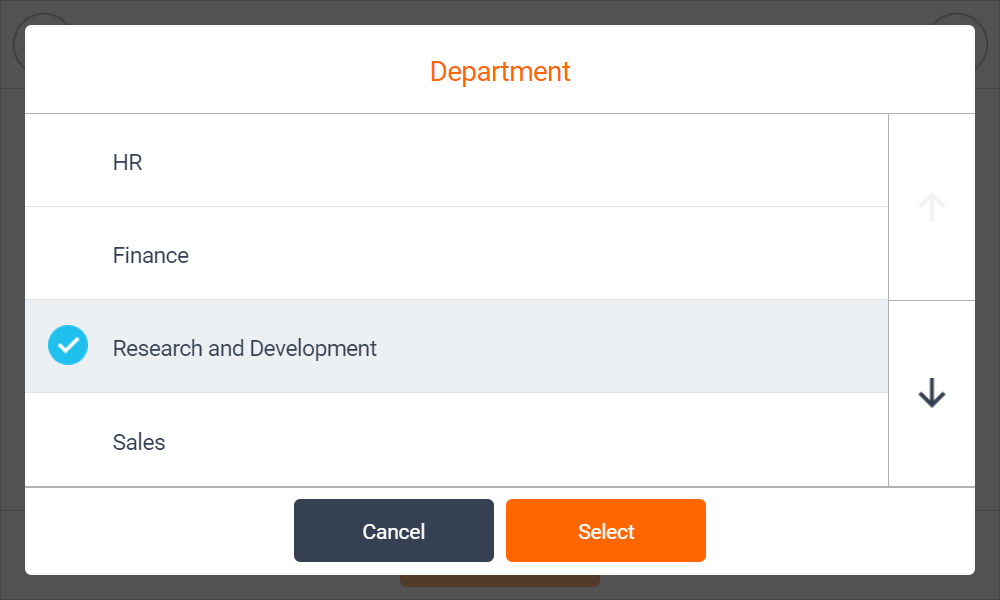

Some of the parameters allow you to browse folders or lists of available options. Tapping such parameter opens a new dialog for value selection.
Email parameters allow you to search for an email address. See this page for details:
When you are ready, tap the Scan button to initialize the scan job.

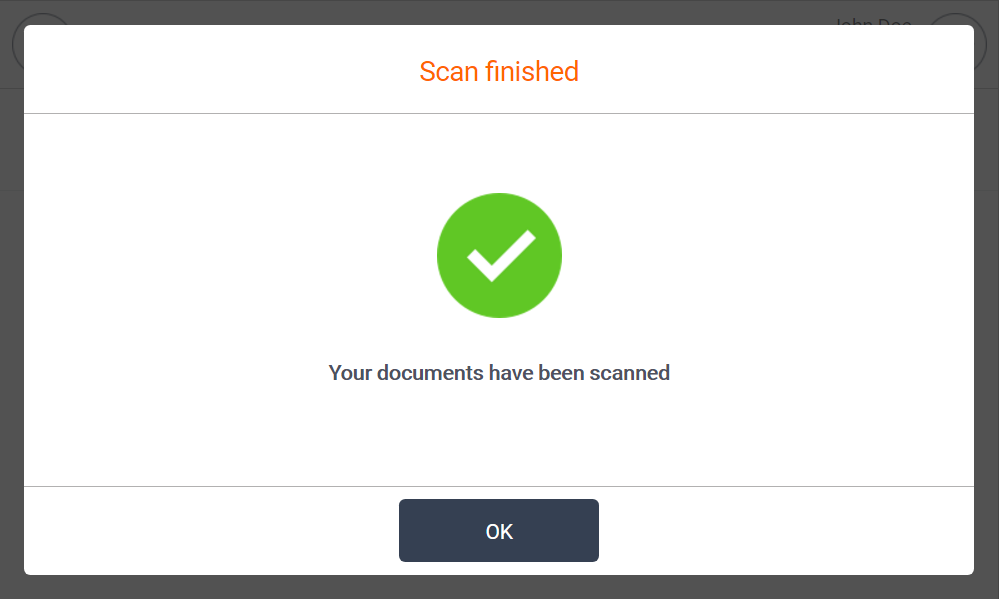

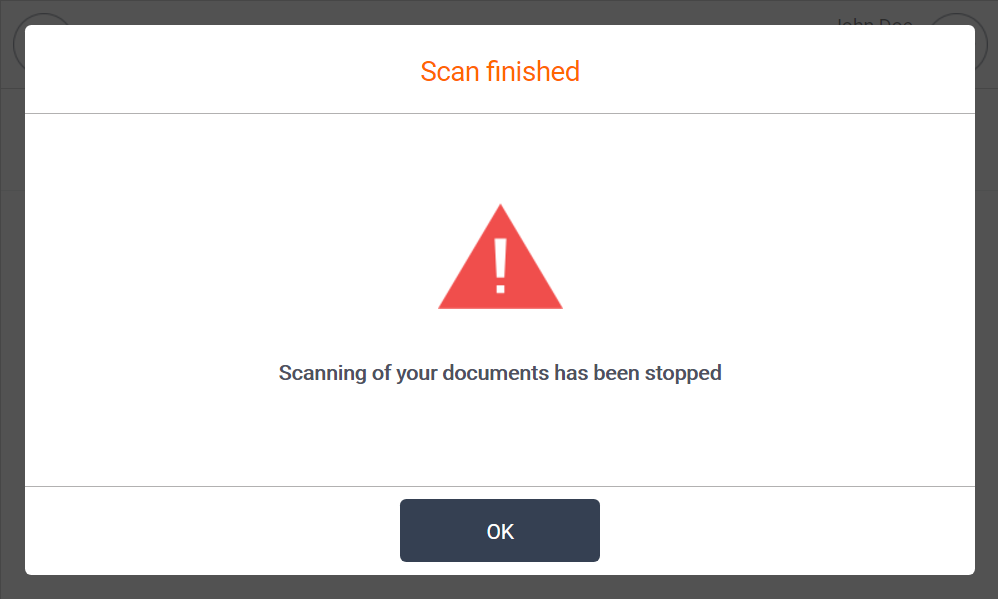

Error rendering macro 'scroll-conditional-content' : Page loading failed Scroll conditional content When scanning is finished, you get information about the result. If there were no problems, you get information about scan success.If scan did not finish successfully, you get information about scan stopped. ysoft_safeq
