Accessing and Logging in at an Epson Device

This document describes YSoft SafeQ Terminal Application - 2nd Gen. for authentication. It is an alternative to YSoft SafeQ Terminal Application - 1st Gen.

Logging In with a PIN

  1. Enter your PIN.

  2. Tap Login.

PIN auth.png

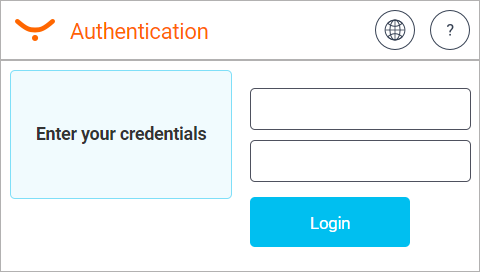

Logging in with a username/password

  1. Enter your username.

  2. Enter your password.

  3. Tap Login.

cred auth.png

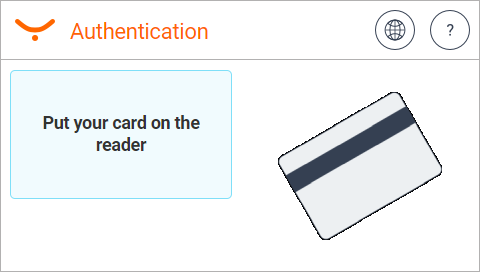

Logging in with a card

  1. Put your card on the reader attached to the printer.

card auth.png

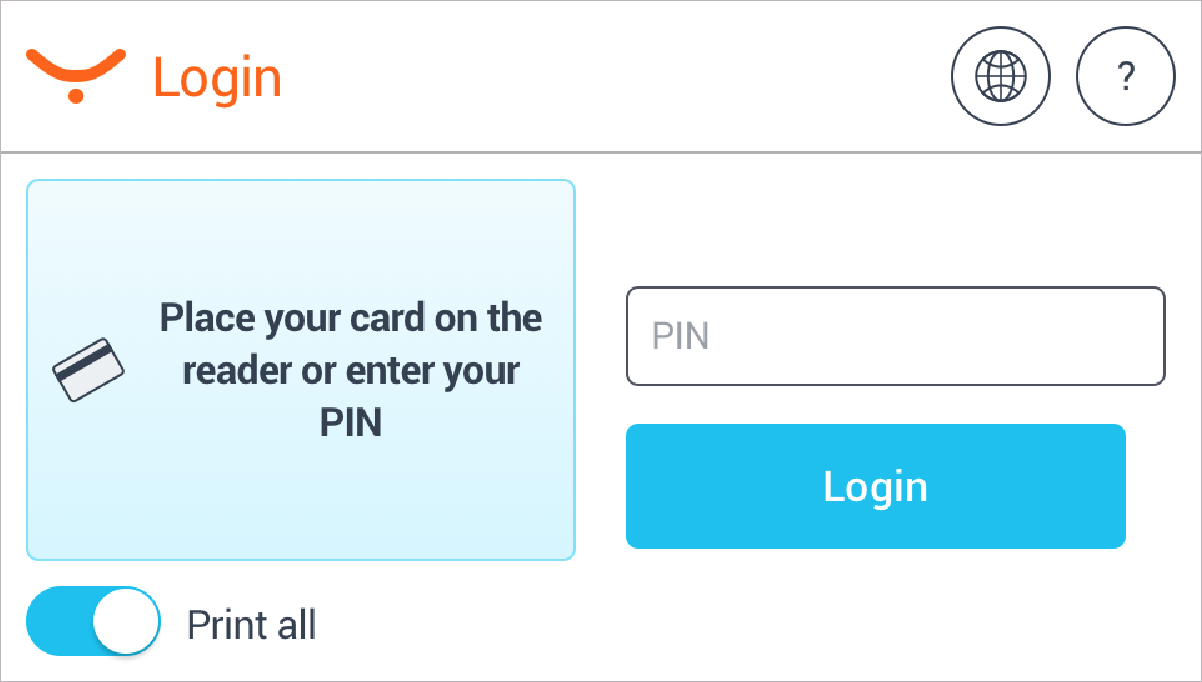

Logging in with a card or a PIN (username/password)

  1. Put your card on the reader attached to the printer.

  2. Or enter your PIN (username/password) and tap Login.

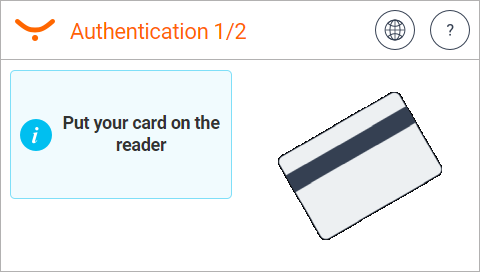

Logging in with a card and a PIN (username/password)

  1. Put your card on the reader attached to the printer and continue to the next step.

PINnCard auth.png

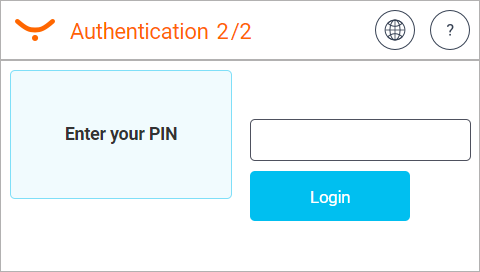

2. Enter your PIN (username/password).

3. Tap Login.

PINnCard2 auth.png

Logging out

There are three options for logging out:

  1. To log out, press the Logout button (highlighted in the image) on the printer panel.


  1. Or to log out from the application, tap the icon Log out (highlighted in the image) on the printer display.


  1. Or put your card on the reader attached to the printer (if the terminal uses authentication by card).

Display Help

  1. Tap the icon Help_button.png and the help dialog is displayed.

  2. Tap OK and the Help dialog is hidden.

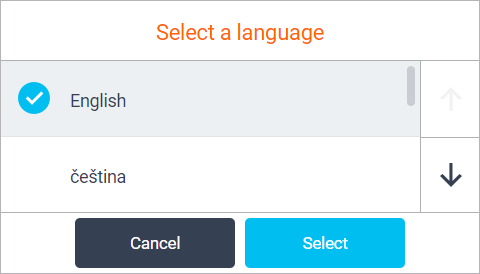

Select Language

  1. Tap the icon Select_language_button.png and the Select a language dialog is displayed.

  2. Select the language and tap Select. The Select a language dialog is hidden.
