Configuring MS SQL for SSL/TLS

  1. Provide a private key and certificate (.key and .crt files) on both machines.

  2. Configure any non-server clients to trust the certificate's root signing authority. For more information please see: https://learn.microsoft.com/en-us/sql/database-engine/configure-windows/configure-sql-server-encryption?view=sql-server-ver17

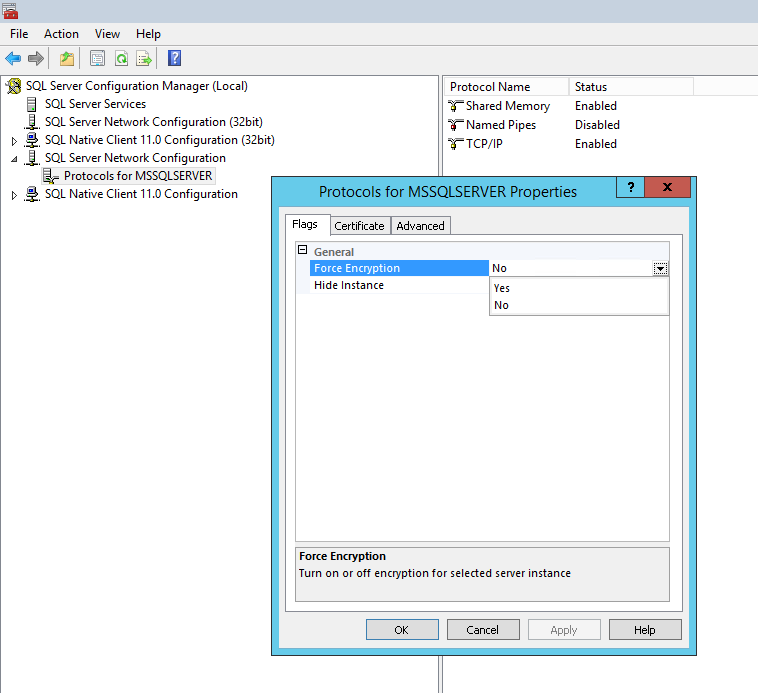

  3. Configure the server(s) to force all incoming connections to use SSL/TLS so that any clients that do not support this will fail to connect. In SQL Server Configuration Manager, set the ForceEncryption parameter to "Yes" in the Protocols section.


This solution is not bullet-proof. The database links are generally a potential security risk, when the user permissions are not configured properly and e.g. xp_cmdshell with admin rights is accessible on some of the database nodes. For more information please refer to https://blog.netspi.com/how-to-hack-database-links-in-sql-server/.

For more information how to create a certificate please see the chapter System communication hardening

Adding the MSSQL certificate to YSoft SafeQ 6

After configuring SSL/TLS on the MSSQL server, the certificate must be trusted by SafeQ6.

In order to get a fully secured MSSQL connection via certificate, build 117 or above is mandatory.

From version 117 and above: The installer imports the certificate automatically. Have the exported certificate (.cer) ready when running the installation.

Manual import (existing installations on v117+)

Use the keytool command to import the certificate into the SafeQ6 ssl-truststore:

C:\JDK\openjdk21\bin> keytool -importcert -alias mssql-cert -file <PATH_TO_CERT> -keystore <PATH_TO_TRUSTSTORE> -storepass <TRUSTSTORE_PASSWORD> -noprompt

Restart the YSoft SafeQ Management Service after importing the certificate.

Configuration in management-service.properties

After importing the certificate, add or update the following properties in

C:\SafeQ6\Management\conf\management-service.properties:

database.msSql.encrypt = true
database.msSql.trustServerCertificate = false
database.msSql.trustStorePath = C:/SafeQ6/Management/conf/ssl-truststore

For full reference of database configuration properties see YSoft SafeQ Server Requirements - Database Settings and Configuration.
