Konica Minolta IWS Cloud Terminal

Contents

• Hardware requirements and prerequisites
• Konica Minolta printer setup

• SAFEQ Cloud Configuration for IWS

• How to install using the IWS Install Tool

• KM IWS Application overview

KM printer hardware requirements

• 5th generation or higher for the printer
• Extended memory module
• Chromium browser
• Function version 4.2 or higher
• IWS version 2.5.6 or higher

Prerequisites

• Ports 7301 and 9444 are open. See Ports and Protocols for more information.
• You have configured your secondary gateway. See Secondary Gateway mapping.

KM printer setup

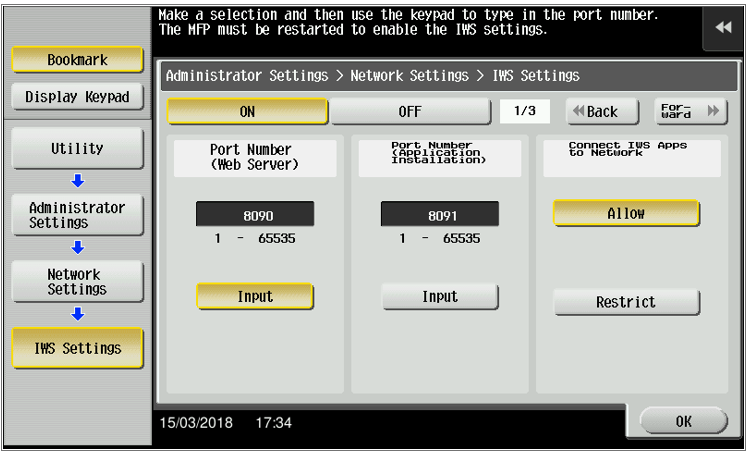

1. The IWS setting must be turned ON:
Utility → Administrator Settings → Network Settings → IWS Settings → ON

This is the screen for the newer models:

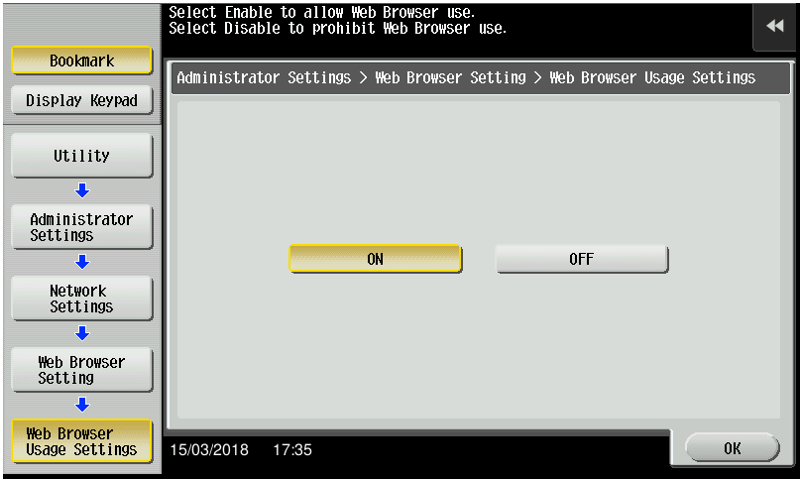

2. The Web browser must be turned ON:
Utility → Administrator Settings → Network Settings → Web Browser Setting → Web Browser Usage Settings → ON

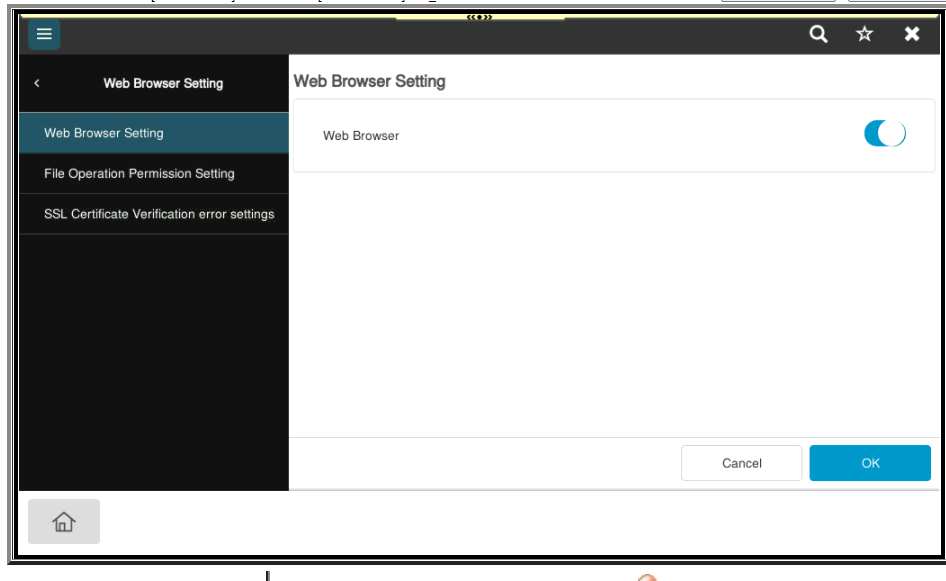

This is the screen for the newer models:

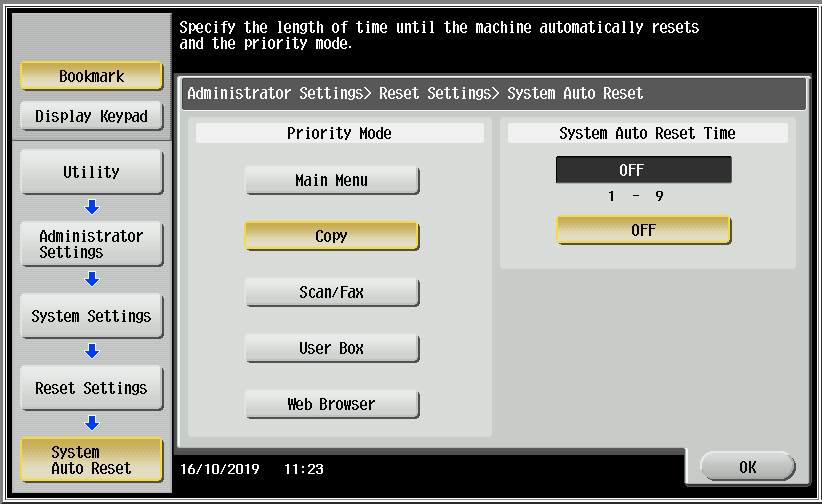

3. Disable System Auto Reset:
Utility → Administrator Settings → System Settings → Reset Settings → System Auto Reset → OFF

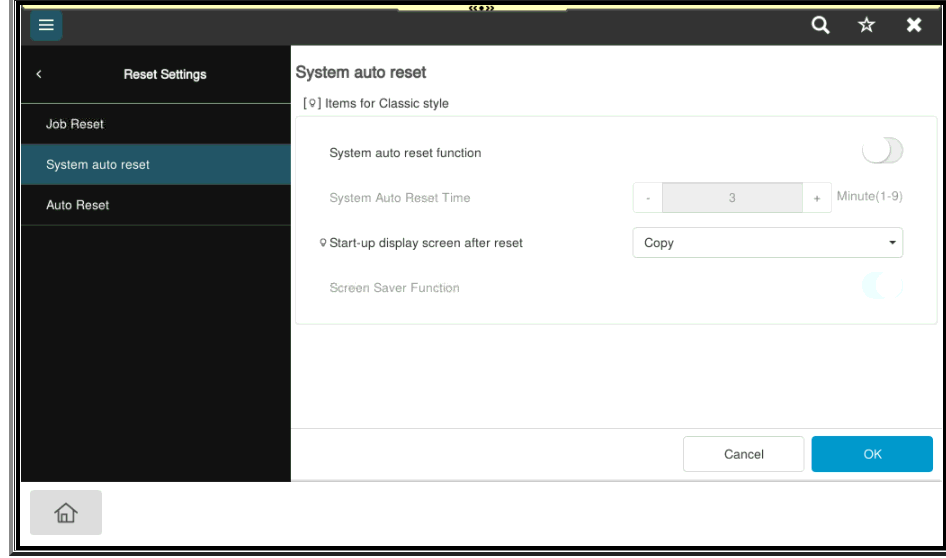

This is the screen for the newer models:

4. The Slider Menu should be turned OFF:
Utility → Administrator Settings → System Settings → Custom Display Settings → Slider Menu Settings

Next steps SAFEQ Cloud Configuration for IWS
