Basic Architecture

YSoft SafeQ Spooler is a new job spooling component different from YSoft SafeQ FlexiSpooler it is designed to be cross-platform and include the YSoft SafeQ UI - a new UI experience for the user.

Spooler consists of:

  • YSoft.SafeQ.Spooler service: service/daemon that has similar functionalities to YSoft SafeQ FlexiSpooler service,

  • YSoft.SafeQ.SafeQ UI process: a new cross-platform UI experience for the user substituting existing YSoft SafeQ Desktop Interface.

In order for YSoft SafeQ Spooler to function with existing YSoft SafeQ 6 deployments it needs a server counter-part (a connector to rest of YSoft SafeQ 6 components if you will), we call this component YSoft SafeQ Job Service. In the future YSoft SafeQ Job Service will be used for many more functionalities and has part in a broader architecture revisioning.

YSoft SafeQ  Job Service

Job Service has following responsibilities:

  • Handles connection with spoolers

  • Manages job metadata between Spooler Controller and Spooler

  • Communicates with Spooler Controller using YMQ

  • Hosts IdentityServer to allow Spooler authentication

  • Provides distributed layer which contains Job id x Spooler id mapping and Spooler id x Job Service id mapping

  • Sends a configuration file to update the Site Server list in Spooler

Diagrams

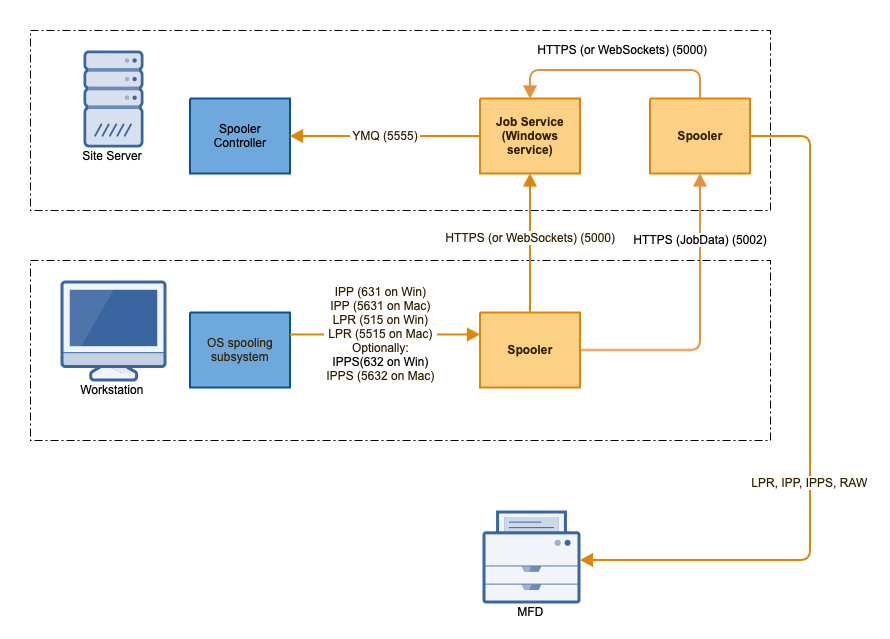

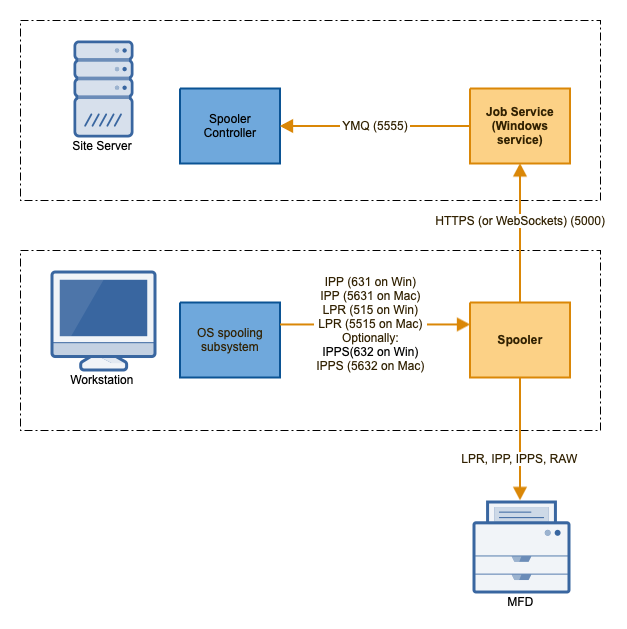

YSoft SafeQ Spooler and YSoft SafeQ Job Service with respect to rest of YSoft SafeQ 6

Oops, Diagram Unavailable

This diagram can't be displayed. It may have been moved or deleted, or the page's access settings may be preventing it from loading. Pages with restricted access must also include Gliffy Diagrams in their allowed list.

Oops, Diagram Unavailable

This diagram can't be displayed. It may have been moved or deleted, or the page's access settings may be preventing it from loading. Pages with restricted access must also include Gliffy Diagrams in their allowed list.

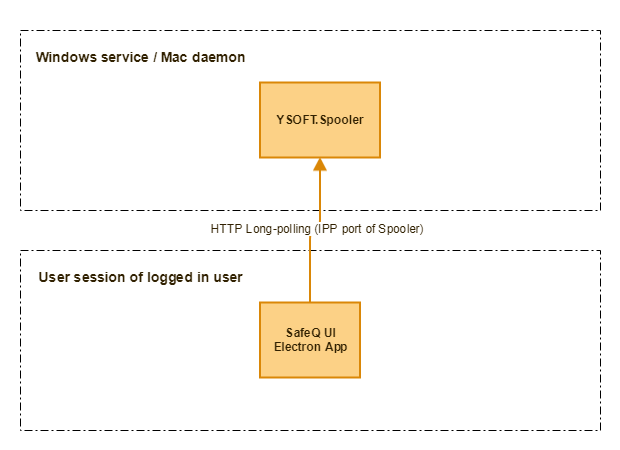

YSoft SafeQ Spooler in detail

Oops, Diagram Unavailable

This diagram can't be displayed. It may have been moved or deleted, or the page's access settings may be preventing it from loading. Pages with restricted access must also include Gliffy Diagrams in their allowed list.

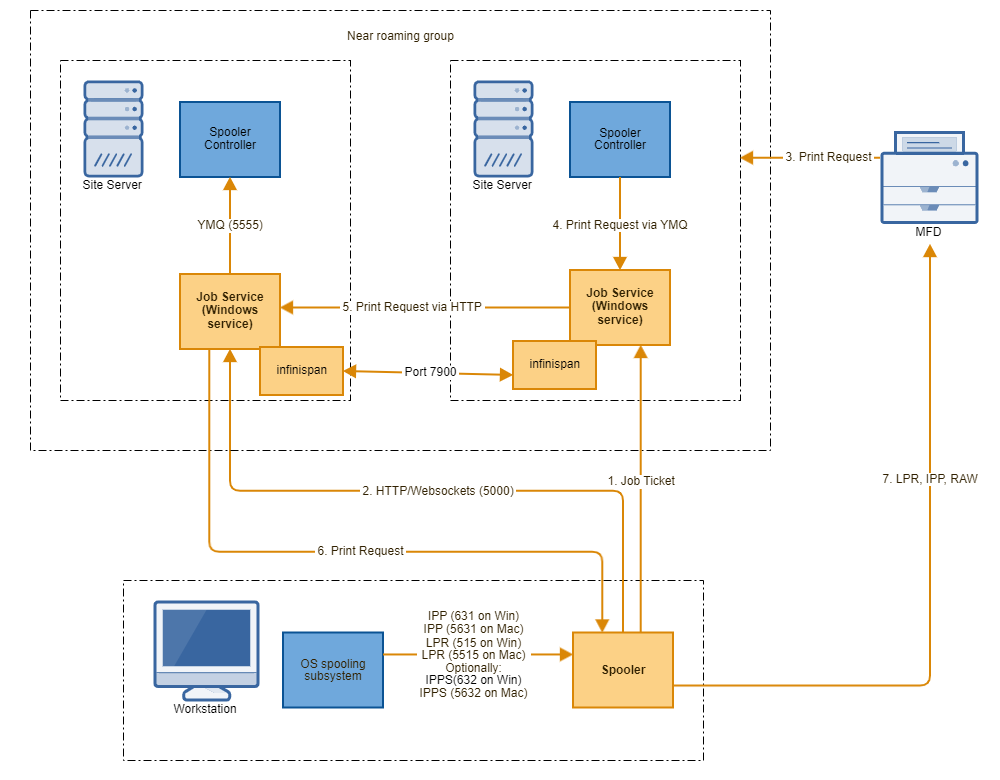

Near roaming group

Oops, Diagram Unavailable

This diagram can't be displayed. It may have been moved or deleted, or the page's access settings may be preventing it from loading. Pages with restricted access must also include Gliffy Diagrams in their allowed list.

Port usages

  • See diagrams above.
