Configuring an Environment with YSoft SafeQube 2

When you want to integrate YSoft centralized scan processing with an environment using YSoft SafeQube 2, you need to meet the following requirements and follow the installation guide.

Typical environment

  • Management nodeManagement ServerSpooler ControllerWorkflow Processing System

  • YSoft SafeQube 2 branch node(s)Spooler ControllerTerminal Server

Configuring WebDAV to Enable Scanning on YSoft SafeQube 2

The default configuration of Document Store (local) is not suitable for YSoft SafeQube 2, please follow the instructions in  Configuring Document Store to set up a WebDAV document store instead.

If you want to use unsecure channel, you must set property webdavSsl to Disabled and in SafeQube terminal server configuration set property TS_workflowStorageRoot to use http, not https.

Configuring Spooler Controllers

  1. Install the YSoft SafeQube 2 node in the environment:Configure YSoft SafeQube 2 (follow the (6.0.112) YSoft SafeQube 2 Deployment).Stop the YSoft SafeQube 2 applications: Spooler Controller and Terminal Server.

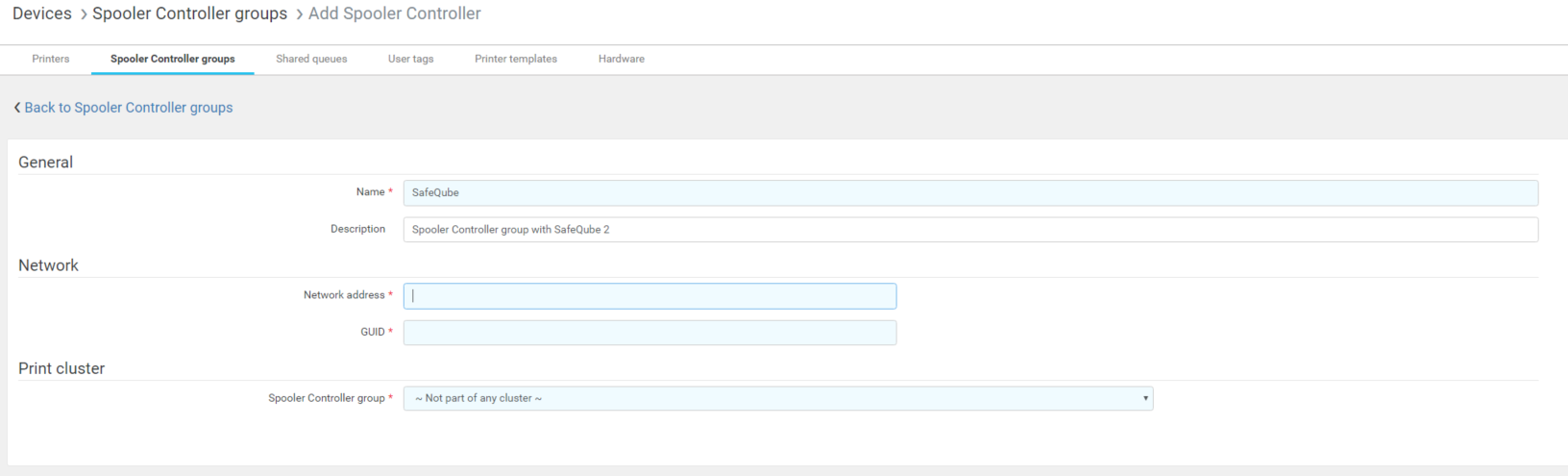

  2. Add a Spooler Controller for the YSoft SafeQube 2 node Devices > Spooler Controller Groups > Add Spooler Controller.

  3. Fill in a name (e.g., YSoft SafeQube).

  4. Enter the YSoft SafeQube IP address in the Network address property.

  5. Enter the YSoft SafeQube 2 spoc.localGUID value in the GUID property.

  6. Start the YSoft SafeQube 2 applications (Spooler Controller and Terminal Server), and wait until they are ready.

  7. Install all terminals.Do not use Central Spooler Controller, the terminals must be installed from YSoft SafeQube 2 Spooler Controller.
