Konica Minolta iSeries - Configure SSL via MFD Web


  1. Log in to the MFD's Web interface administrator (instructions  here ).

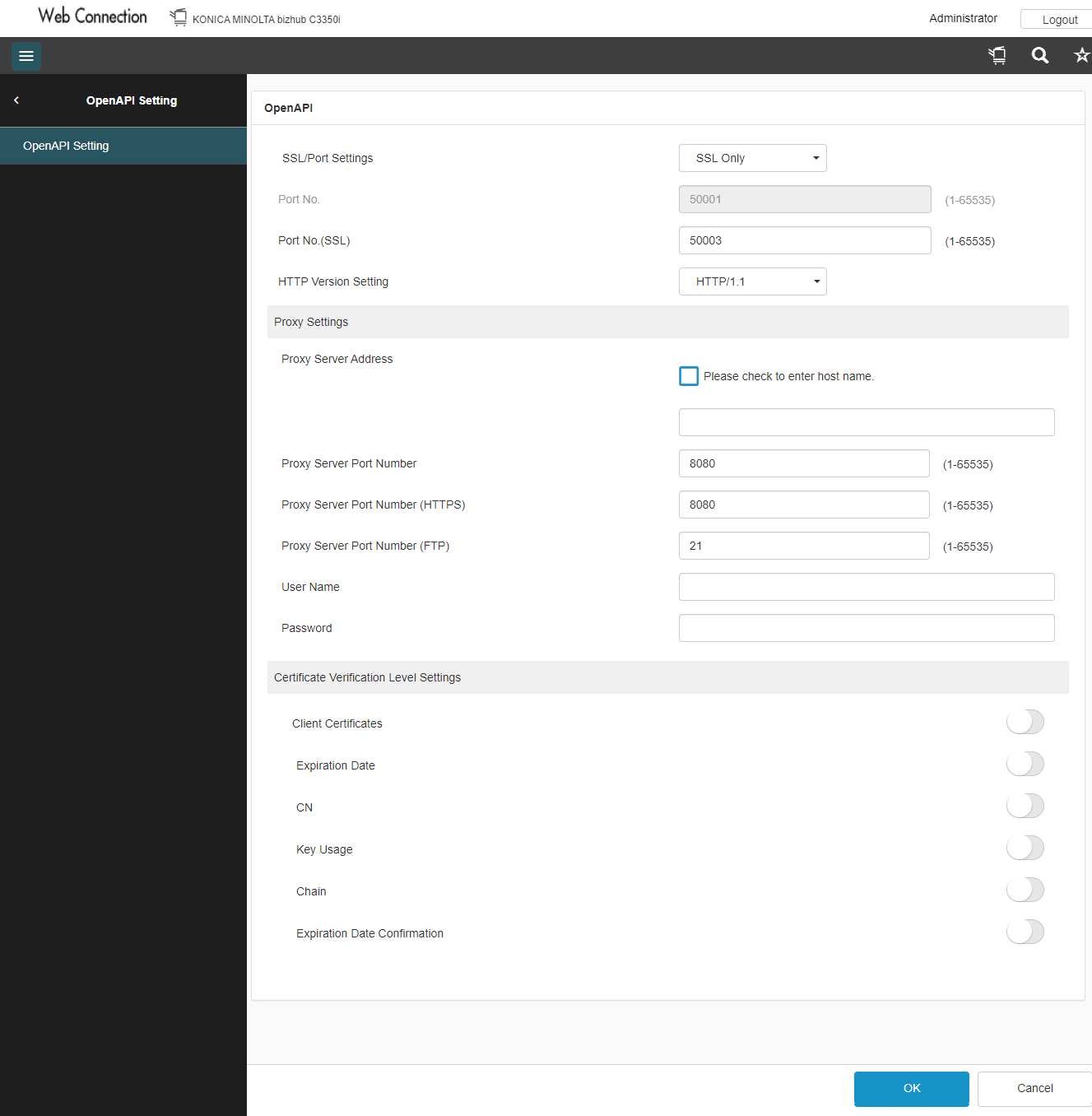

  2. Administrator web interface opens, navigate to Network, OpenAPI Setting, choose the SSL Only option and click OK.


    The Client Certificates request should be off.

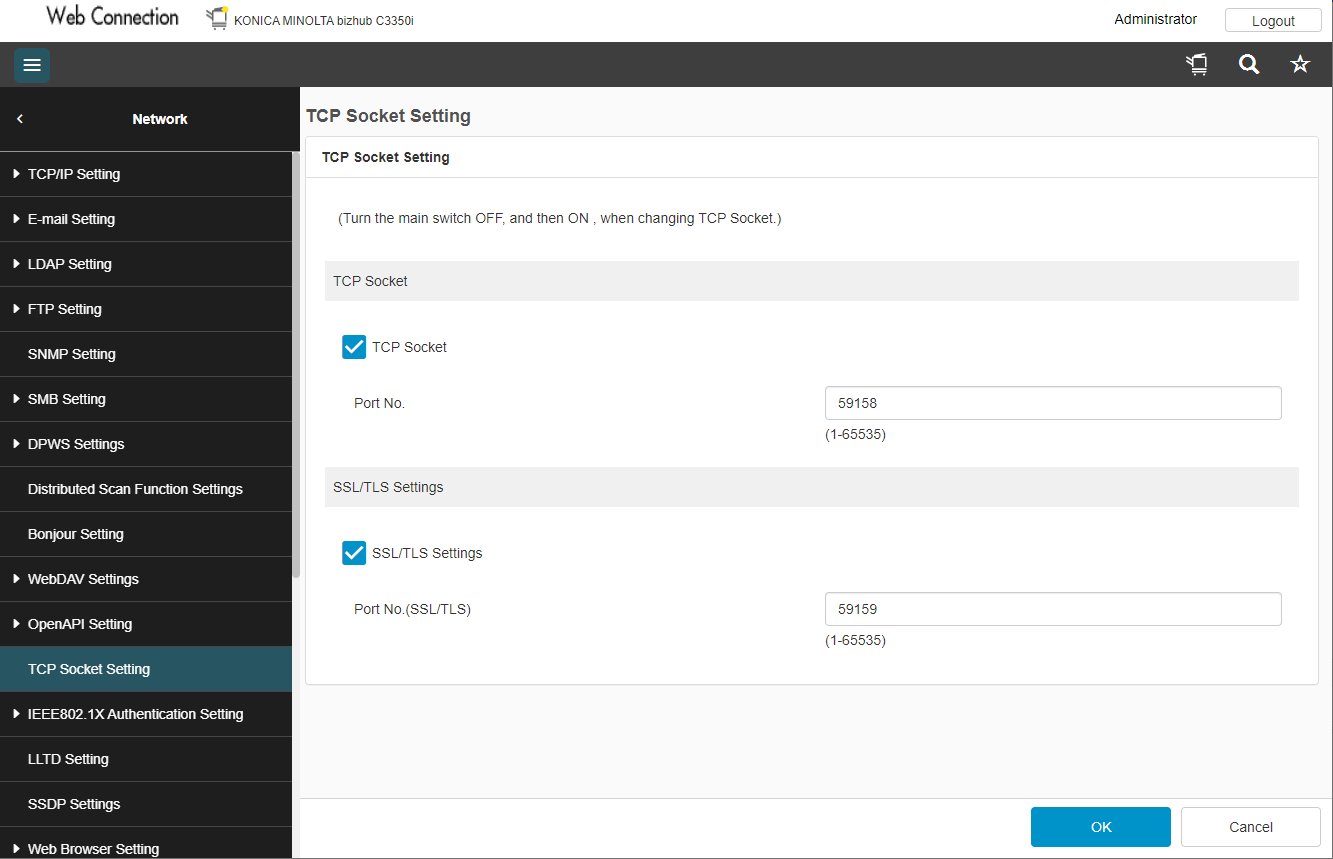

  3. In the network tab, select TCP Socket Setting and check the SSL/TLS Settings checkbox.

  4. Turn the main switch OFF and then ON again to apply changes to TCP Socket settings.

     For remote reset use the web interface of the MFD, menu Maintenance > Reset > Reset.
