Configuring Ricoh SOP - Automated configuration steps


All of the steps listed in this document are done automatically during the installation. In following cases, they need to be done manually:

  • On G2 machines without Java enabled (admin is informed about this during the installation)

  • Remote configuration fails due to unexpected error (admin is notified about this situation during installation)

Configuring USB Card Reader

Configure card reader in System Settings.

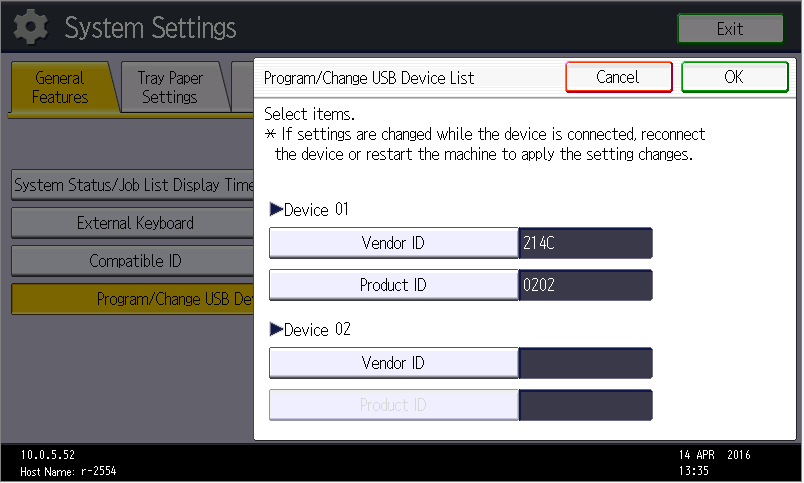

  1. Select System Settings > General Features > Program/Change USB Device List

  2. Then enter values for Vendor ID  - 214C and Product ID - 0202 for Device 01


  1. Set up card reader in Smart Operational Panel

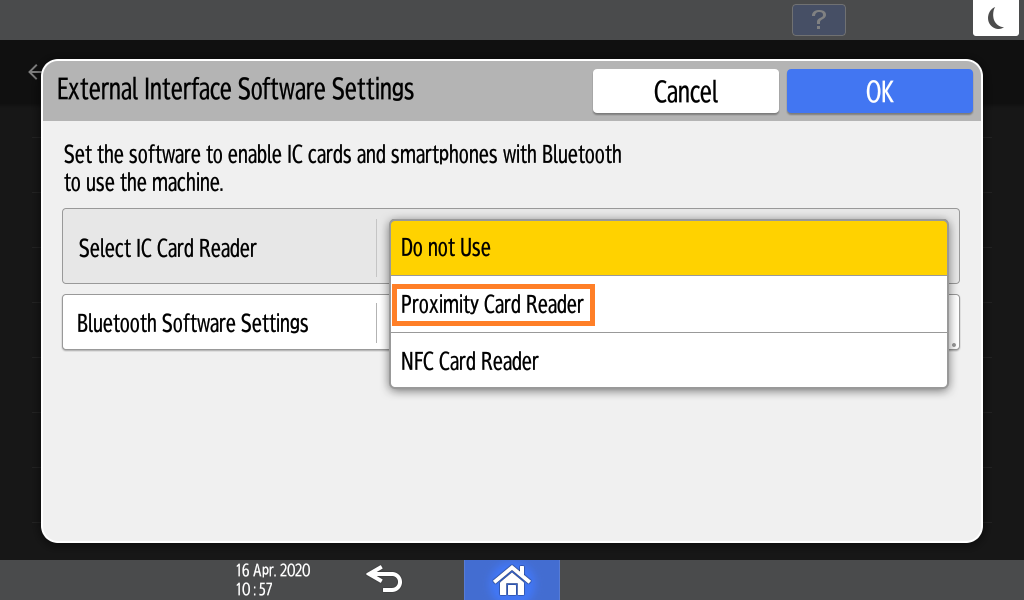

  2. User Tools / Settings -> Screen Features -> Screen Device Settings -> IC Card Bluetooth Software Settings / External Interface Software Settings -> Select IC Card Reader -> select "Proximity Card Reader"

    switch Select IC Card Reader to Proximity Card Reader_marked.png

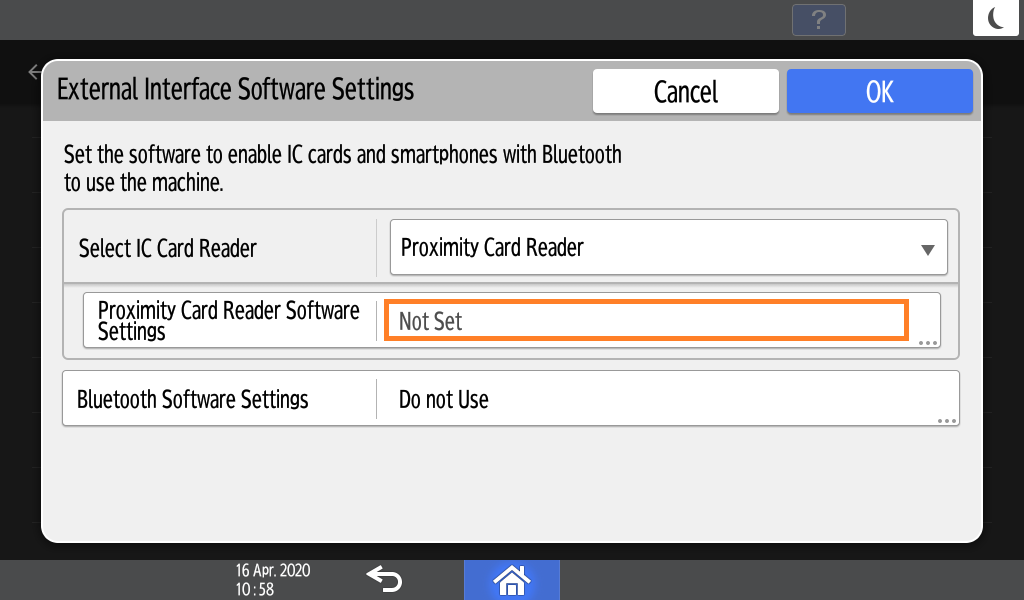

  3. Go into Proximity Card Reader Software Settings
    tap on Not Set_marked.png

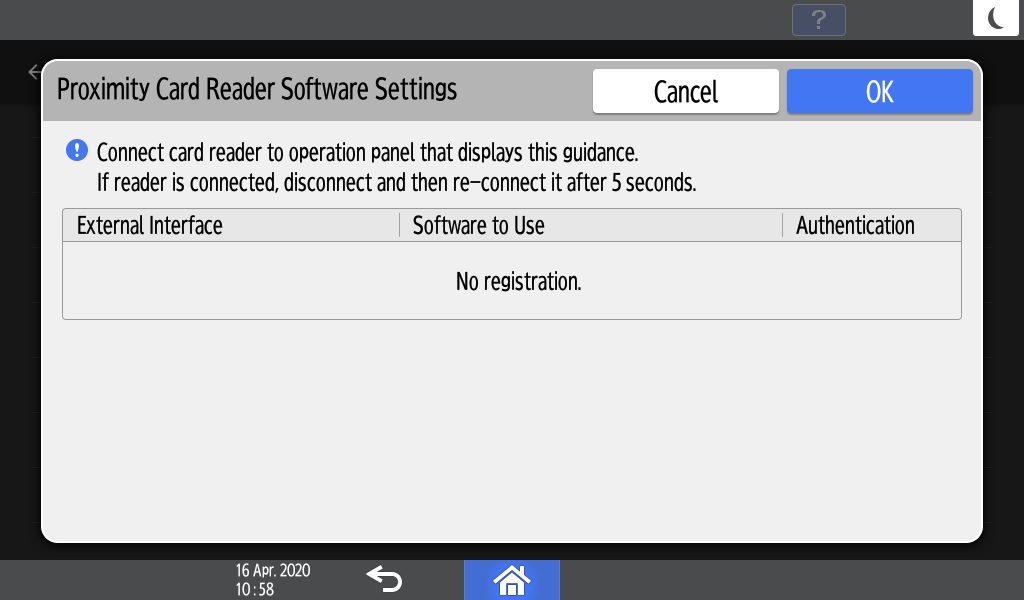

  4. Following screen will appear
    re or connect the card reader to smart operation panel USB.png

  5. Connect or reconnect a card reader to USB on the Smart Operational Panel

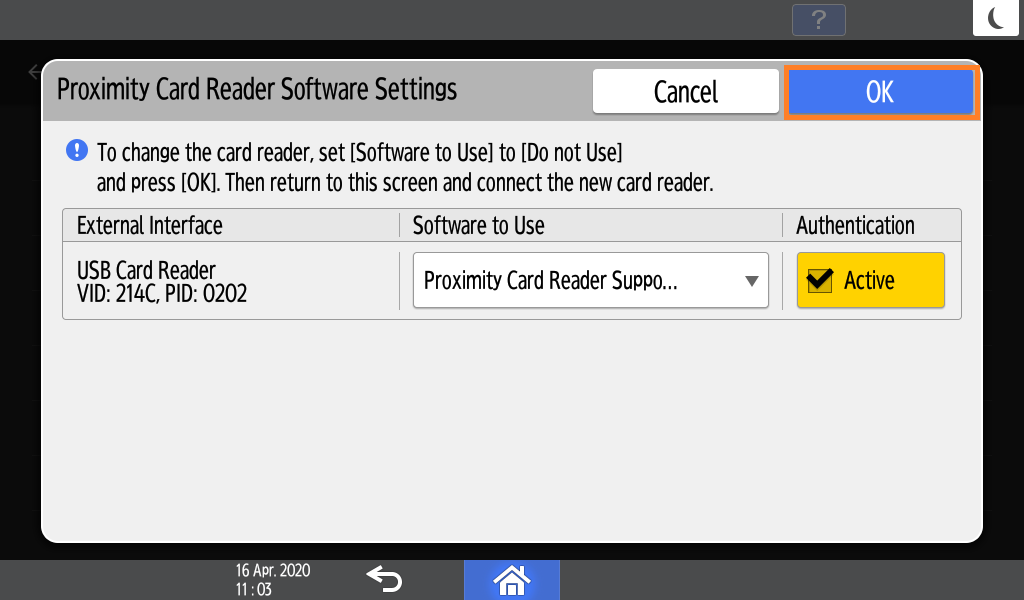

    confirm with OK and restart the MFD_marked.png

    Note that you can use only Smart Operational Panel USB - either visible one, or hidden micro-USB through an adapter. Card reader will not work with MFD ports (on back or on a side of the device).


  6. Check the settings, confirm the change and restart the MFD

Service menu settings

Firmware update should be updated to newest version.

  1. SP mode 5-113-001 is set to 0 (default value).

  2. External optional Counter Type option to activate support for enhanced external charge unit management: SP mode 5-113-002 to 0.

  3. Access Control - SDK Certification Device 5-401-230 to 00000001 (Enables Custom Authentication).

  4. Access Control - Detail Option 5-401-240 to 00001000 .

Authentication settings in Web Image Monitor (WIM)

  1. Go to the Ricoh MFD web interface (Web Image Monitor).

  2. Login as an administrator.

  3. Under Device Management > Configuration change the following settings to allow display of authentication application.

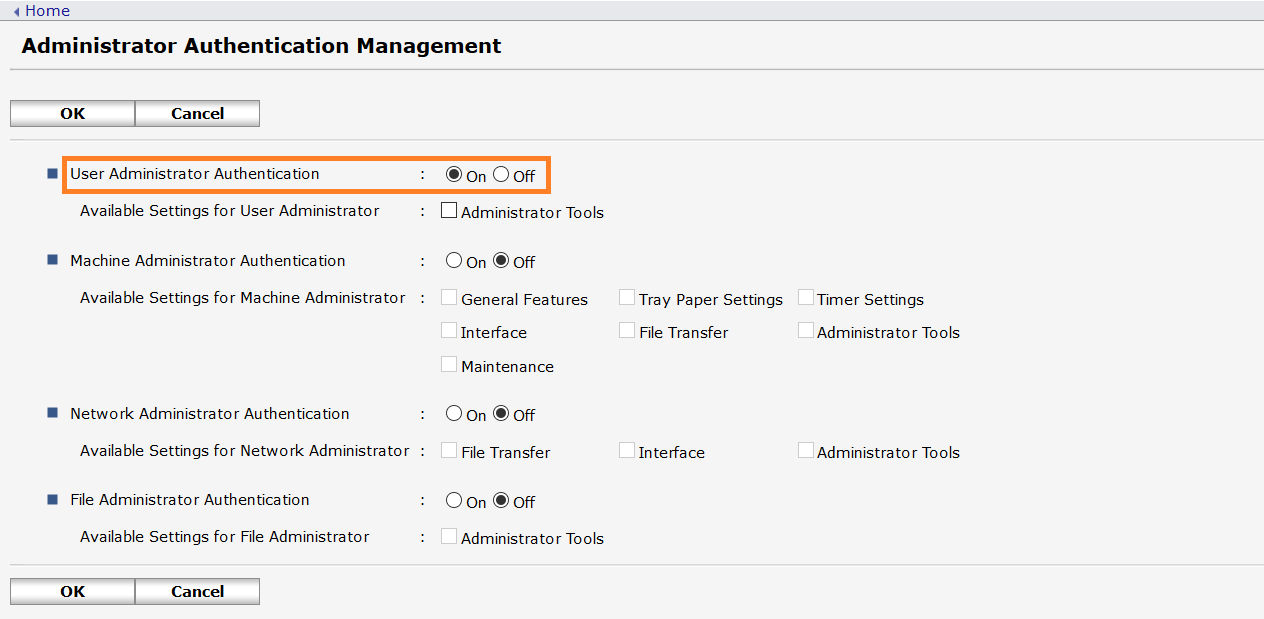

    1. In Administrator Authentication Management set User Administrator Authentication to On.

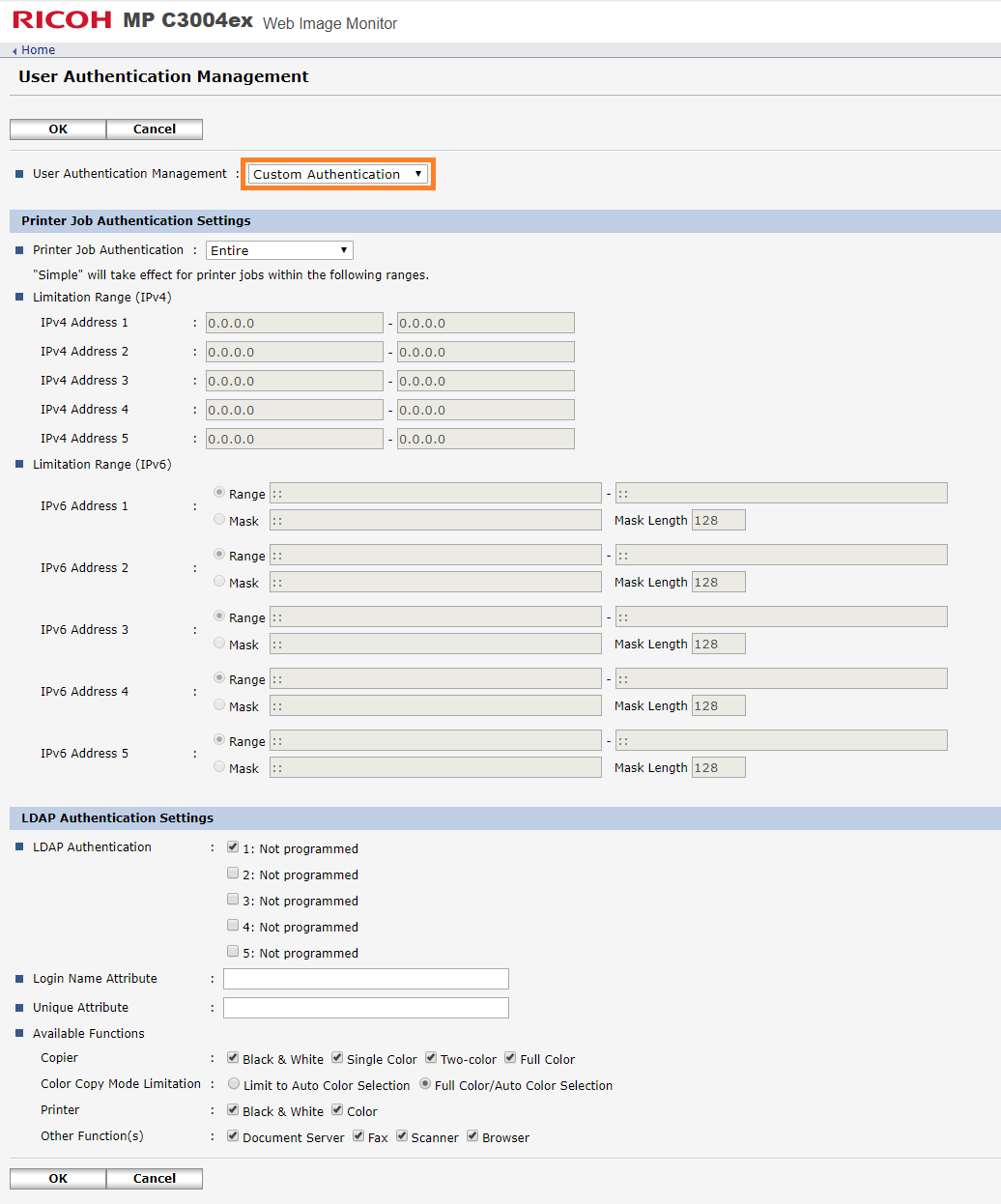

    2. In User Authentication Management set User Authentication Management to Custom Authentication.
      user auth management settings2_marked.png

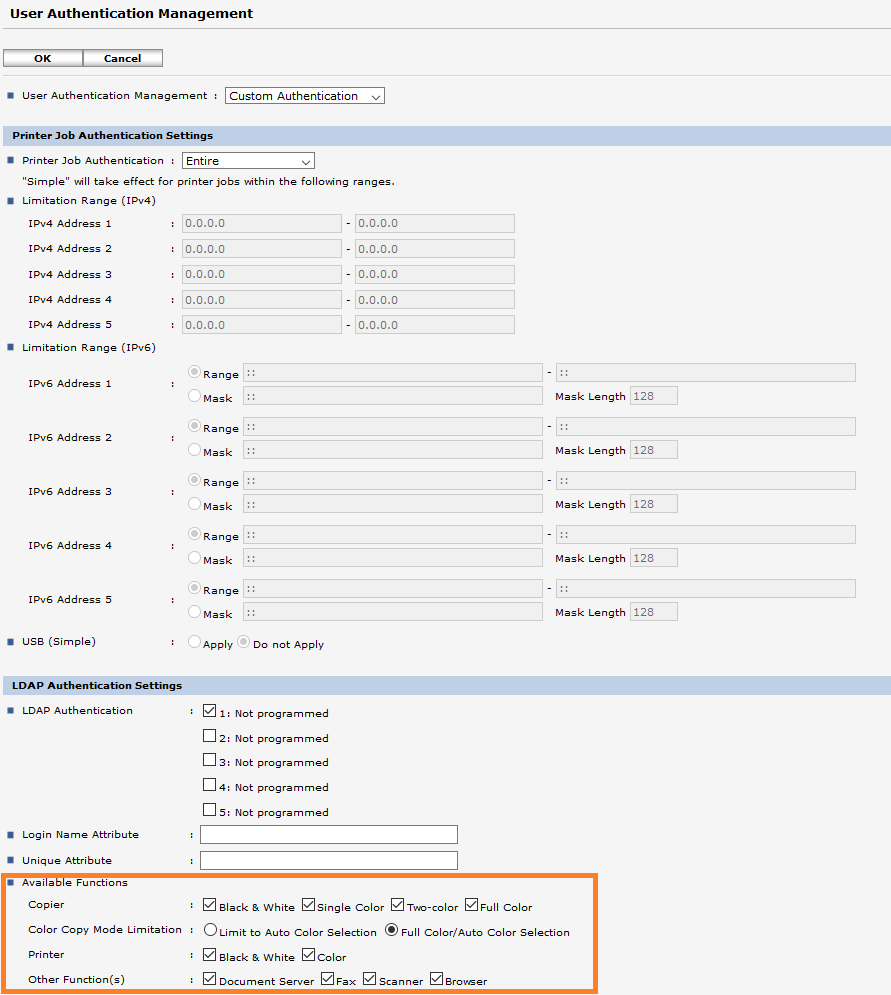

    3. In User Authentication Management check that all functions are enabled.

Set appropriate timers

Terminal inactivity timeout is a value for user automatic logout. It is defined for Cost centers and can be specified per user but now it is not supported, see page Requirements and Known Limitations of YSoft SafeQ Embedded Terminal for Ricoh SOP .

Default value on MFD is automatically set to more than 3 minutes. It can be manually changed after installation.

  1. Login to WIM (Web Image Monitor) as machine administrator.

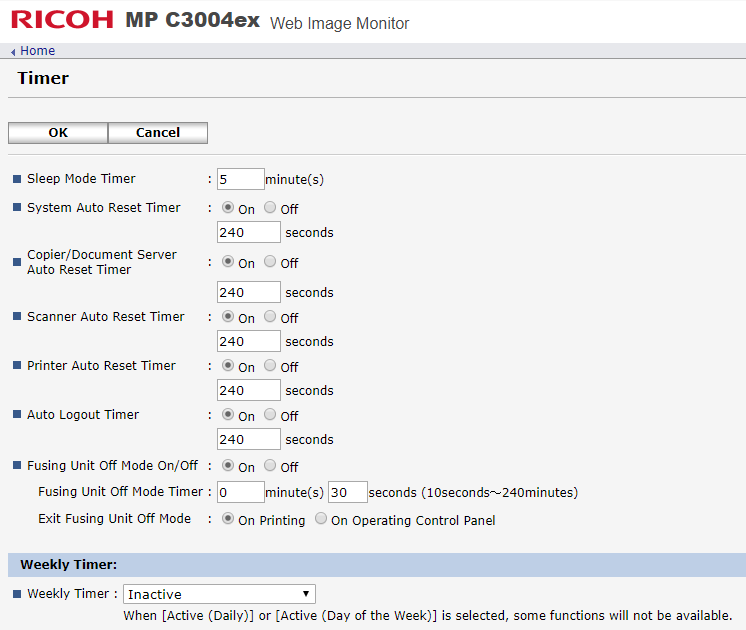

  2. Go to Device Management → Configuration → Timer (under Device Settings).

  3. As default set all timers higher than Terminal inactivity timeout (so for default Terminal inactivity value, set all values to more than 3 minutes).[data-colorid=u33rcd9ijg]{color:#373a3c} html[data-color-mode=dark] [data-colorid=u33rcd9ijg]{color:#c3c6c8}Most of the timers can be turned off if they are not needed. set timer.PNG

Key Counter Management settings on the MFD

  1. Go to the User Tools on MFD.
    apps list - user tools icon.png

  2. Select Machine Features.

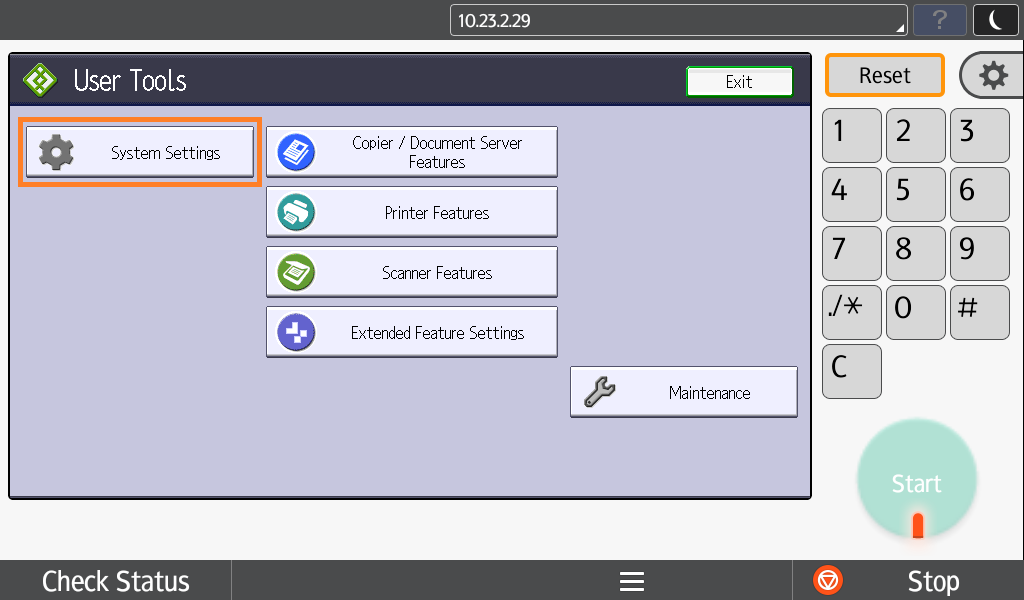

  3. Go to System Settings.
      select system settings_marked.png

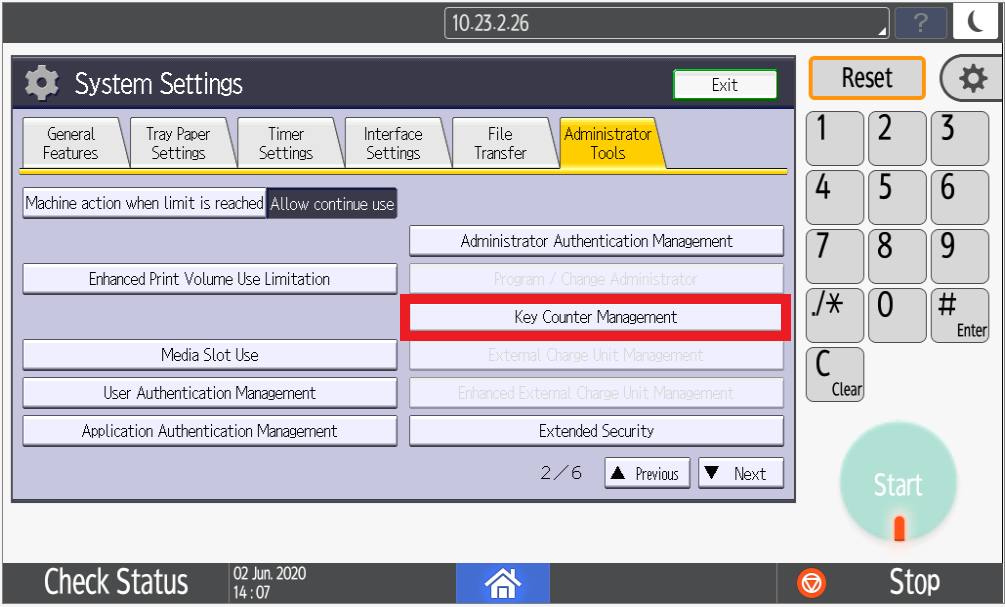

  4. Go to Administrator Tools > Key Counter Management (on a second page)
    Key Counter Management 01.png

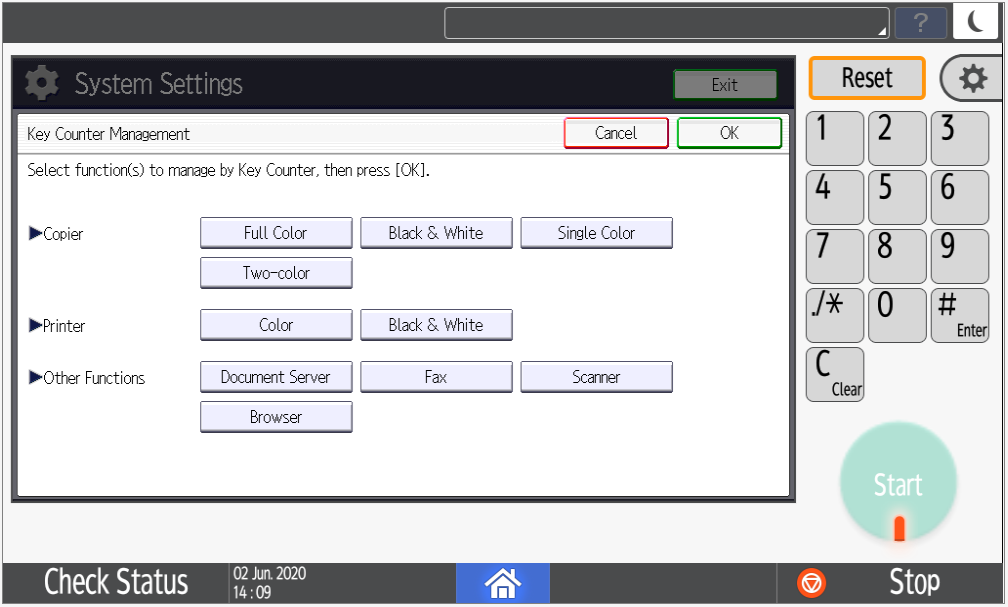

  5. Unblock all functions.
    Key Counter Management 02.png

  6. Turn off Document Server Feature.
    Document Server Function off_marked.png

Scan journal settings

In order to always allow users to scan, it's recommended to set following scan journal delete strategy

  1. Login to WIM (Web Image Monitor) as machine administrator.

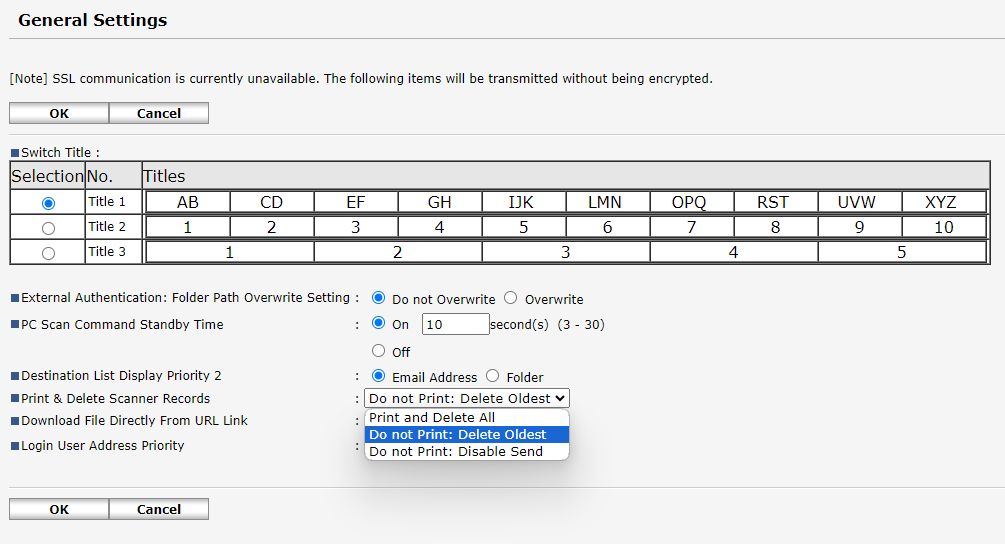

  2. Go to Device Management → Configuration → Scanner → General Settings

  3. Set Print & Delete Scanner Records to Do not Print: Delete Oldest

Alternatively, this can be changed by setting SCAN_SETTINGS__PRINT_DELETE_SCANNER_JOURNAL SP option to 1.
