Compatible blocking cables
-
YSQC0-032-0000 Cable Toshiba v2 (Type 1)
-
YSQC0-033-0000 Cable Toshiba v2 (Type 2)
-
YSQC0-034-0000 Cable Toshiba v2 (Type 3)
-
YSQC0-035-0000 Cable Toshiba v2 (Type 4)
-
YSQC0-036-0000 Cable Toshiba v2 (Type 5)
-
YSQC0-037-0000 Cable Toshiba v2 (Type 6)
-
YSQC0-042-0000 Cable Toshiba v2 (Type 7)
-
YSQC0-022-0000 Cable Toshiba Harness
Setting via device service menu
After entering device service menu, following steps have to be performed:
-
Open registry 202 (type) and set up option 0 up to 3 (0 disabled, 1, 2,3 messages)
Quit registry settings.
Setting via device service menu for e-STUDIO 2505/2505H/2505F
After entering device service menu, following steps have to be performed:
-
Open registry and set (08)9016 to 1 to enable cost recovery mode.
-
Set (08)9017 to 1 (determines what is covered in cost recovery mode).
Quit registry settings.

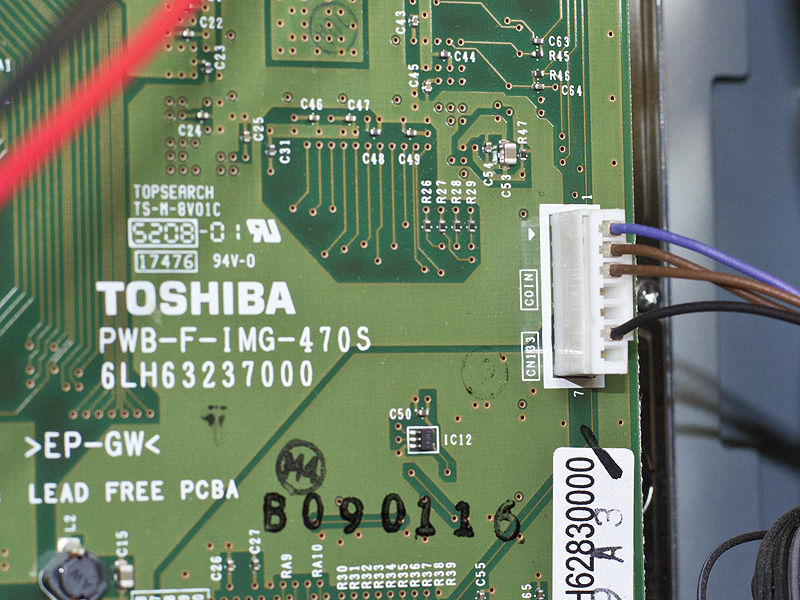

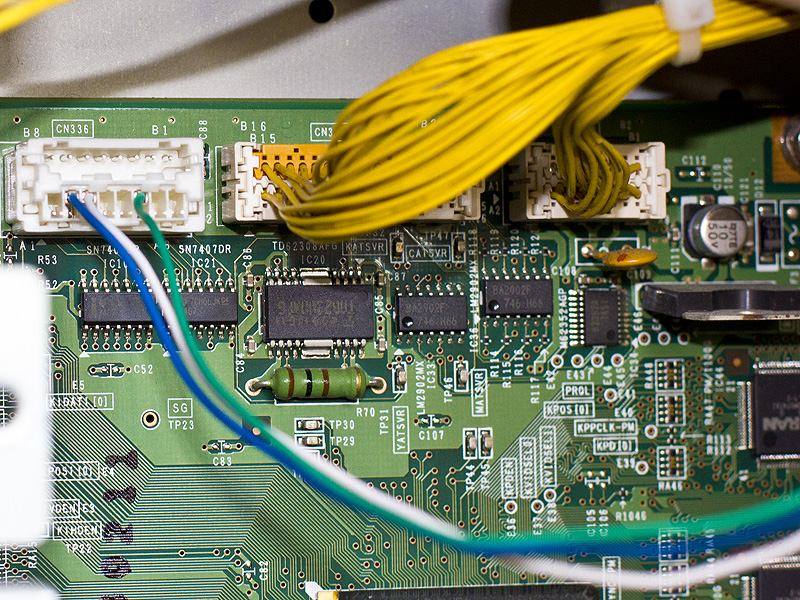

Examples of blocking cable connection:

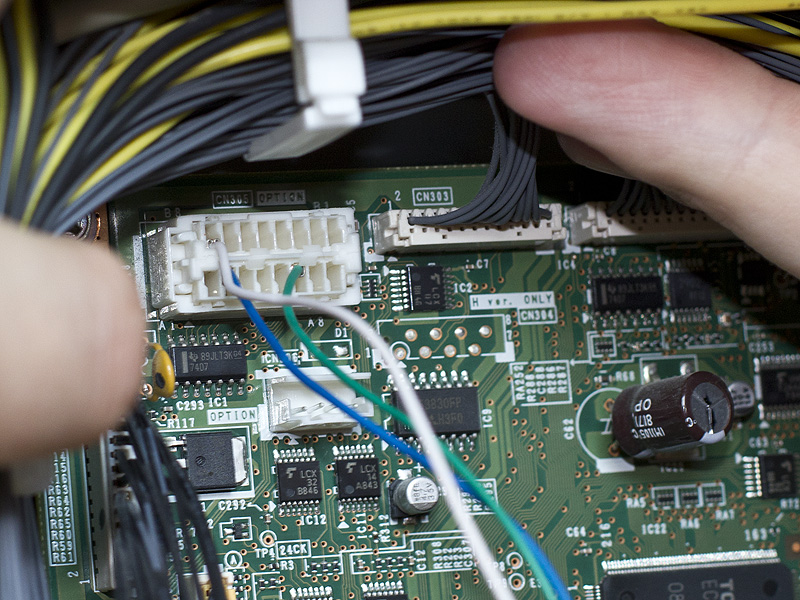

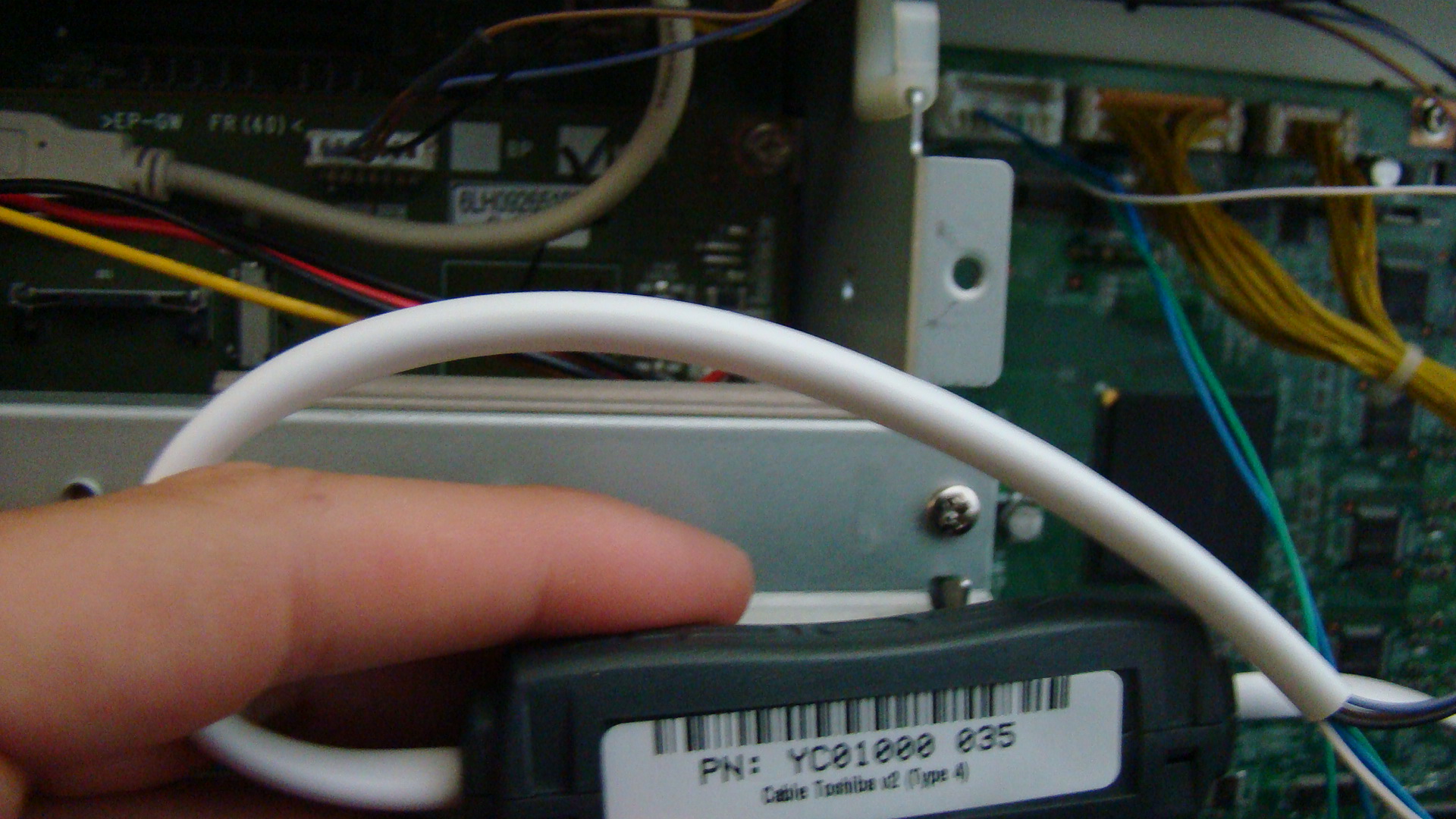

Toshiba e-STUDIO 2820c
YSQC0-035-0000 Cable Toshiba v2 (Type 4)

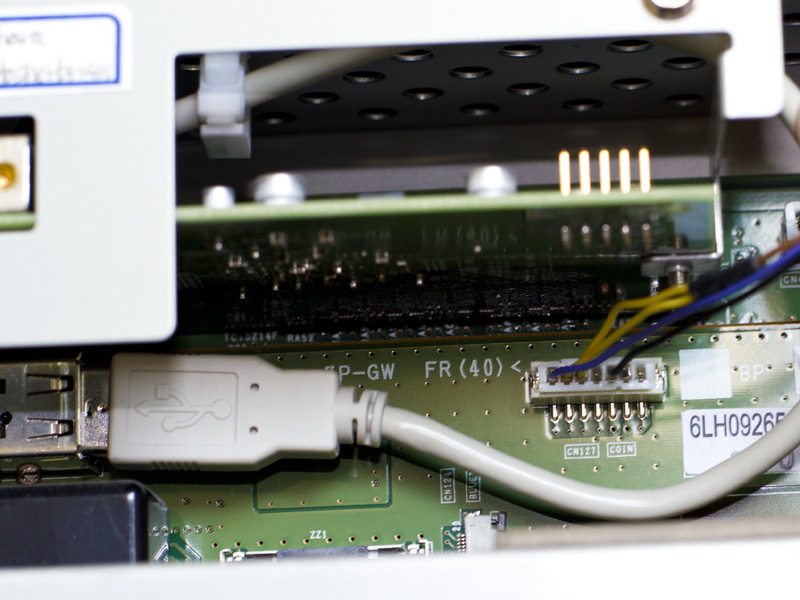

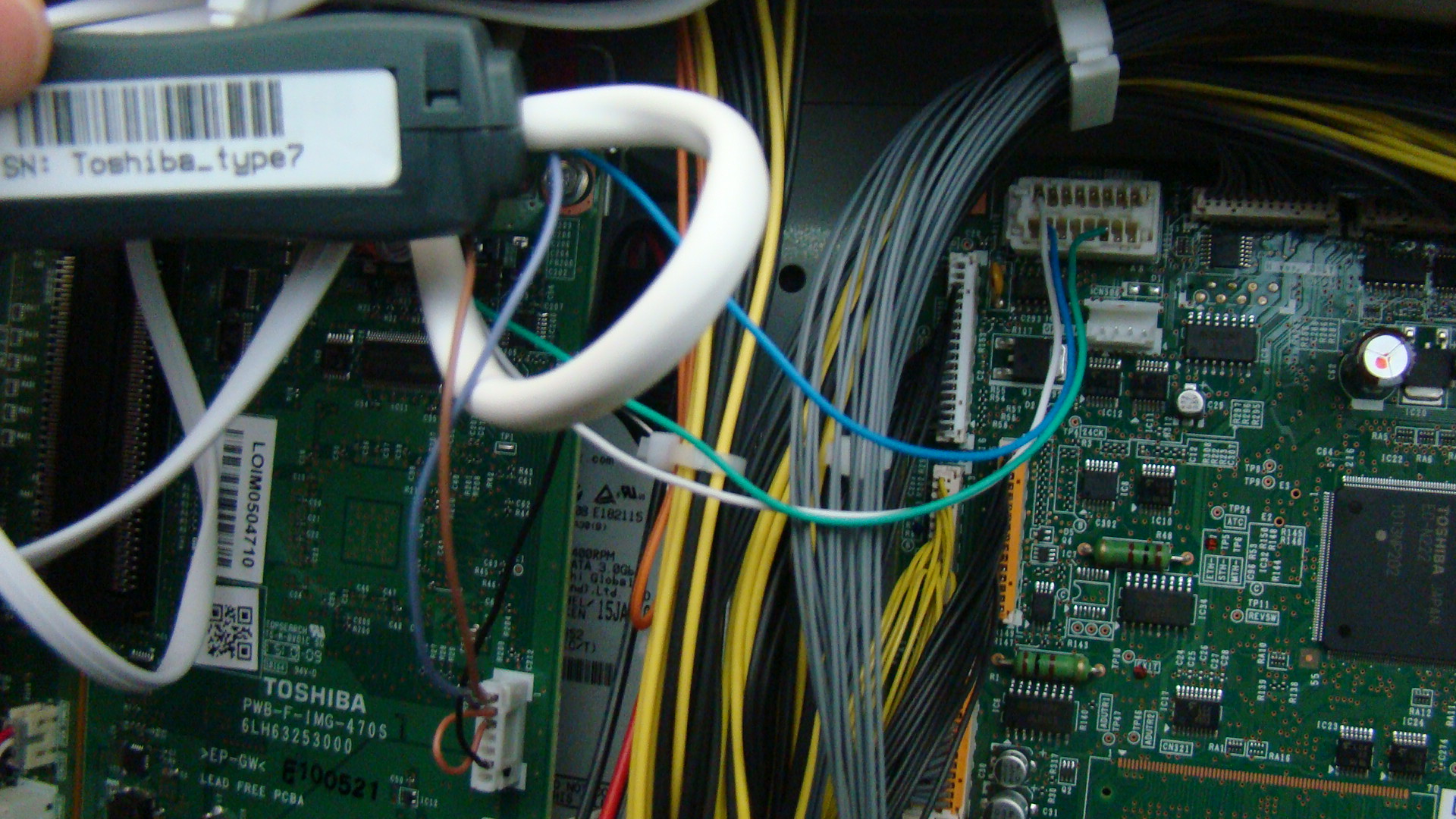

Toshiba e-STUDIO 255
YSQC0-042-0000 Cable Toshiba v2 (Type 7)

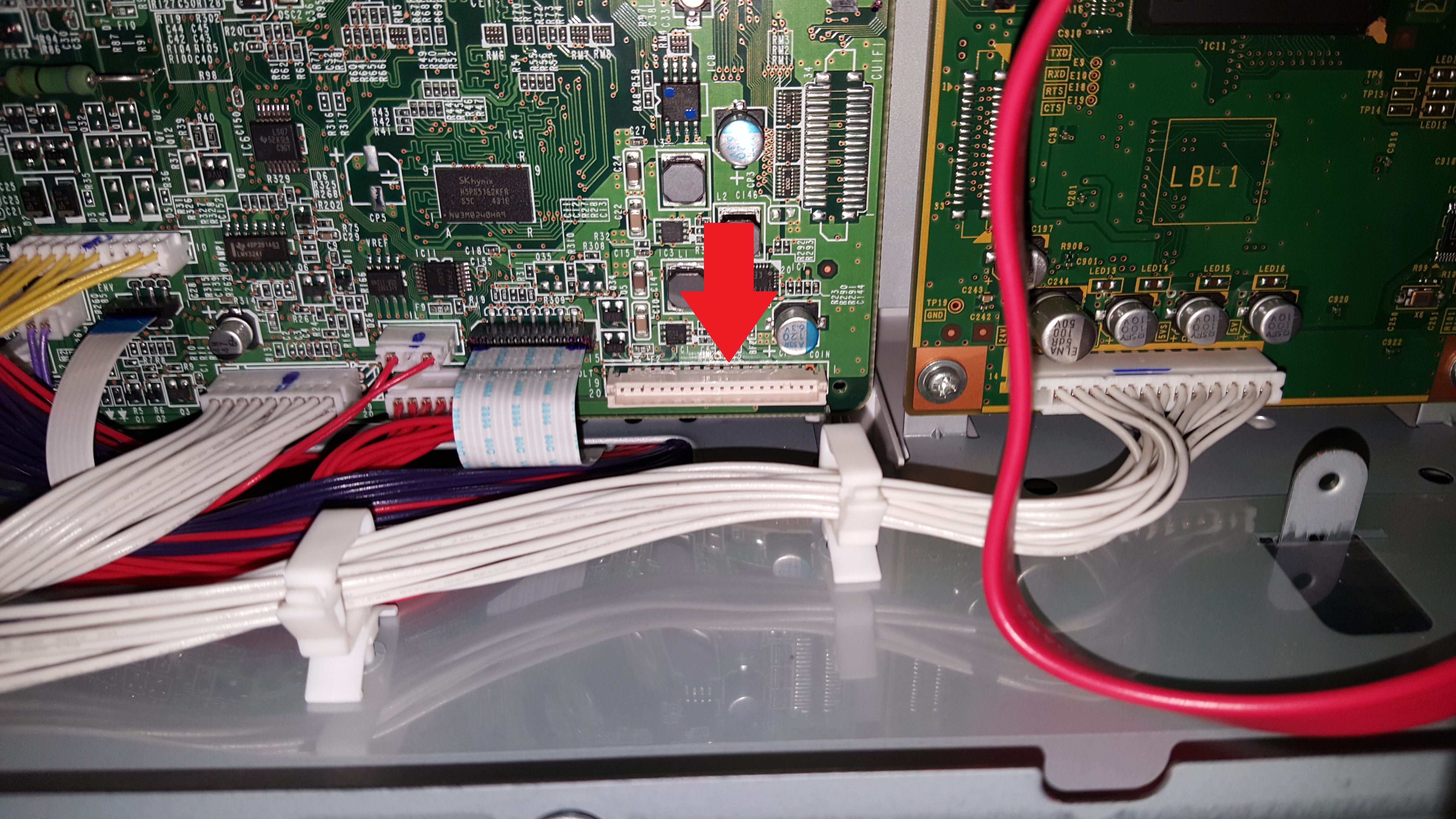

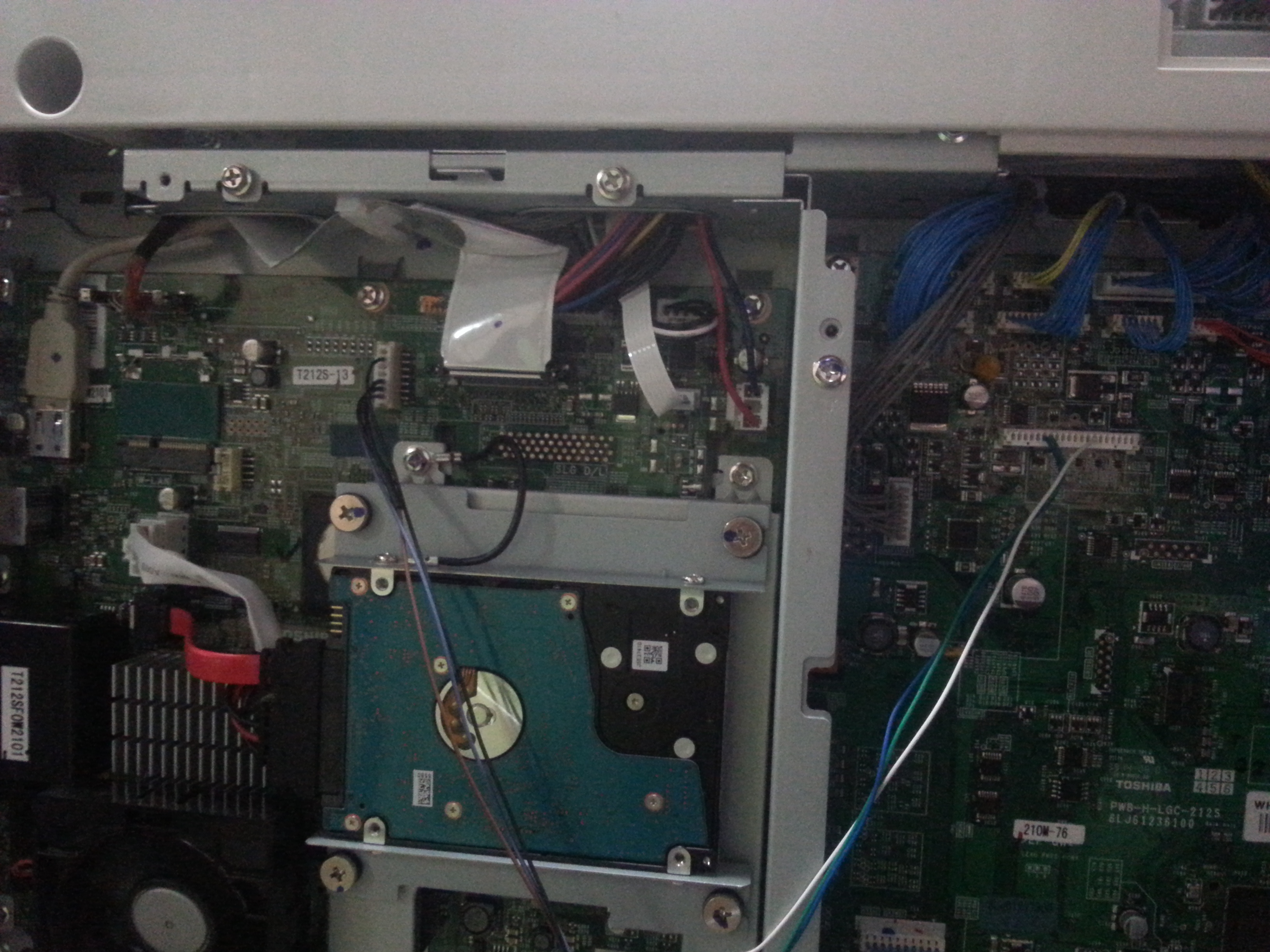

Toshiba e-STUDIO 2555C/3055C/3555C/4555C/5055C/2555CSE/3055CSE/3555CSE/4555CSE/5055CSE and Toshiba e-STUDIO 477S/527S
YSQC0-056-0000 Cable Toshiba v2 (Type8)
Smart Blocking Cables for Hardware Terminals
Required for copy control

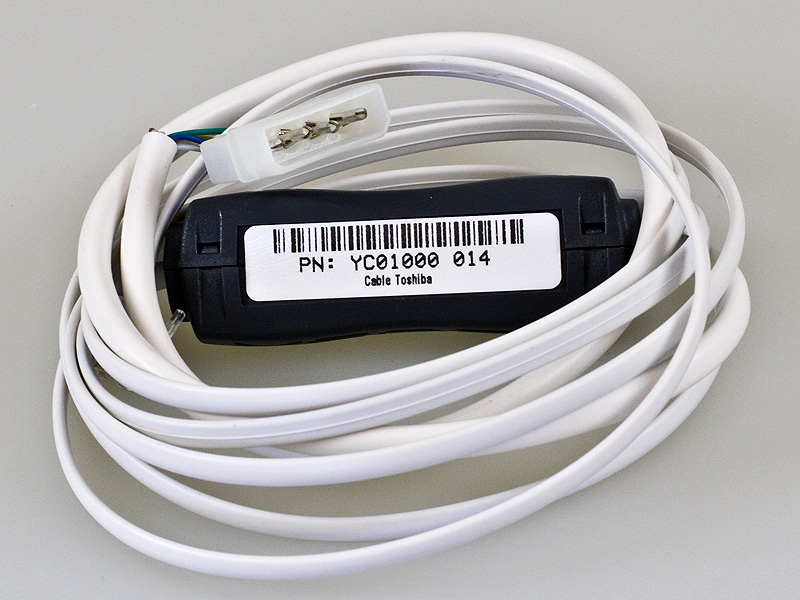

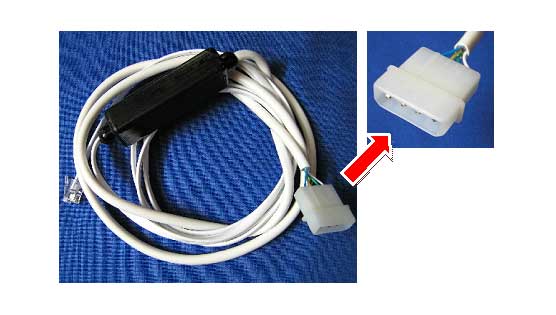

YSQC0-014-0000
Cable Toshiba

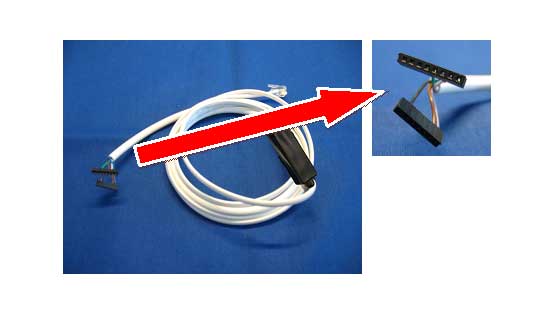

YSQC0-015-0000

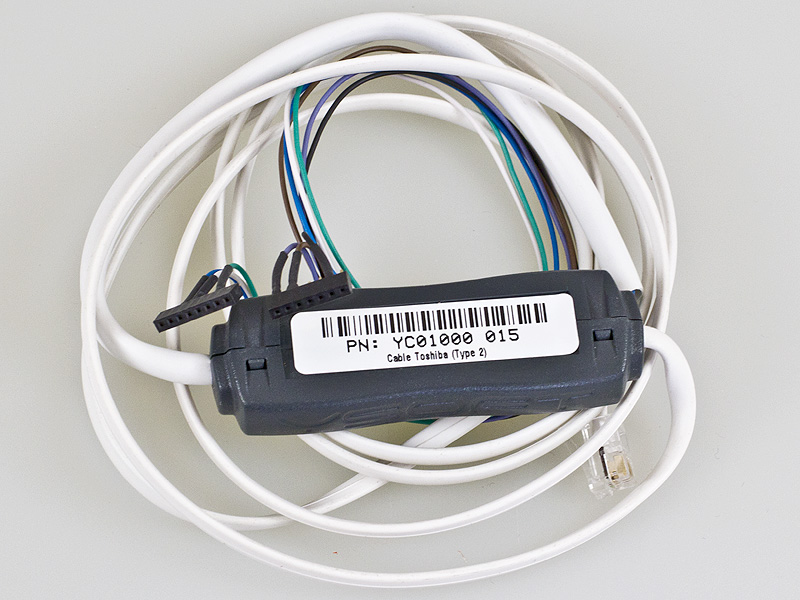

Cable Toshiba (Type 2)

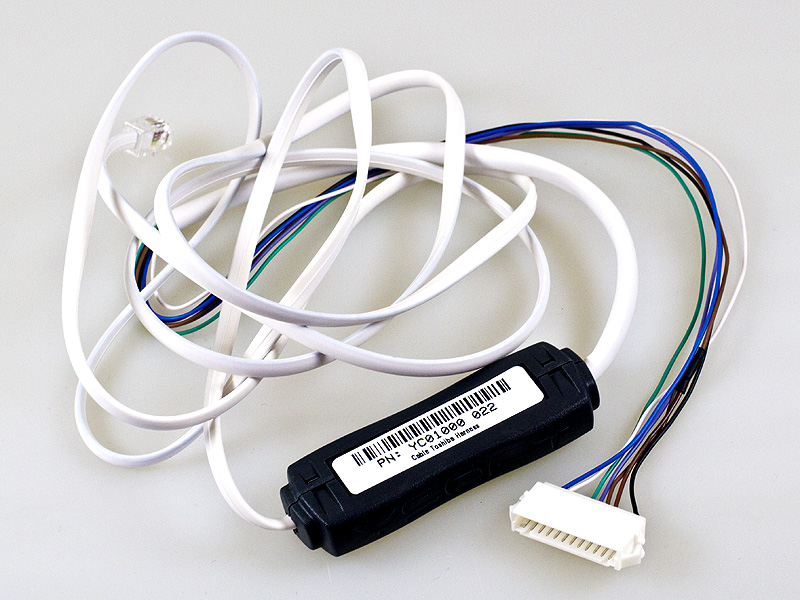

YSQC0-022-0000
Cable Toshiba Harness

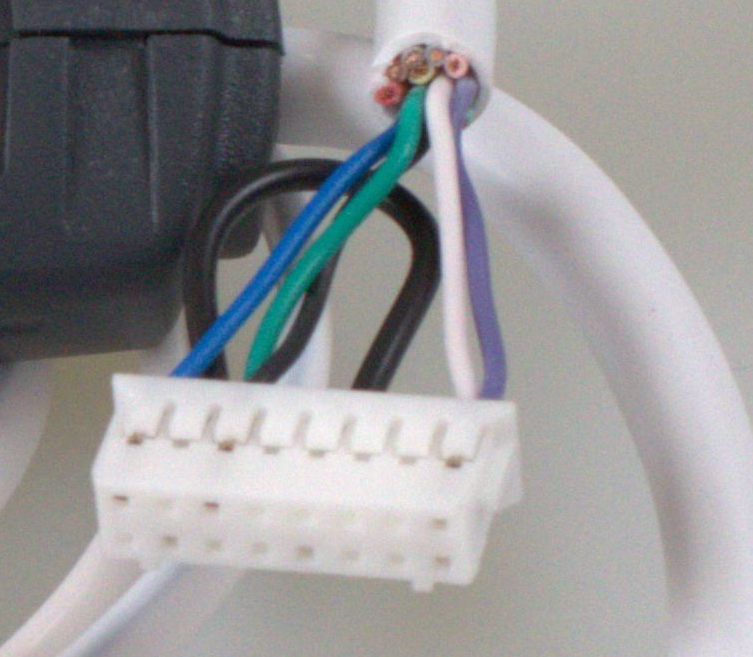

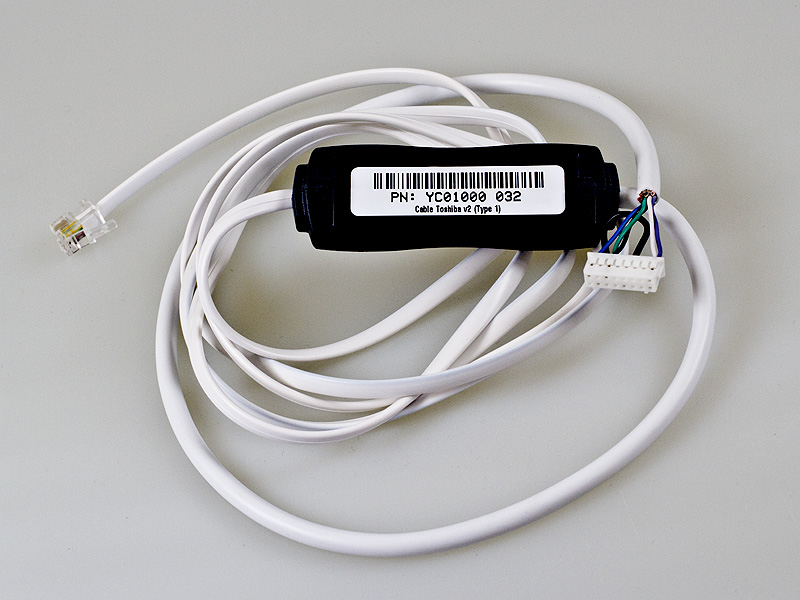

YSQC0-032-0000

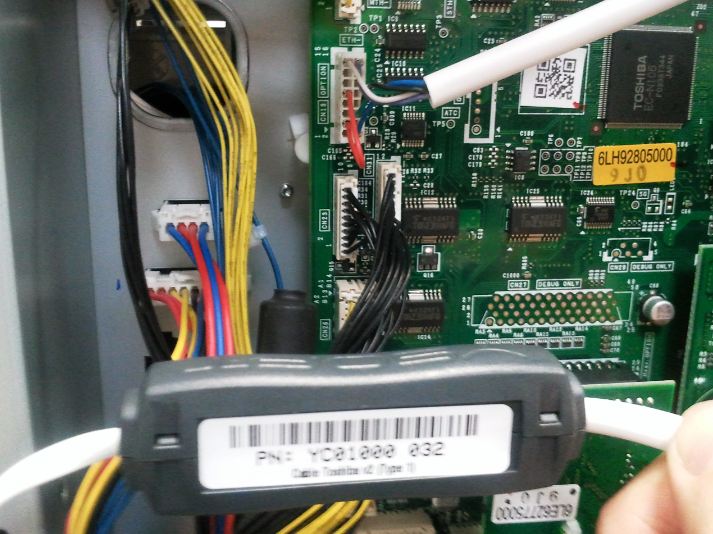

Cable Toshiba v2 (Type 1)

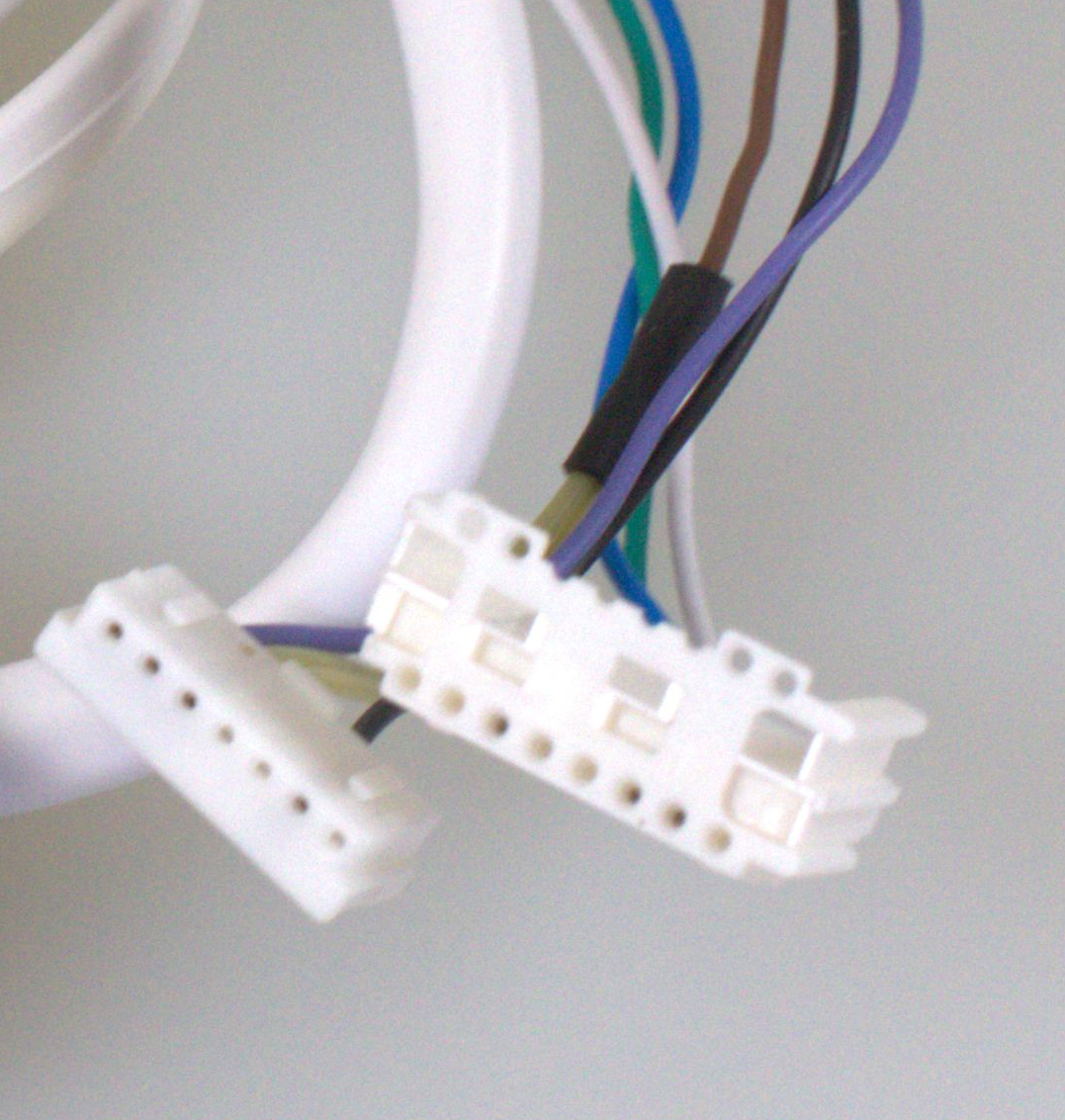

YSQC0-033-0000

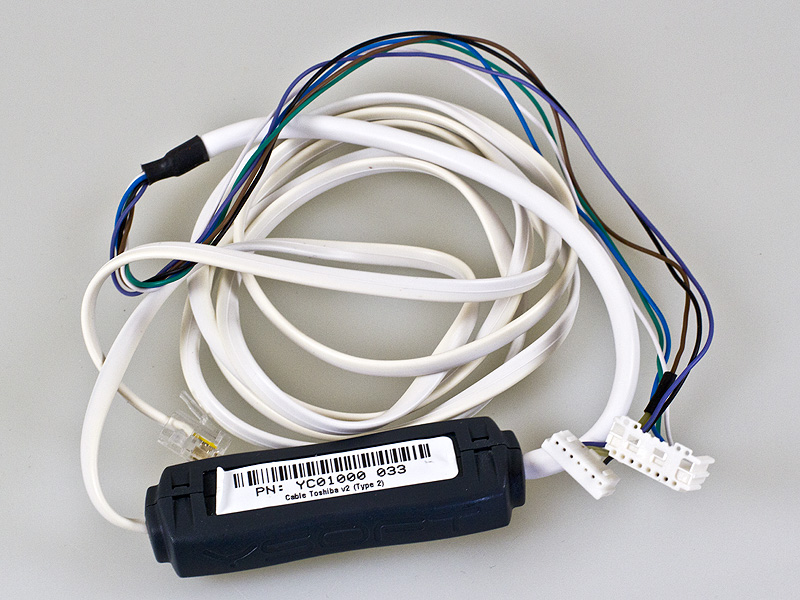

Cable Toshiba v2 (Type 2)

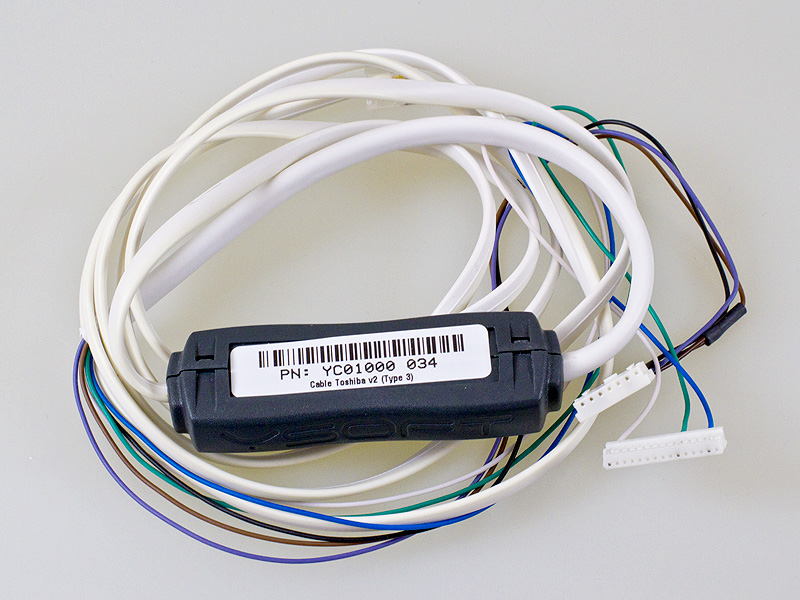

YSQC0-034-0000

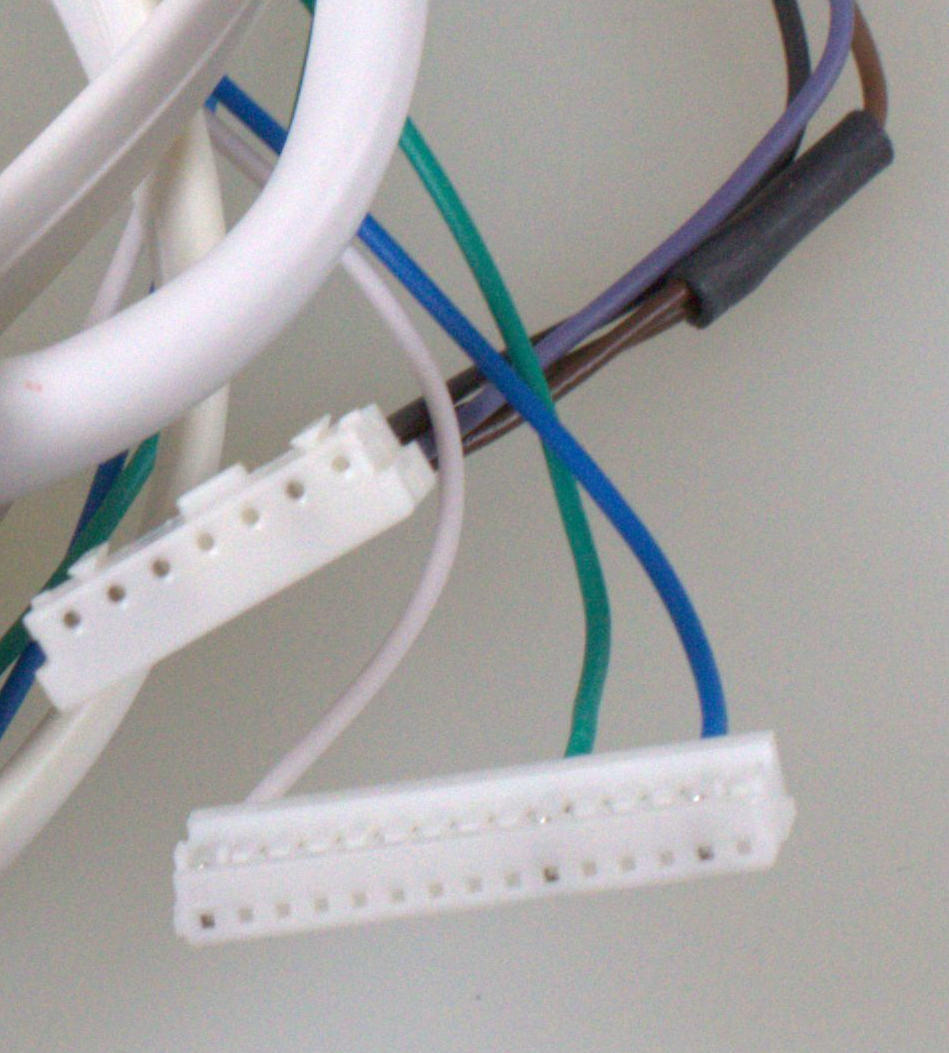

Cable Toshiba v2 (Type 3)

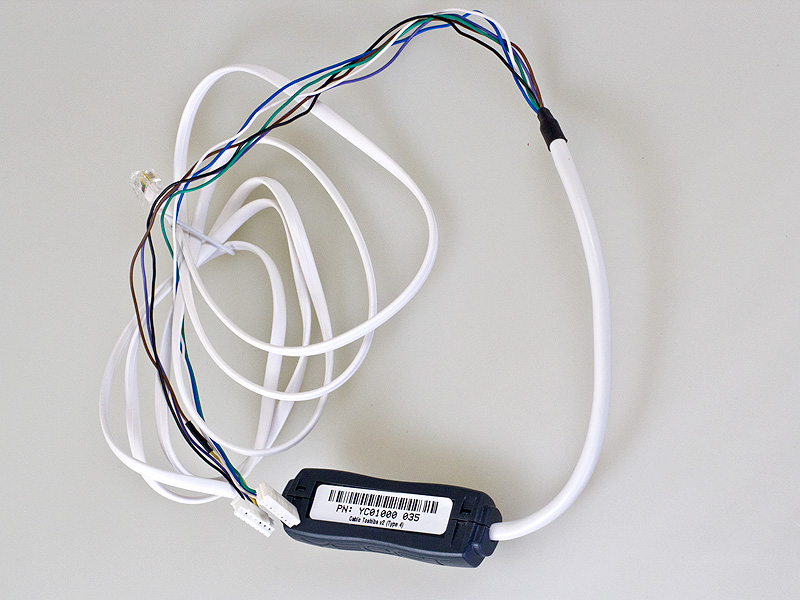

YSQC0-035-0000

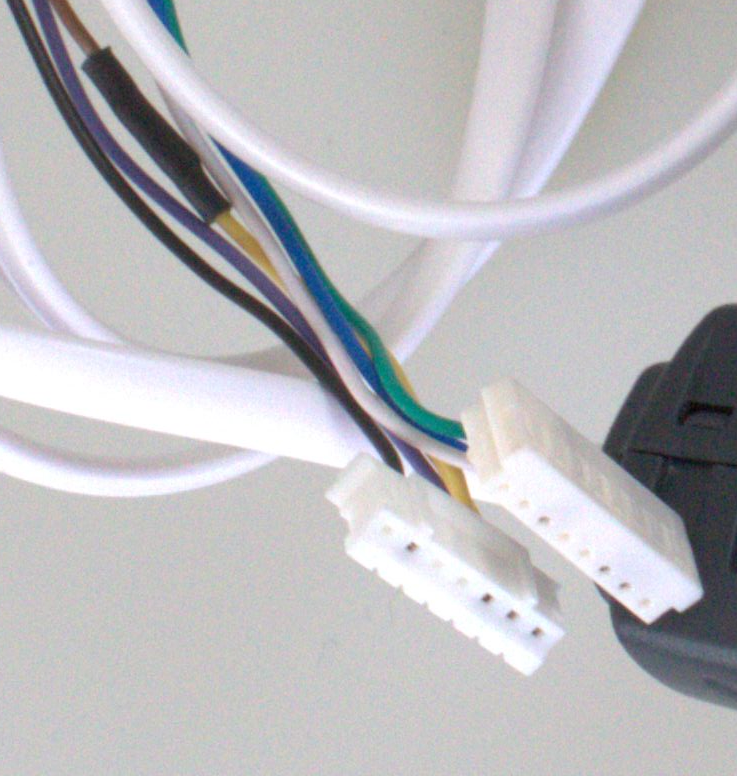

Cable Toshiba v2 (Type 4)

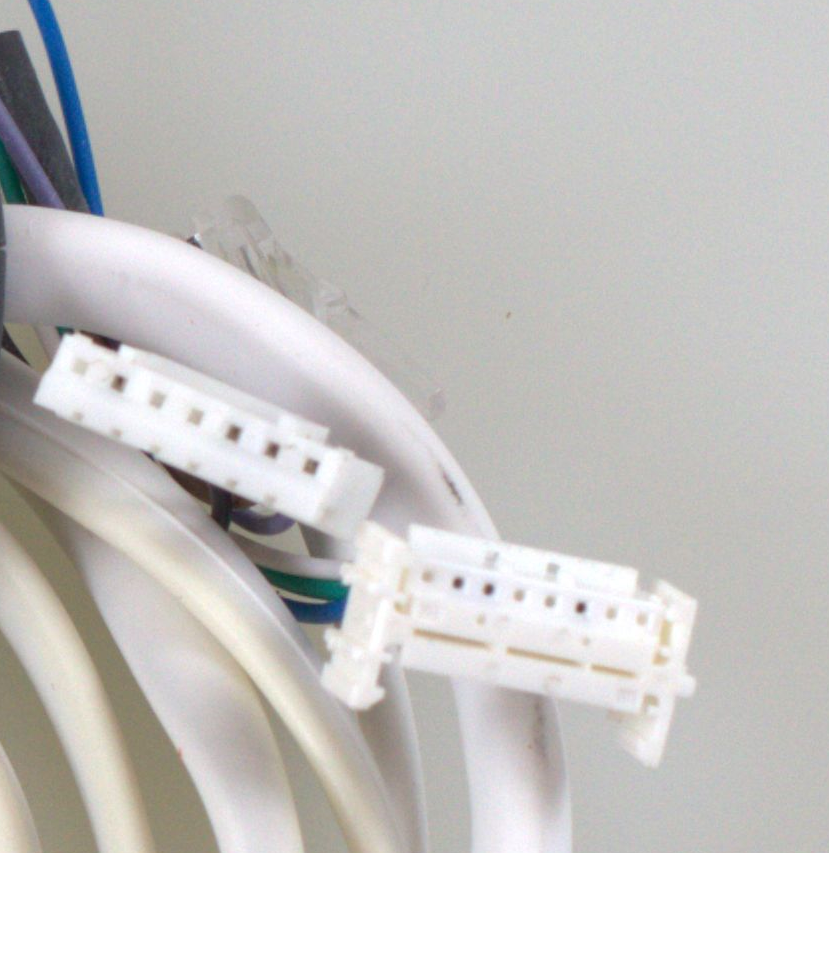

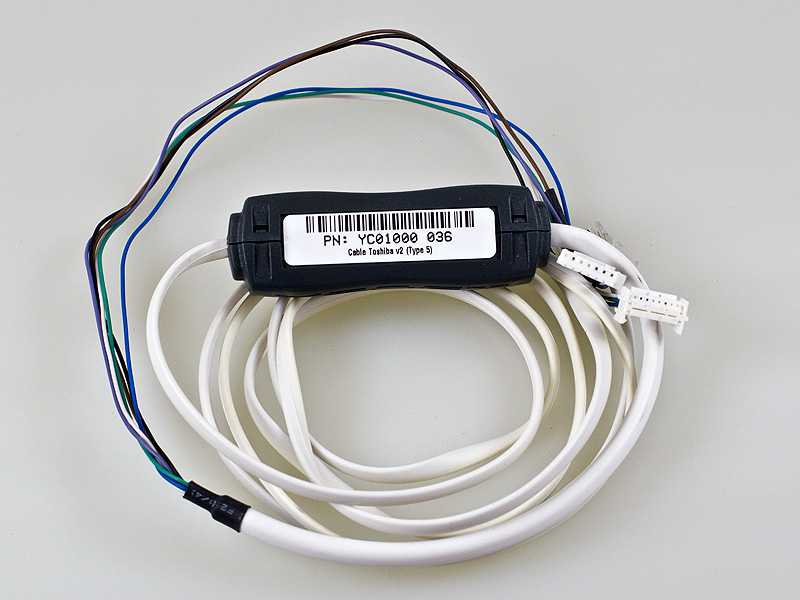

YSQC0-036-0000
Cable Toshiba v2 (Type 5)

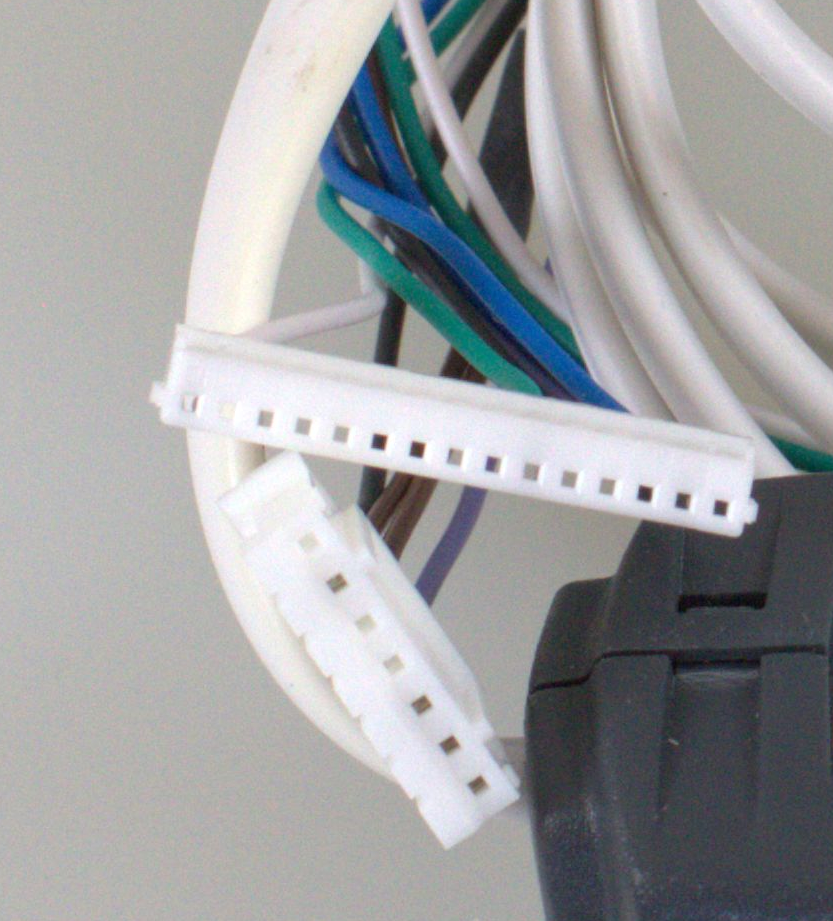

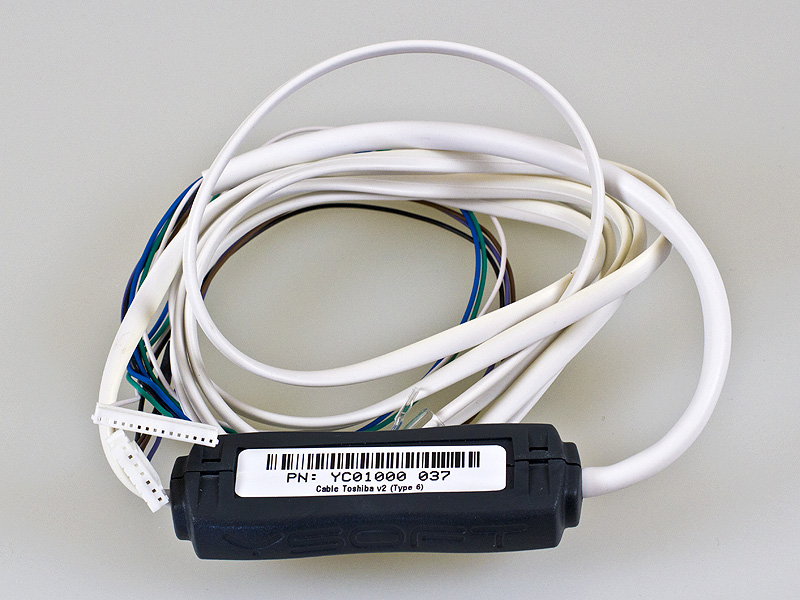

YSQC0-037-0000
Cable Toshiba v2 (Type 6)

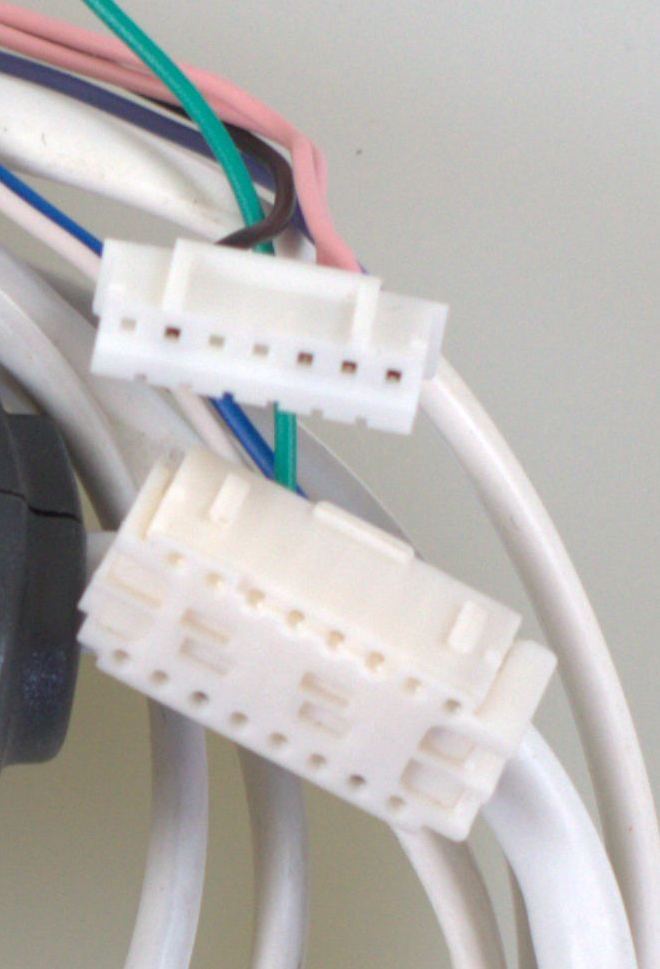

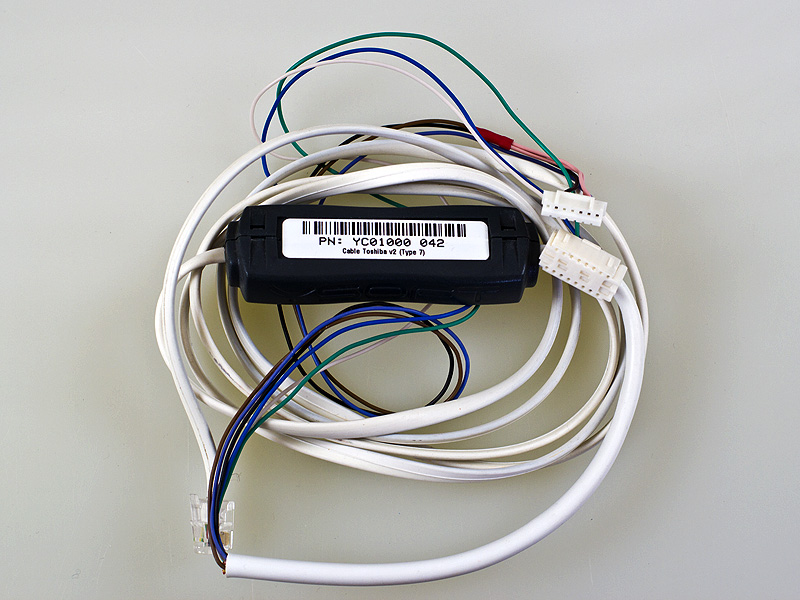

YSQC0-042-0000
Cable Toshiba v2 (Type 7)
YSQC0-056-0000
Cable Toshiba v2 (Type8)
