How to block SHARP devices

Compatible blocking cables

• YSQC0-026-0000 Cable Sharp (Type 3)
• YSQC0-027-0000 Cable Sharp (Type 4)
• YSQC0-029-0000 Cable Sharp (Type 5)

Setting via device service menu

After entering device service menu, following steps have to be performed:

1. Press 26
2. Press Start
3. Press 3
4. Press Start
5. Select outside auditor as VENDOR-EX, vendor mode as MODE3
6. Press Start
7. Press CA

Quit registry settings

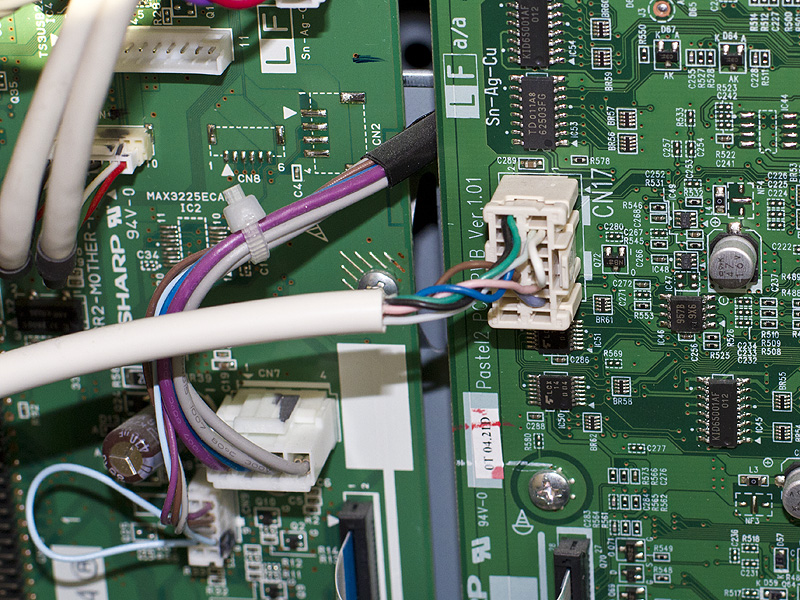

Examples of blocking cable connection:

Sharp MX-2610N

YSQC0-029-0000 Cable Sharp (Type 5)

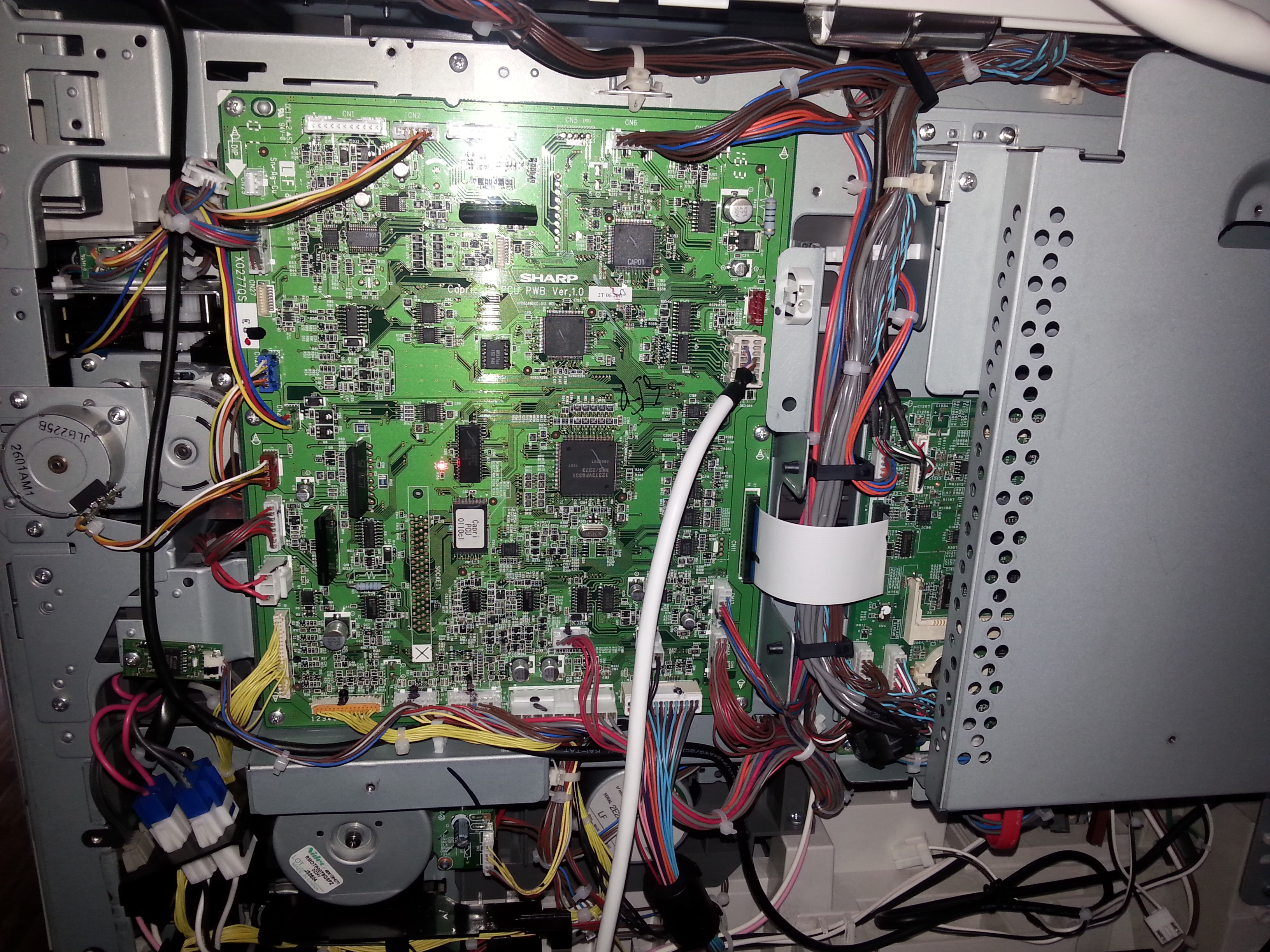

Sharp MX-M264N

YSQC0-058-0000 Cable Sharp v2 (Type 5)

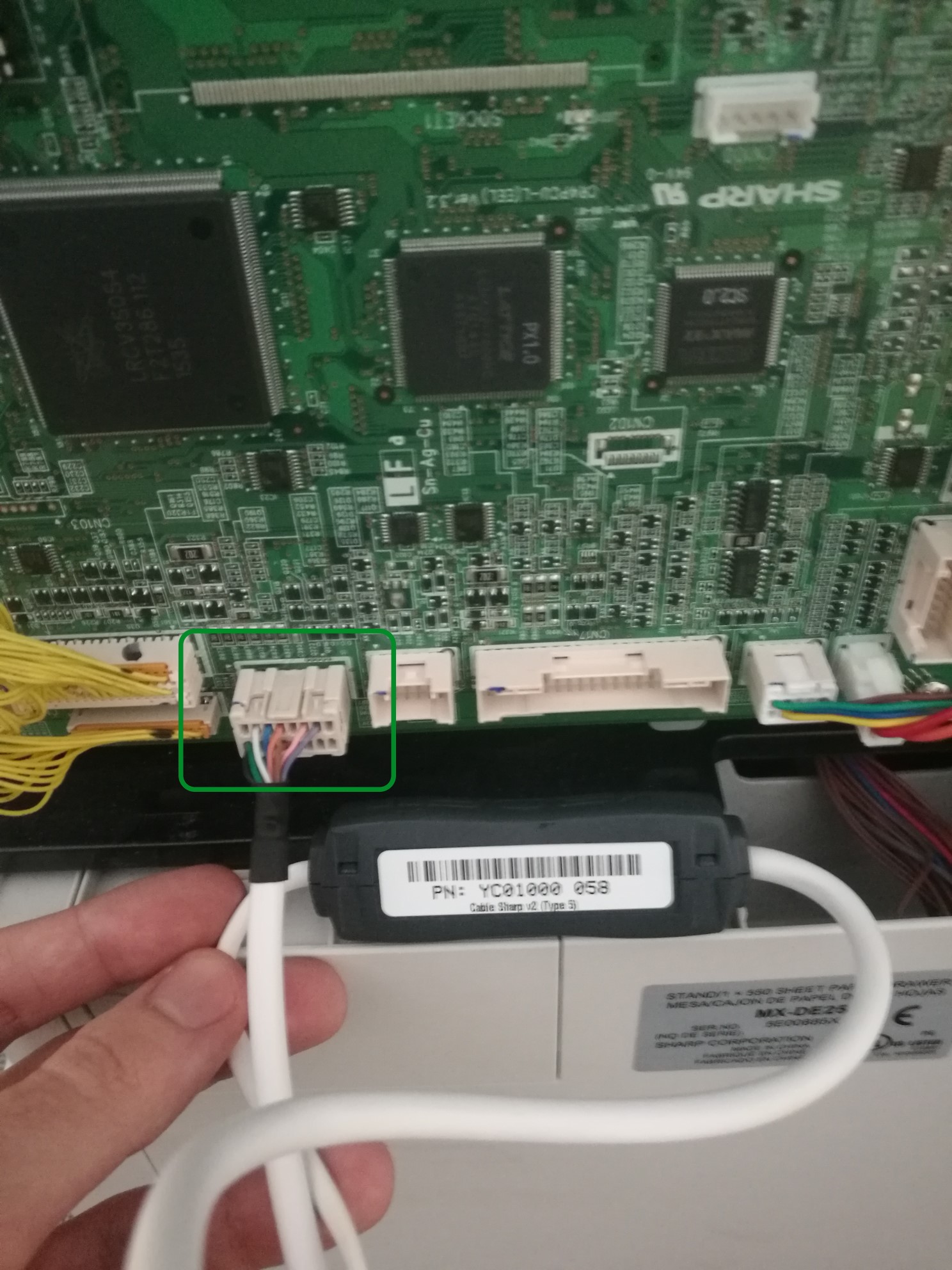

Sharp MX-3060N/3560N/4060N

YSQC0-058-0000 Cable Sharp v2 (Type 5)

Smart Blocking Cables for Hardware Terminals

Required for copy control

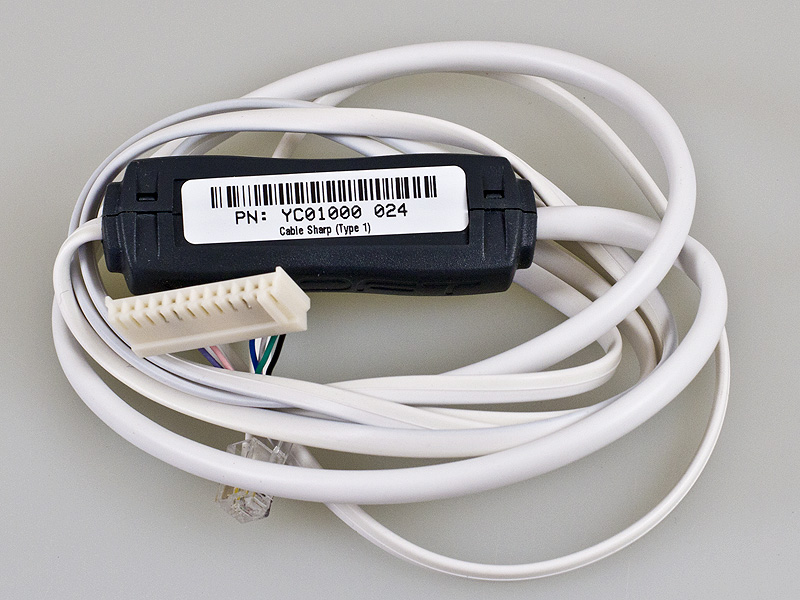

YSQC0-024-0000
Sharp cable type 1

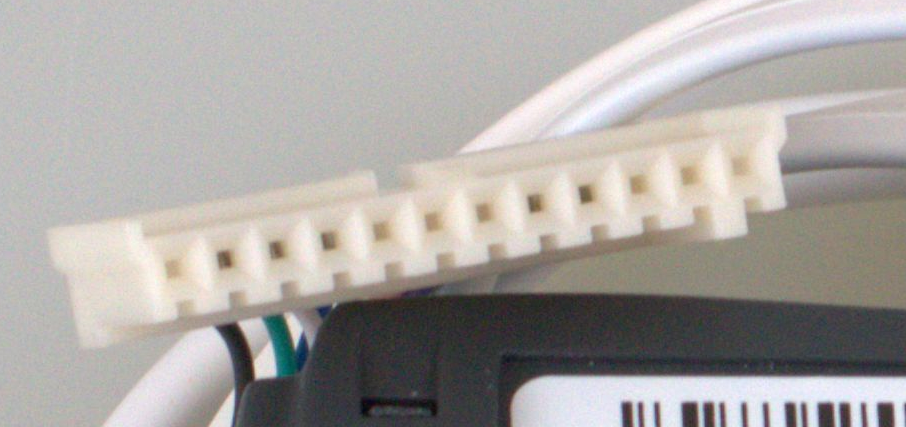

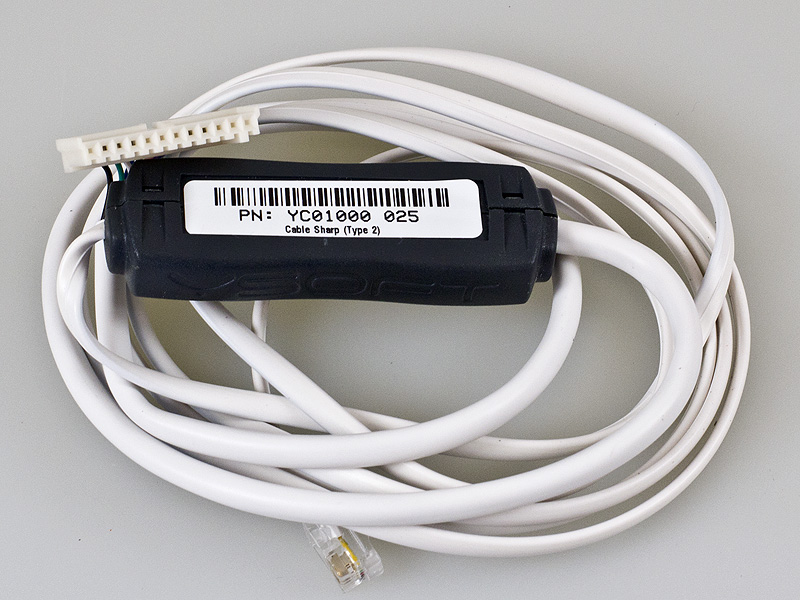

YSQC0-025-0000
Sharp cable type 2

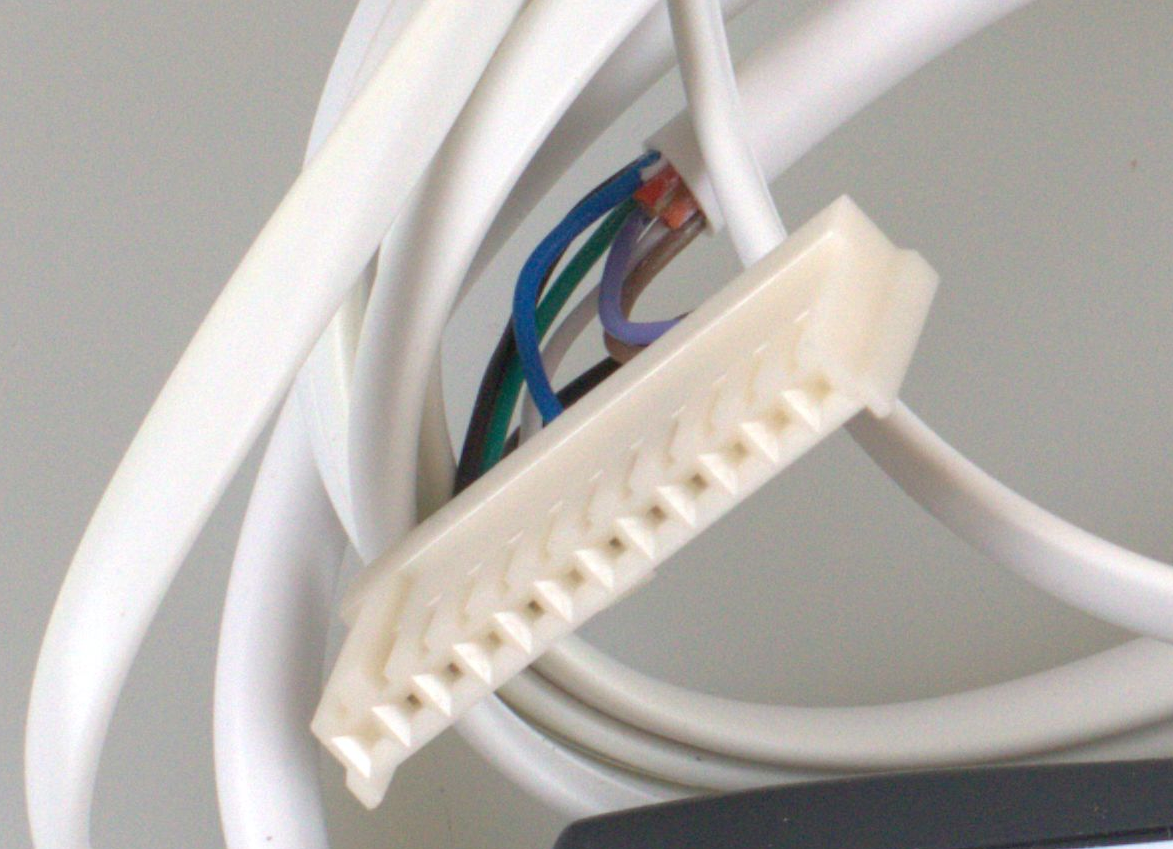

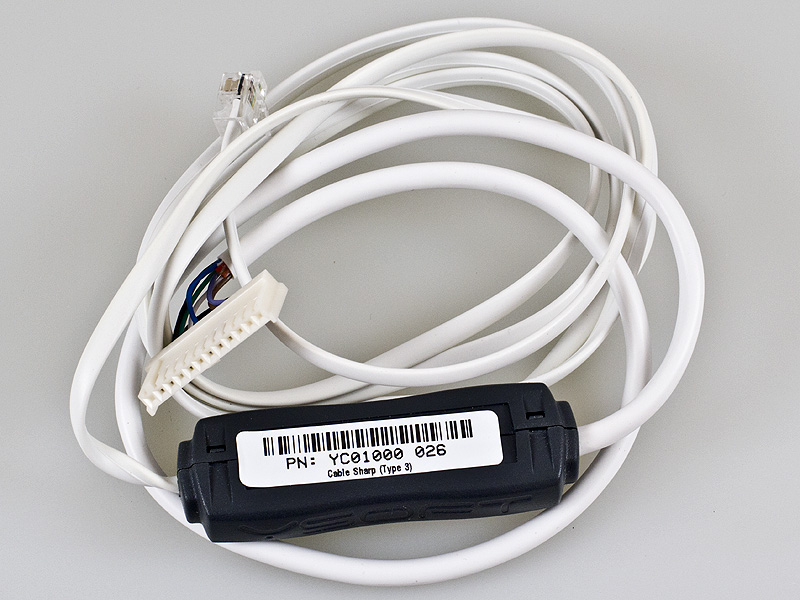

YSQC0-026-0000
Sharp cable type 3

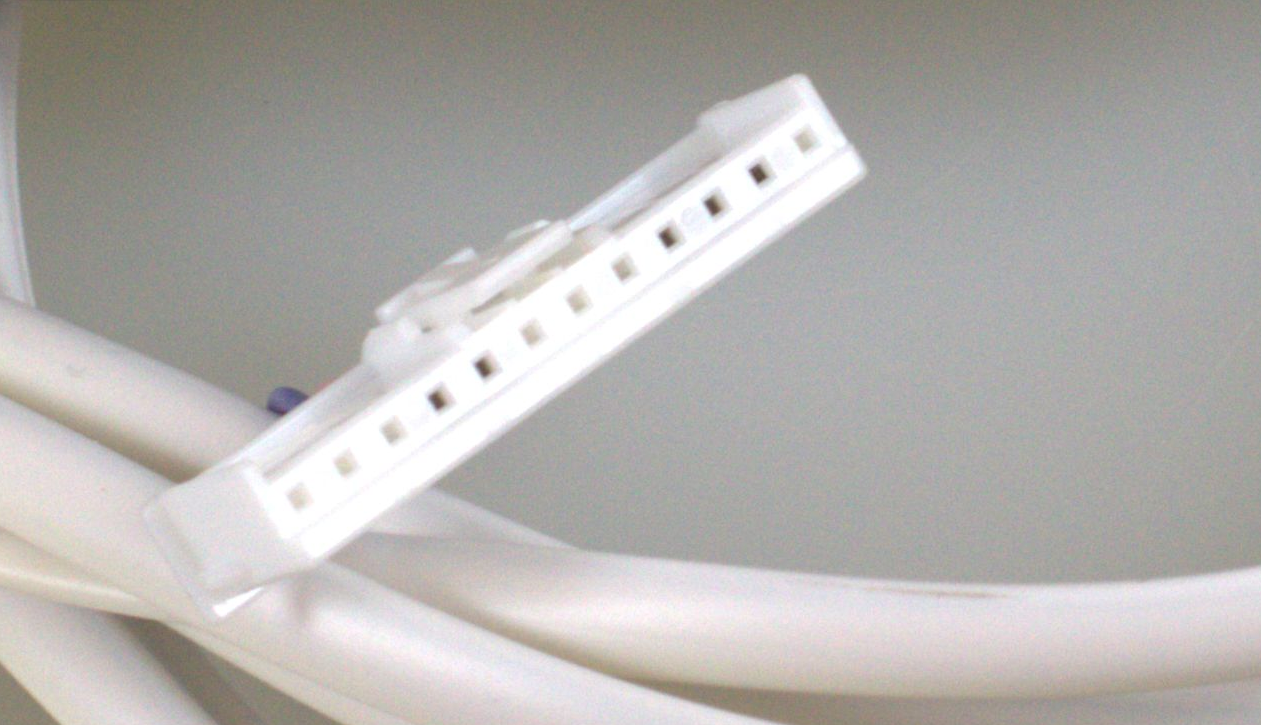

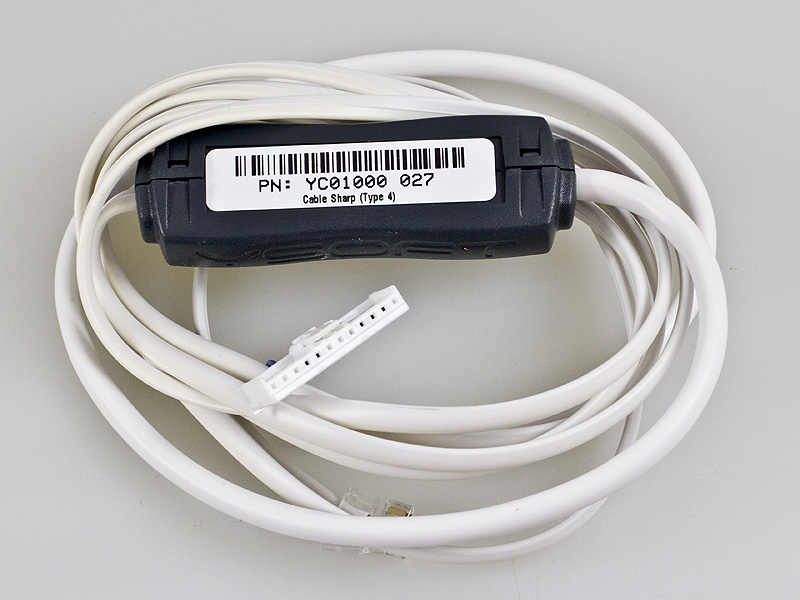

YSQC0-027-0000
Sharp cable type 4

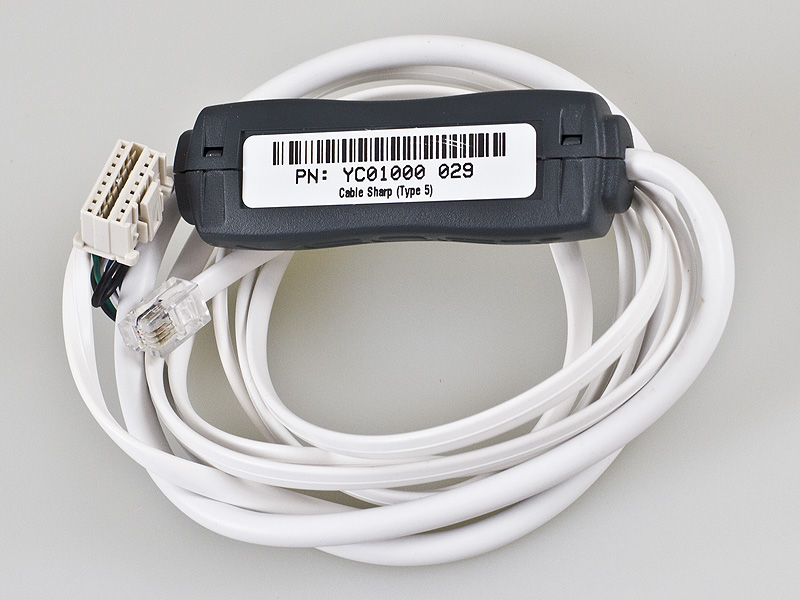

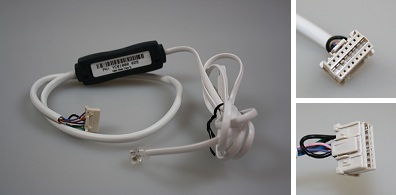

YSQC0-029-0000
Sharp cable type 5
