Xerox WorkCentre 57xx configuration differences

This document has been created base on Xerox WorkCentre 5755 (System FW 061.130.220.35400, Net Controller FW 061.130.32701).

Enabling Network accounting

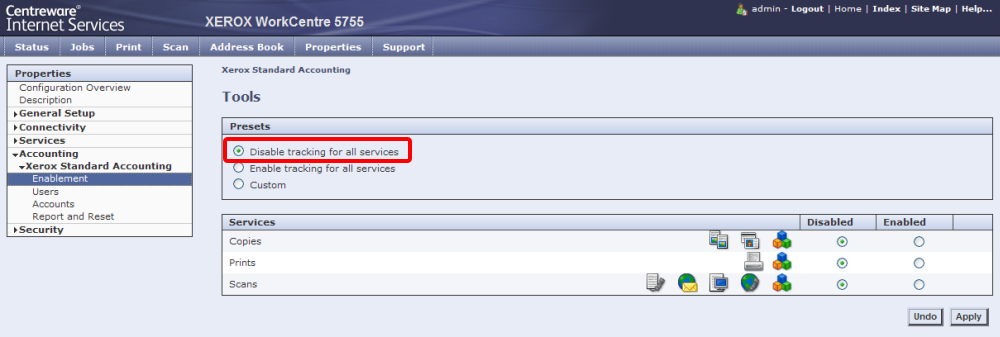

1. Disable Xerox Standard Accounting: Properties > Accounting > Xerox Standard Accounting > Enablement.

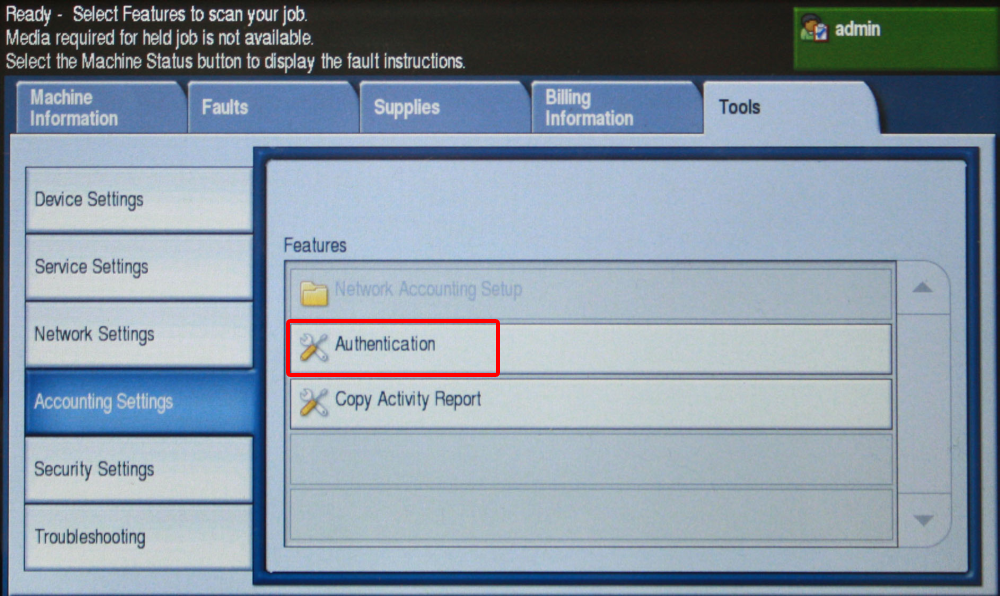

2. Go to Service menu on the embedded terminal Tools > Accounting Settings > Authentication.

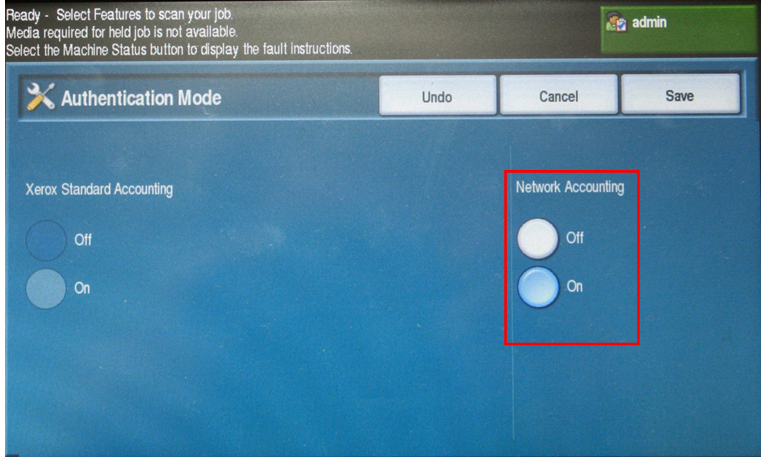

3. Set Network Accounting – on.

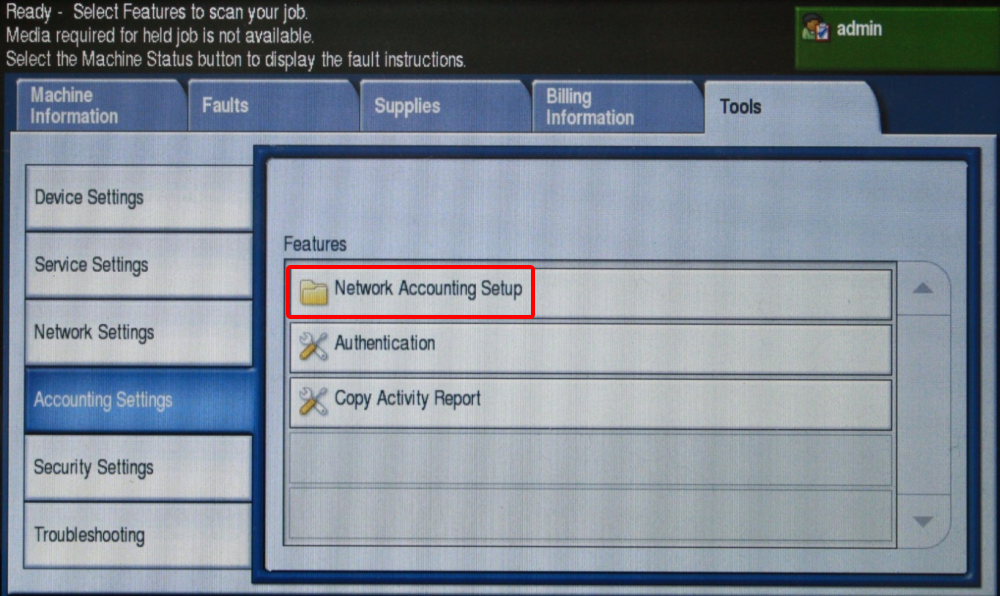

4. Go to the Network Accounting Setup.

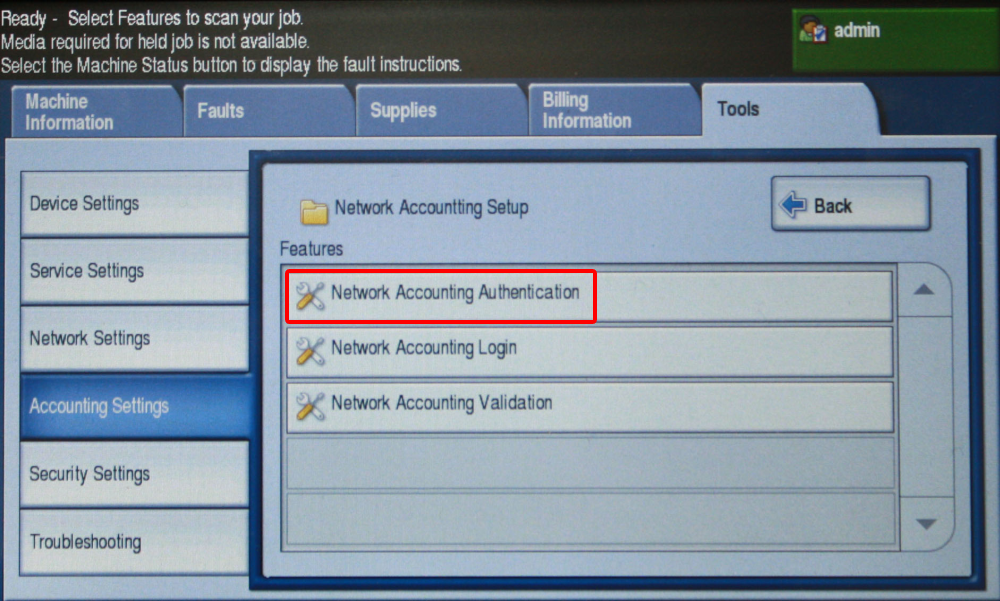

5. Select Network Accounting Authentication.

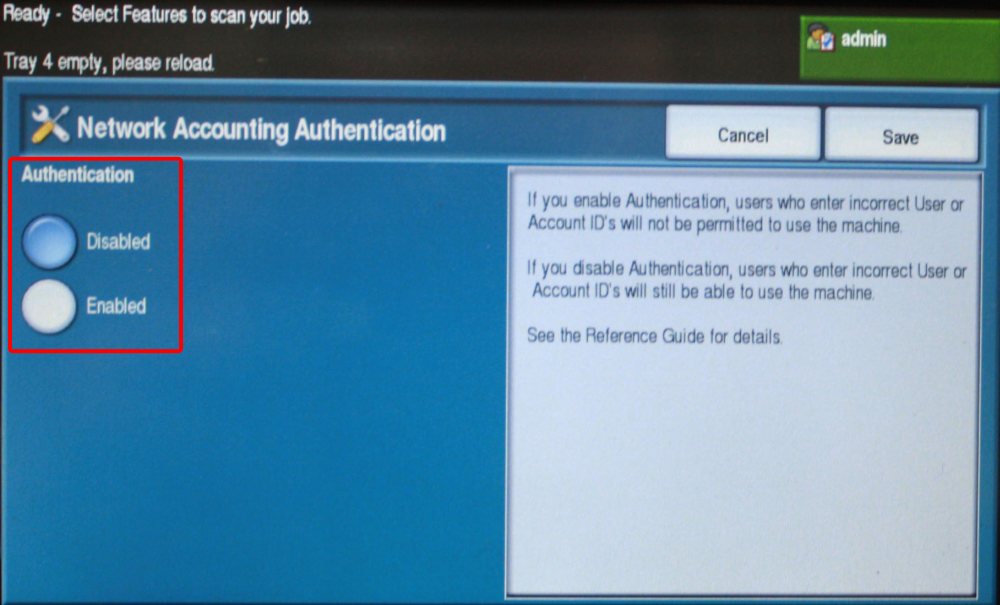

6. Disable Network Accounting Authentication Setup.

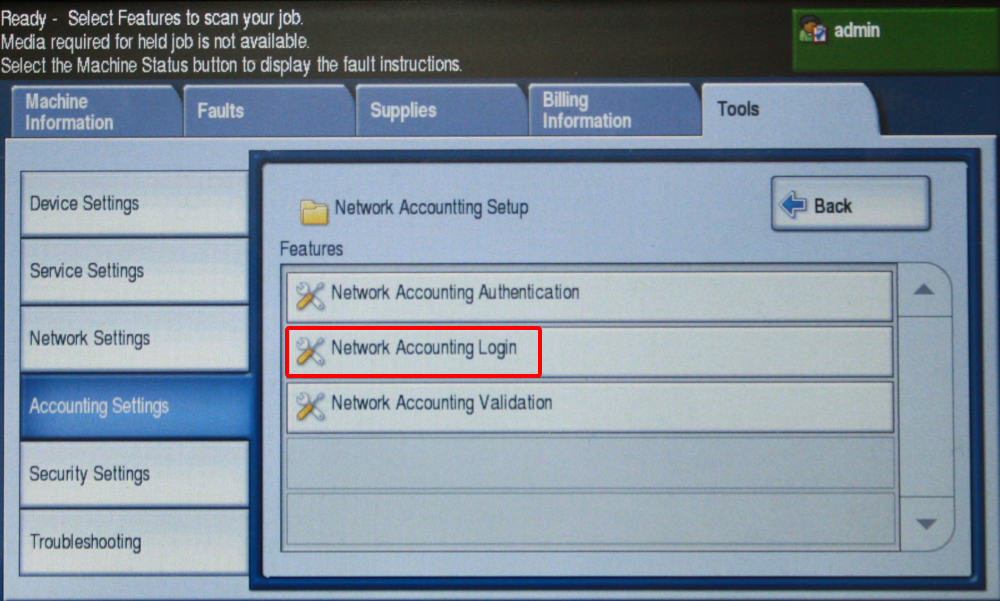

7. Go back and use Network Accounting Login.

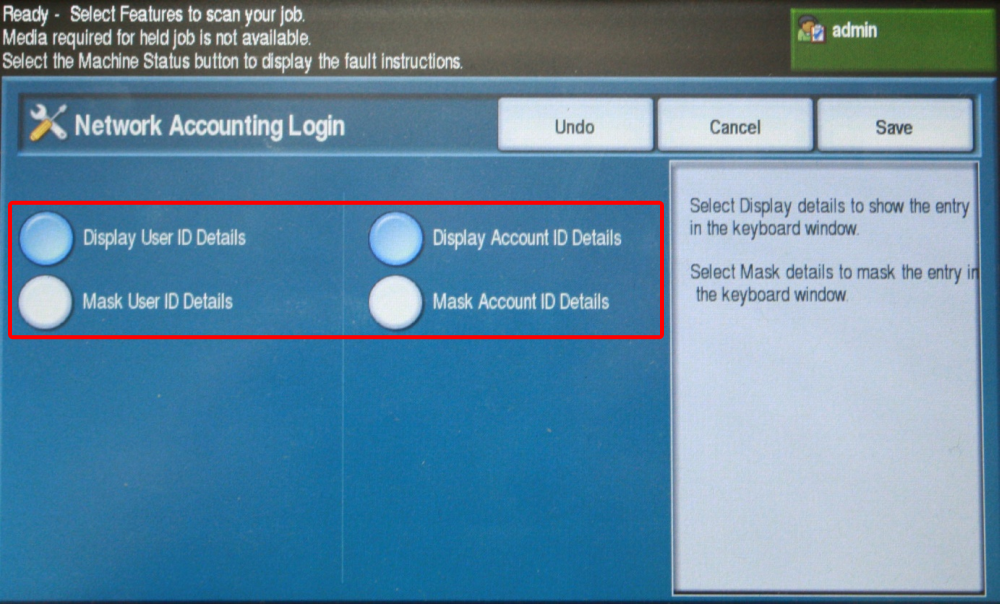

8. Set Network Accounting Login Display Mode to Display User ID Details and Display Account ID Details.
