Scanning at a Konica Minolta Device - 2nd Gen.

This document describes YSoft SafeQ Embedded Terminal for Konica Minolta - 2nd Gen. for scan application. It is an alternative to YSoft SafeQ Embedded Terminal for Konica Minolta - Native.

Workflow scanning

Log in to the embedded terminal.

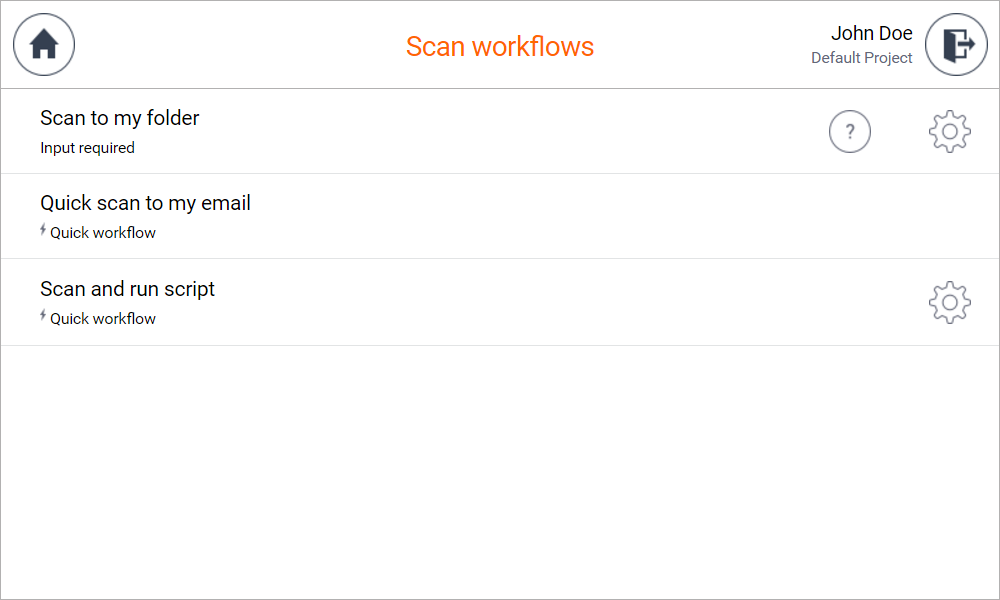

You may be redirected directly to the Scan application. In that case, skip this step.

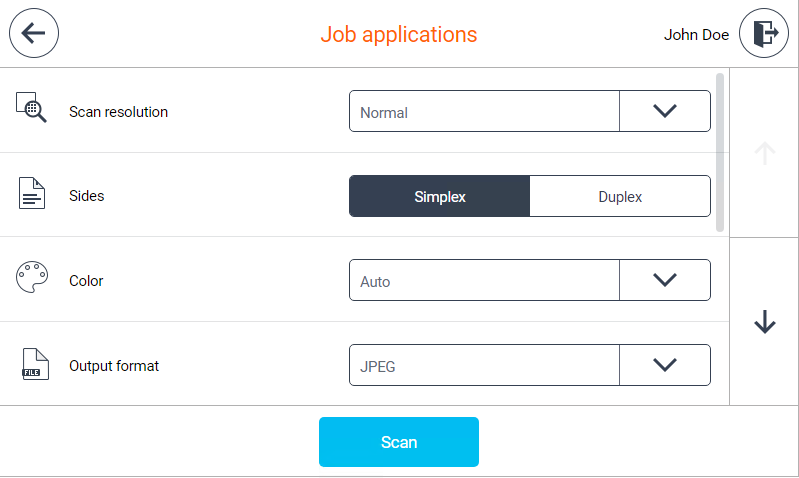

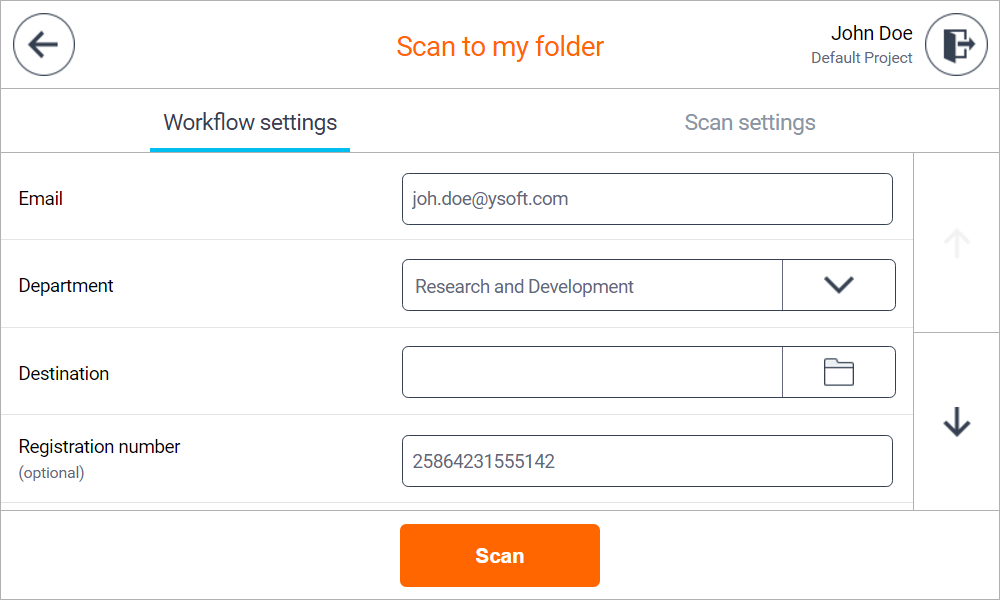

In workflow detail screen, you can enter additional workflow parameters.

The workflow configuration might not allow to configure scan or workflow settings. In that case, the tab is not shown.

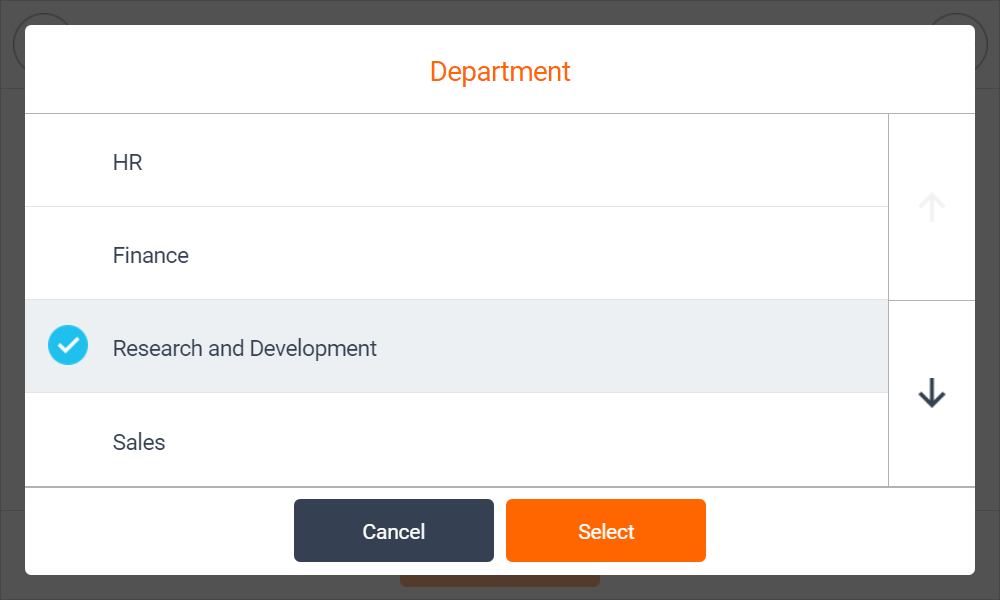

Some of the parameters allow you to browse folders or lists of available options. Tapping such parameter opens a new dialog for value selection.

Email parameters allow you to search for an email address. See this page for details:

When you are ready, tap the Scan button to initialize the scan job.

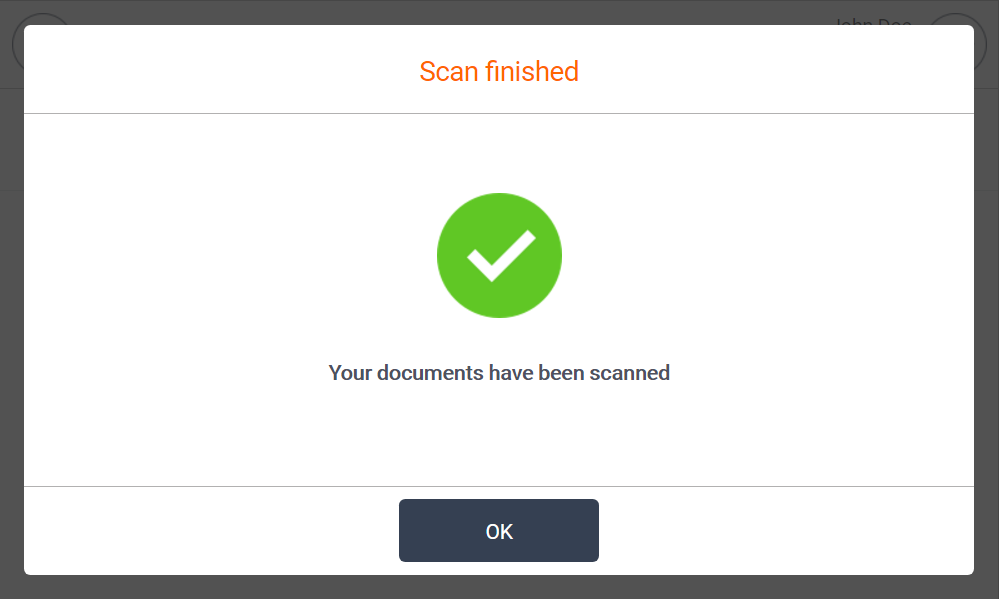

When scanning is finished, you receive information about the result. If the scan completes successfully, a message indicating success is displayed.

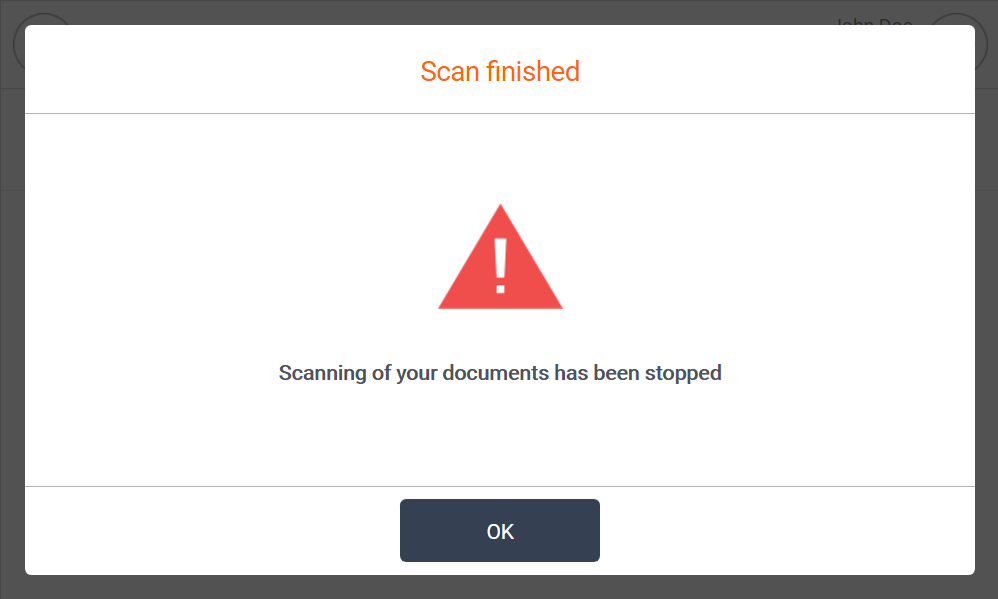

If the scan is interrupted or fails, a message indicating it was stopped is shown.

Note that the scan success message is displayed only when the "Merging Originals" option is enabled.
