Accessing and Logging In at a Ricoh SOP - 2nd Gen.

This document describes YSoft SafeQ Embedded Terminal for a Ricoh SOP - 2nd Gen. for authentication.

Logging in with a PIN

  1. Enter your PIN.

  2. Tap Login.

Logging in with a username/password

  1. Enter your username.

  2. Enter your password.

  3. Tap Login.

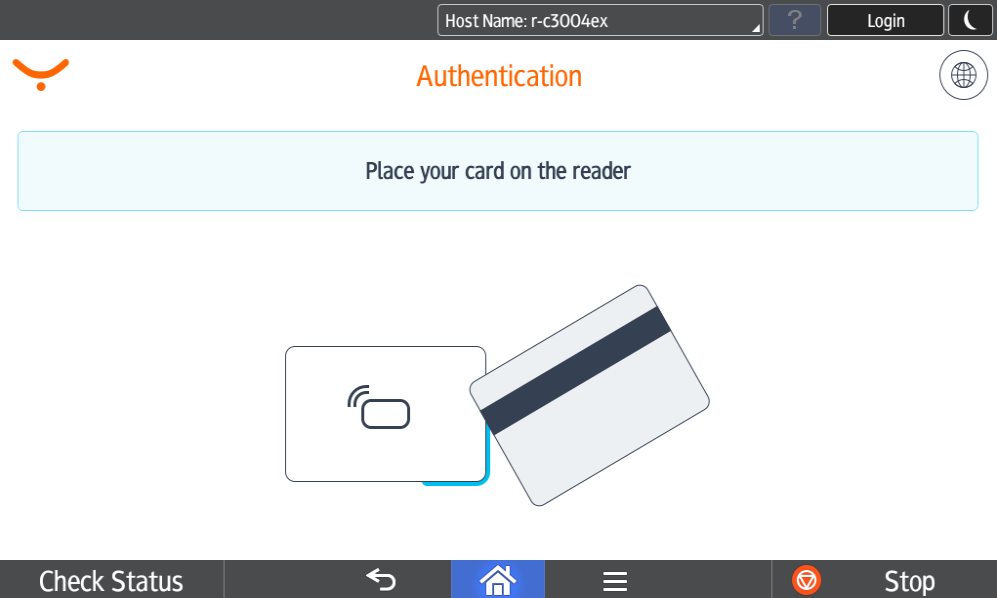

Logging in with a card

  1. Put your card on the reader attached to the printer.


In case that another user is logged in, you will log him/her out by placing your card to the card reader. If you want to log in yourself, place your card once again to the card reader.

Logging in with a card or a PIN

  1. Put your card on the reader attached to the printer or enter your PIN and tap Login.

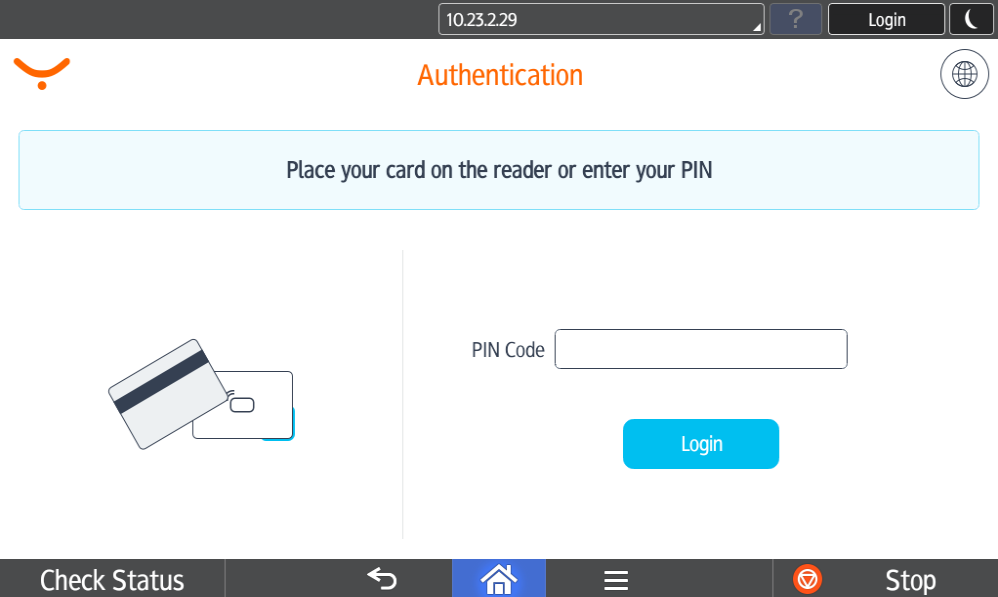

    Card or PIN.PNG

Logging in with a card or a username/password

  1. Put your card on the reader attached to the printer or enter your username/password and tap Login.
    Card or username-password.PNG

Logging in with a card and a PIN

  1. Put your card on the reader attached to the printer.

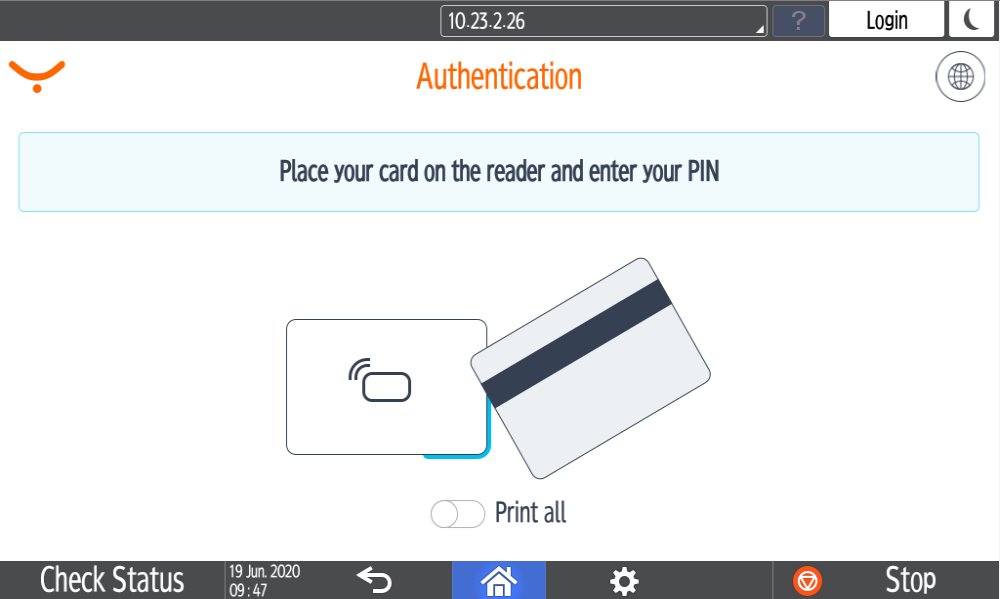

    card and pin 01.PNG

  2. Enter your PIN.

  3. Tap Login.

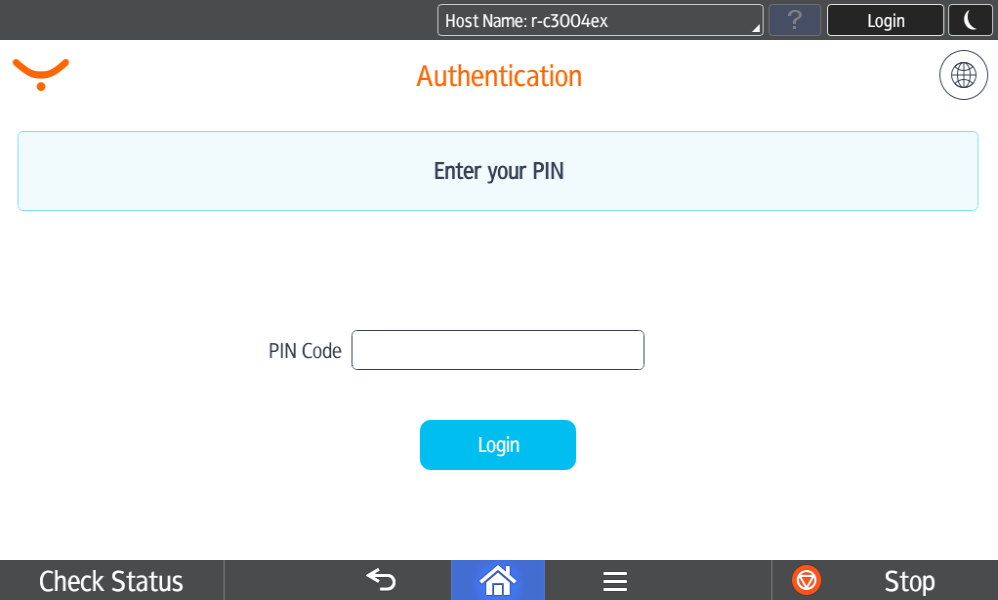

  4. PIN.PNG

Logging in with a card and a username/password

  1. Put your card on the reader attached to the printer.

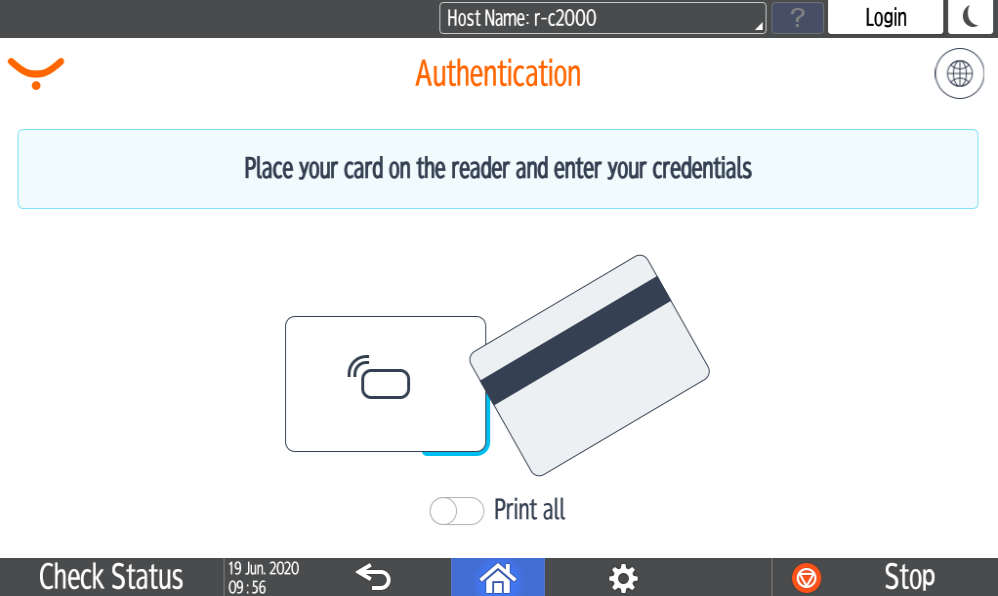

    card and username-password 01.PNG

  2. Enter your username.

  3. Enter your password.

  4. Tap Login.

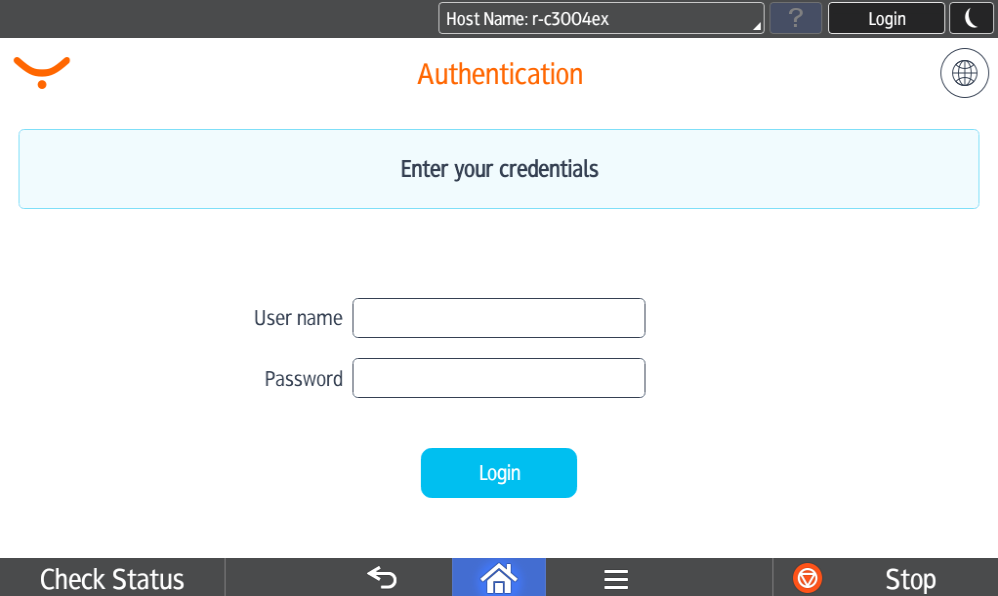

  5. username-password.png

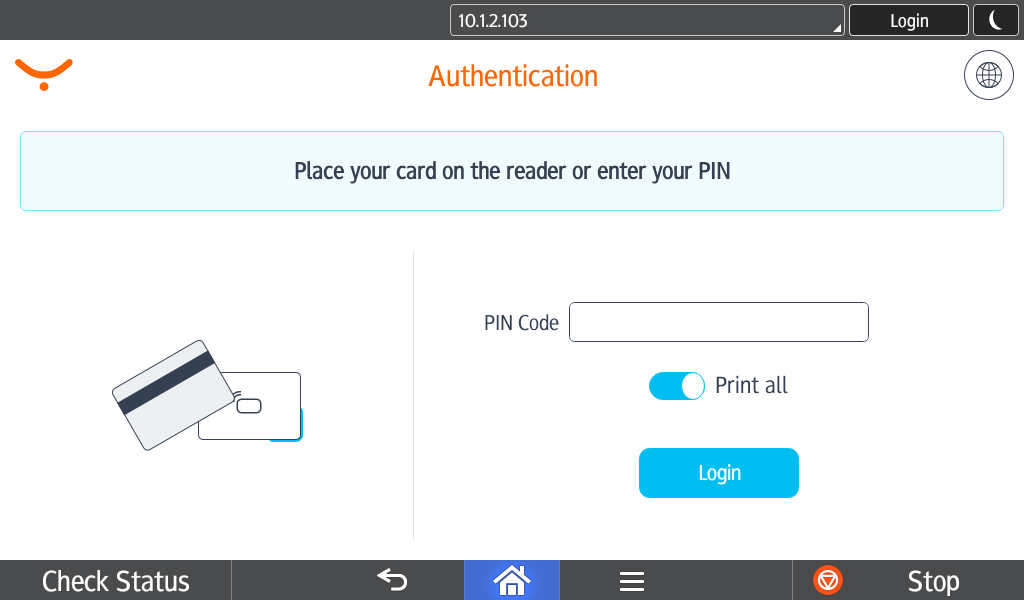

Logging in with print all

  1. You can select to print all compatible waiting jobs immediately after logging in by "Print all" switch.

The "Print all" switch is present only if this option was enabled by your administrator.


Logging out

There are two options for logging out:

  1. To log out, press the Logout button (highlighted) on the upper/right corner of the screen.

    logout button_marked.png



  2. Or put your card on the reader attached to the printer (if the terminal uses authentication by card).

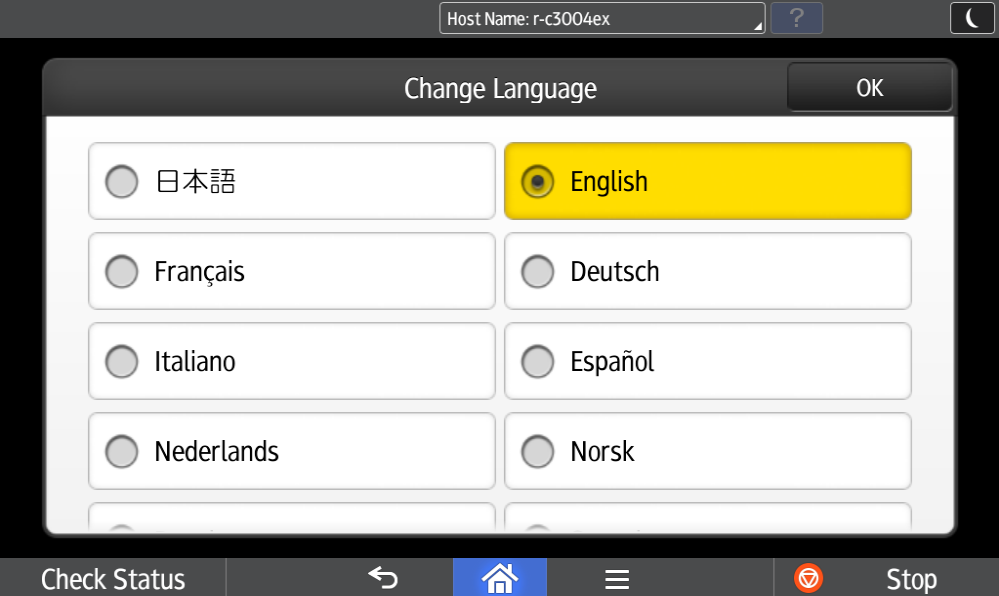

Select Language

  1. Tap the icon  Select_language_button.png and the Select a language dialog is displayed.

  2. Select the language and tap OK.
