Lexmark Terminal

Before you begin, make sure that your gateway is configured according to Secondary Gateway mapping.

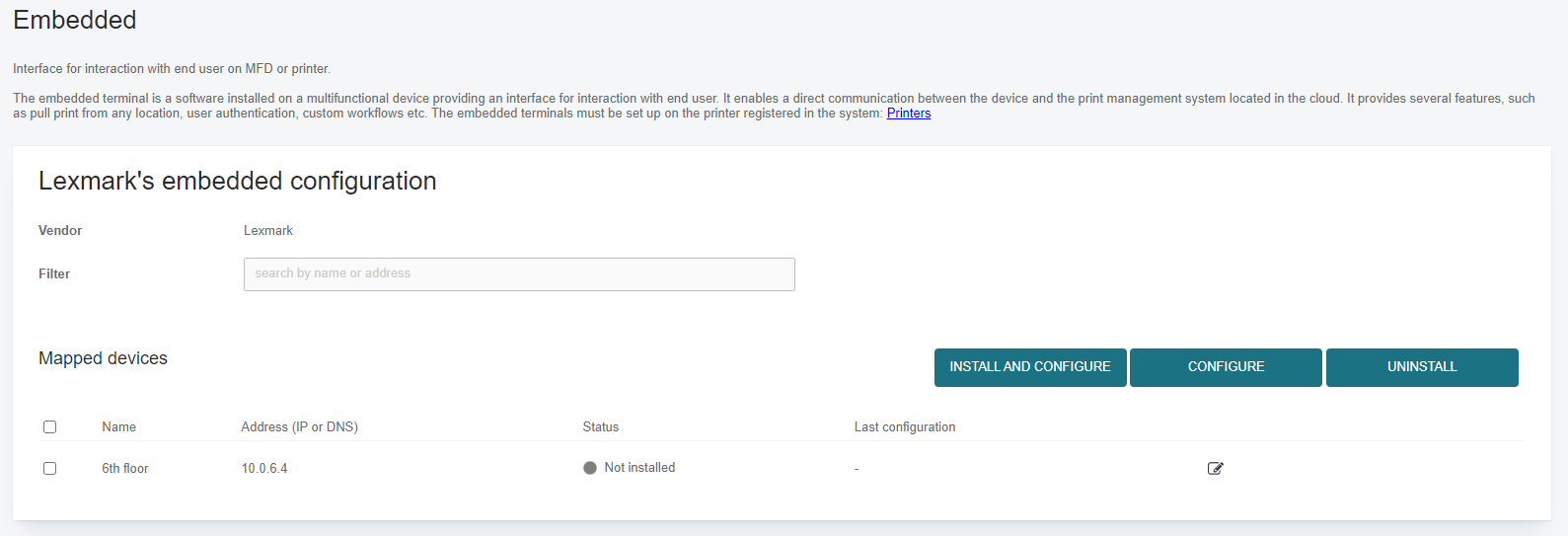

After setting up the printer on the network and configuring in SAFEQ Cloud, push out the Embedded configuration from embedded screen found in SAFEQ Cloud Web UI Printers > Embedded templates tab and clicking deployment action icon.

On some models you need to do a change in “Access Control” for setting the security on the MFD right.

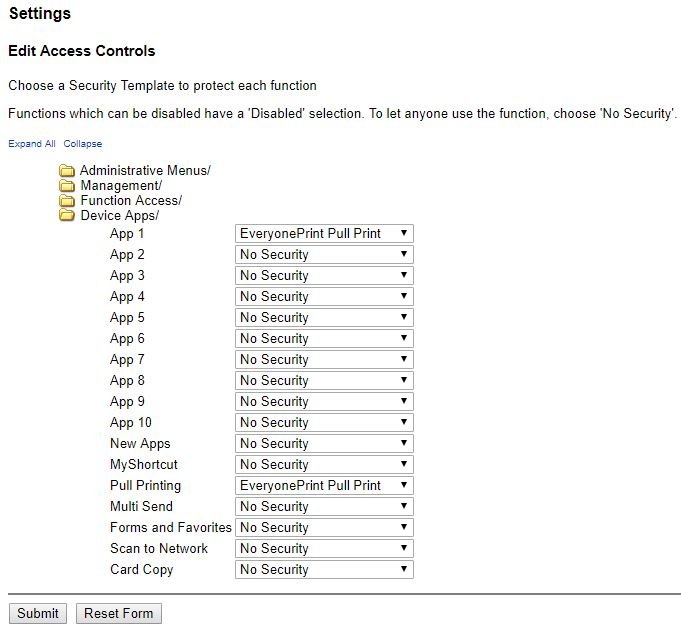

Open MFD´s Web-interface in a browser and navigate through “Settings”, “Security”, “Security Setup”, “Access Controls”.
Expand “Device Apps” and set “Pull Printing” to “Y Soft Pull Print” and hit “Submit”.

On some models you need to do a change in “Security Templates” for setting the security on the MFD right.
Open MFD´s Web-interface in a browser and navigate through “Settings”, “Security”, “Security Setup” and “Security Template”.
Choose “Add a Security Template” and follow the guide to make all four Templates below.

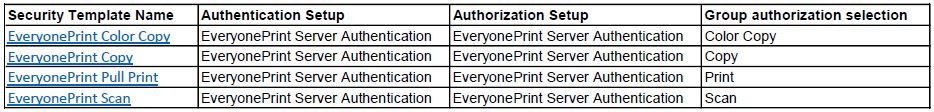

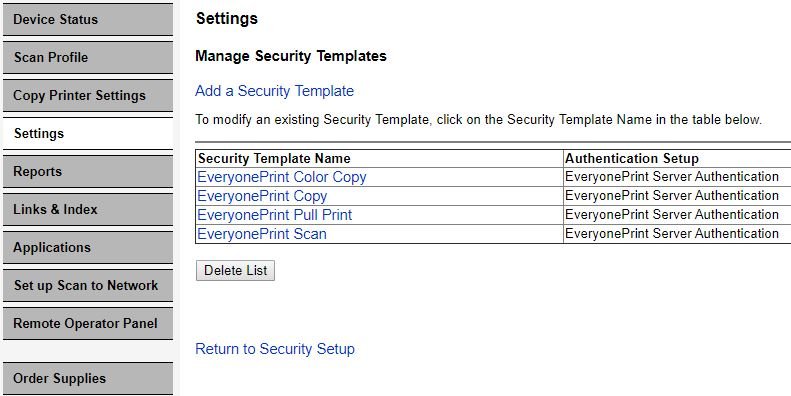

Here you see the configuration for the four Templates.

Security and Access Control on eFS6 models

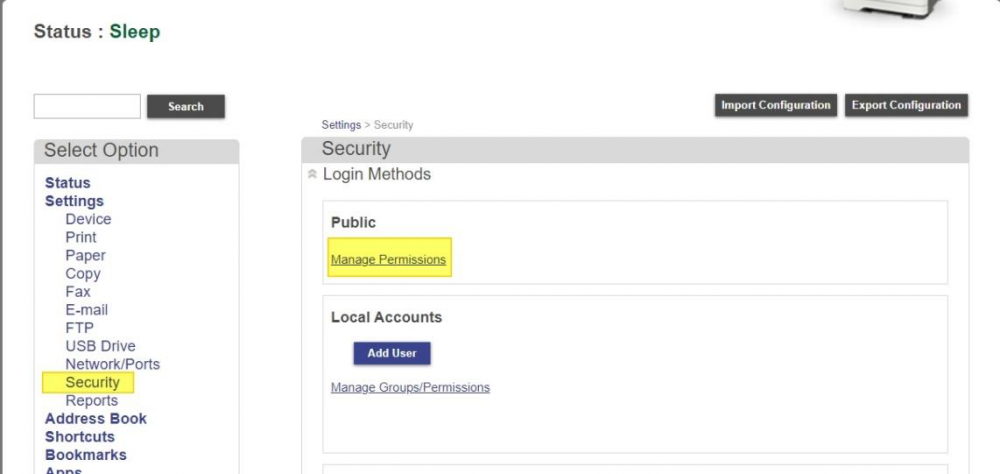

Logon to the device and select Security and Manage Permissions

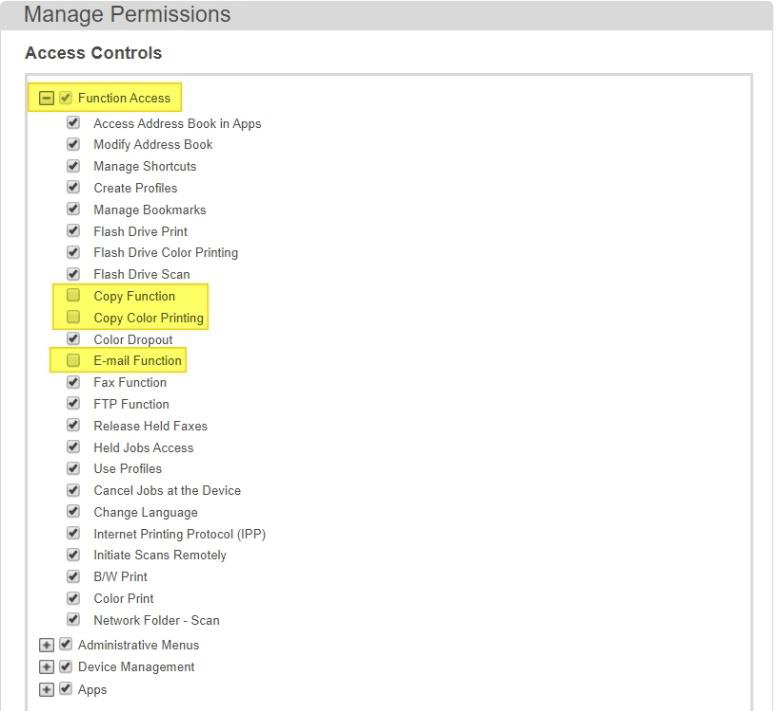

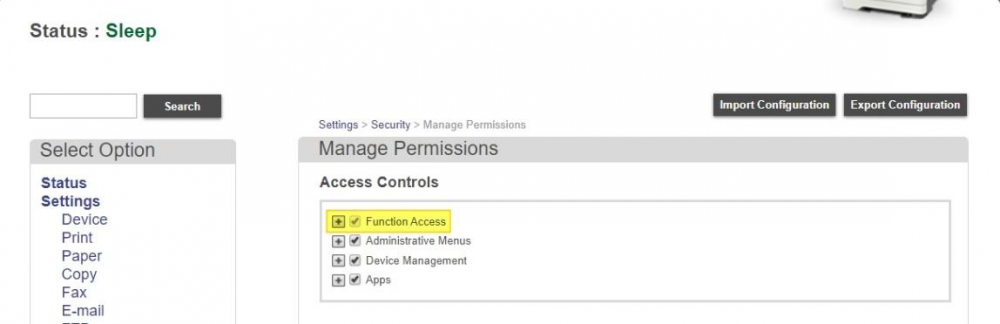

Select Function Access

Deselect Copy Functions, Color Copier Printing and E-mail functions.

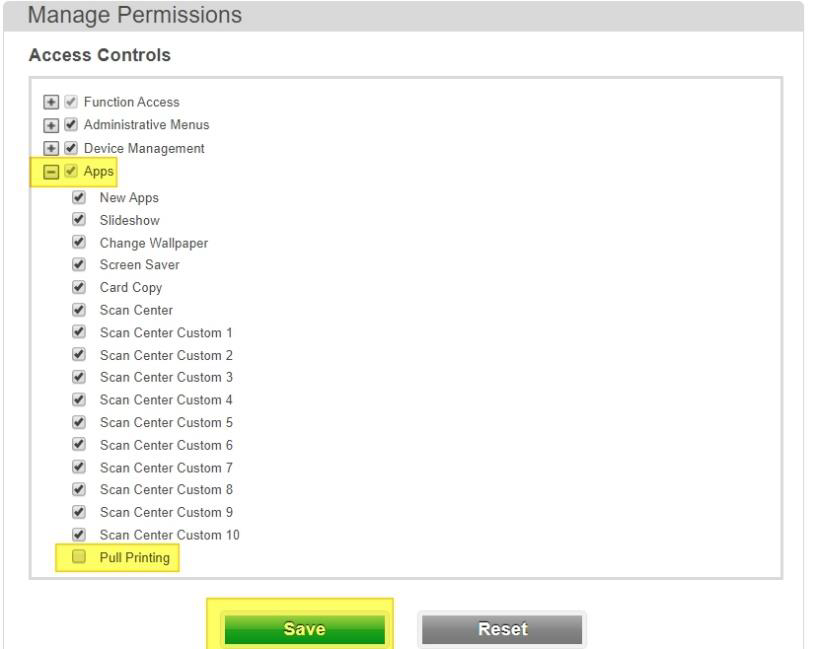

In Apps deselect Pull Printing

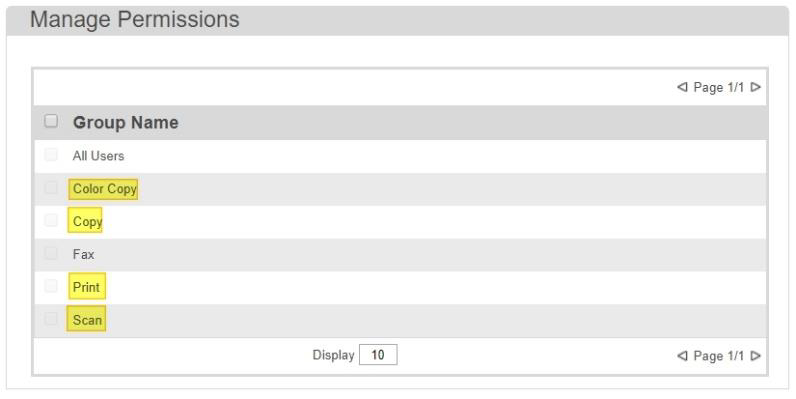

After selecting Save then go to Security and select Manage Permission, located right of the Y Soft Server Authentication

Here you need to modify, if required, the authentication for: Color Copy, Copy, Print and Scan

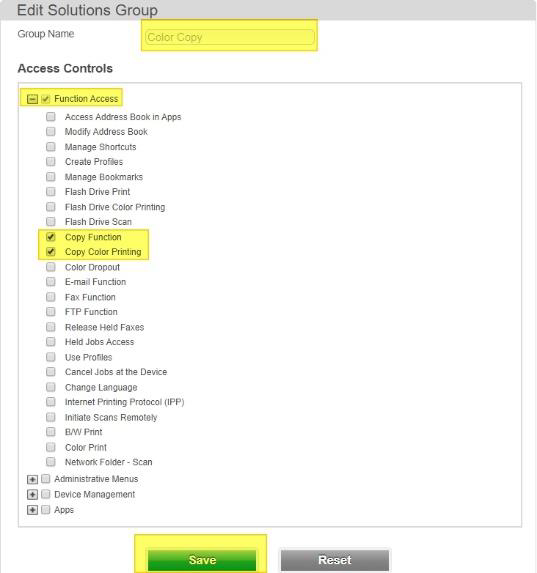

For the Color Copy, select Copy Function and Color copy Printing under Function Access and select Save

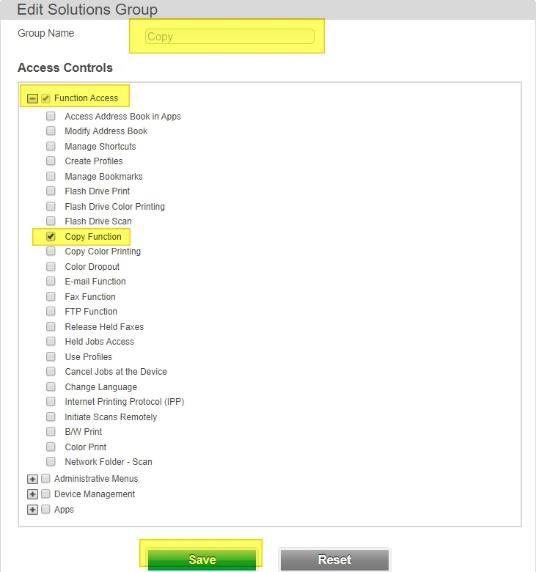

For the Copy, select Copy Function under Function Access and select Save

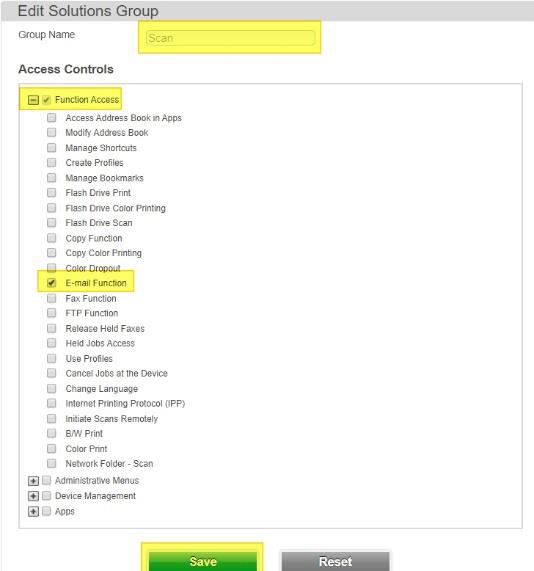

For the Scan, select E-mail Function under Function Access and select Save

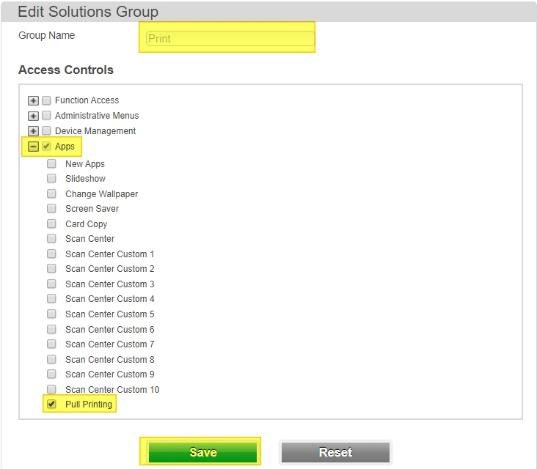

For the Print, select Pull printing under Apps and select Save
